Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

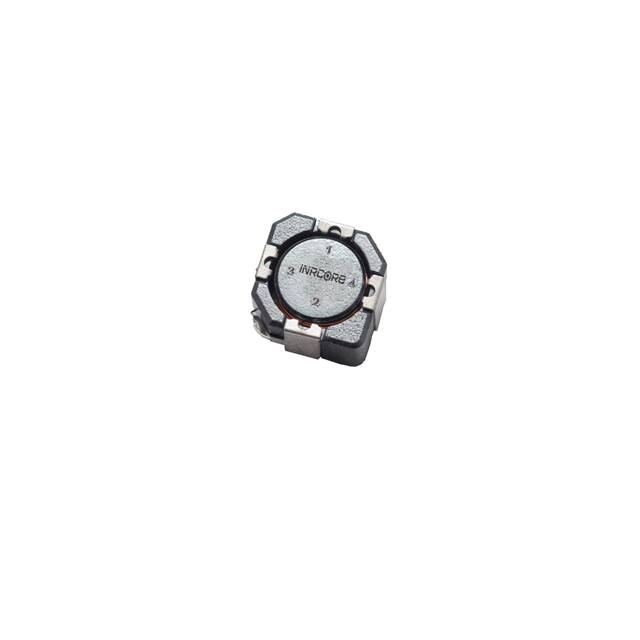

PL9130TFIXED IND 680UH 570MA 1.2OHM SMD |
1,193 | 8.78 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 570 mA | 570mA | Shielded | 1.2Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9131TFIXED IND 820UH 520MA 1.55OHM SM |
1,712 | 8.78 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 520 mA | 520mA | Shielded | 1.55Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
IHB3EB5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH |
3,984 | 8.64 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3EB8R2MFIXED IND 8.2UH 17.6A 4 MOHM TH |
1,783 | 8.64 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 8.2 µH | ±20% | 17.6 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
S1812-101FFIXED IND 100NH 1.49A 90MOHM SMD |
3,965 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±1% | 1.49 A | - | Shielded | 90mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-121FFIXED IND 120NH 1.412A 100 MOHM |
1,474 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±1% | 1.412 A | - | Shielded | 100mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-151FFIXED IND 150NH 1.347A 110 MOHM |
2,477 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±1% | 1.347 A | - | Shielded | 110mOhm Max | 50 @ 25MHz | 390MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-181FFIXED IND 180NH 1.29A 120MOHM SM |
2,963 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±1% | 1.29 A | - | Shielded | 120mOhm Max | 50 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-221FFIXED IND 220NH 1.154A 150 MOHM |
2,383 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±1% | 1.154 A | - | Shielded | 150mOhm Max | 50 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-271FFIXED IND 270NH 1.053A 180 MOHM |
2,026 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±1% | 1.053 A | - | Shielded | 180mOhm Max | 50 @ 25MHz | 280MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-331FFIXED IND 330NH 952MA 220MOHM SM |
1,983 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±1% | 952 mA | - | Shielded | 220mOhm Max | 40 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-391FFIXED IND 390NH 876MA 260MOHM SM |
2,838 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±1% | 876 mA | - | Shielded | 260mOhm Max | 40 @ 25MHz | 215MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-471FFIXED IND 470NH 802MA 310MOHM SM |
3,241 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±1% | 802 mA | - | Shielded | 310mOhm Max | 40 @ 25MHz | 205MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-561FFIXED IND 560NH 735MA 370MOHM SM |
2,691 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±1% | 735 mA | - | Shielded | 370mOhm Max | 40 @ 25MHz | 185MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-681FFIXED IND 680NH 675MA 440MOHM SM |
2,733 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±1% | 675 mA | - | Shielded | 440mOhm Max | 40 @ 25MHz | 166MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-821FFIXED IND 820NH 614MA 530MOHM SM |
4,594 | 8.11 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±1% | 614 mA | - | Shielded | 530mOhm Max | 40 @ 25MHz | 155MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-101FFIXED IND 100NH 1.49A 90MOHM SMD |
1,768 | 8.11 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±1% | 1.49 A | - | Shielded | 90mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-121FFIXED IND 120NH 1.412A 100 MOHM |
2,062 | 8.11 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±1% | 1.412 A | - | Shielded | 100mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-151FFIXED IND 150NH 1.347A 110 MOHM |
4,006 | 8.11 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±1% | 1.347 A | - | Shielded | 110mOhm Max | 50 @ 25MHz | 390MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-181FFIXED IND 180NH 1.29A 120MOHM SM |
4,846 | 8.11 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±1% | 1.29 A | - | Shielded | 120mOhm Max | 50 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
