Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2150-26FFIXED IND 12UH 560MA 450 MOHM TH |
2,827 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 12 µH | ±1% | 560 mA | - | Unshielded | 450mOhm Max | 45 @ 2.5MHz | 34MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-28FFIXED IND 15UH 520MA 520 MOHM TH |
3,930 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±1% | 520 mA | - | Unshielded | 520mOhm Max | 45 @ 2.5MHz | 32MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-30FFIXED IND 18UH 445MA 700 MOHM TH |
2,170 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±1% | 445 mA | - | Unshielded | 700mOhm Max | 50 @ 2.5MHz | 28MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-32FFIXED IND 22UH 375MA 1 OHM TH |
2,063 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±1% | 375 mA | - | Unshielded | 1Ohm Max | 60 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-34FFIXED IND 27UH 330MA 1.3 OHM TH |
2,803 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±1% | 330 mA | - | Unshielded | 1.3Ohm Max | 60 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-36FFIXED IND 33UH 305MA 1.5 OHM TH |
2,827 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±1% | 305 mA | - | Unshielded | 1.5Ohm Max | 60 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-38FFIXED IND 39UH 264MA 2 OHM TH |
4,727 | 7.37 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±1% | 264 mA | - | Unshielded | 2Ohm Max | 70 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
PL8706FIXED IND 27.4UH 4.2A 38.15 MOHM |
2,154 | 8.98 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8706NLFIXED IND 27.4UH 4.2A 38.15 MOHM |
3,590 | 8.98 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8707FIXED IND 40.5UH 3.3A 53.21 MOHM |
2,487 | 8.98 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8707NLFIXED IND 40.5UH 3.3A 53.21 MOHM |
4,667 | 8.98 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|

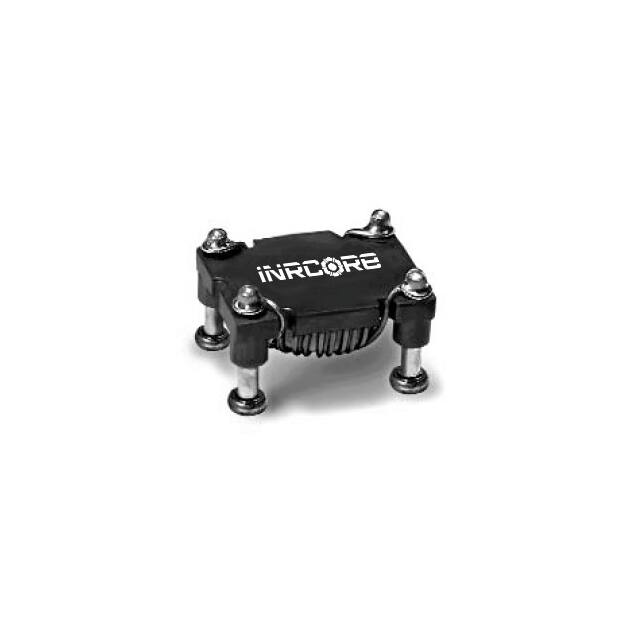

PL8708FIXED IND 50.5UH 2.3A 73.89 MOHM |
2,873 | 8.98 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8708NLFIXED IND 50.5UH 2.3A 73.89 MOHM |
3,367 | 8.98 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
HTPT66R-391KFIXED IND 390NH 18.3A 2 MOHM TH |
3,215 | 8.23 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 390 nH | ±10% | 18.3 A | 26.6A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66R-122KFIXED IND 1.2UH 15.3A 2.9MOHM TH |
4,976 | 8.23 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 1.2 µH | ±10% | 15.3 A | 14.8A | Shielded | 2.9mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66R-152KFIXED IND 1.5UH 13.7A 3.6MOHM TH |
2,233 | 8.23 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 1.5 µH | ±10% | 13.7 A | 13.3A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66R-472KFIXED IND 4.7UH 8.8A 8.6 MOHM TH |
3,237 | 8.23 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 4.7 µH | ±10% | 8.8 A | 7.4A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66-122KFIXED IND 1.2UH 15.3A 2.9MOHM TH |
4,489 | 8.23 |
|
Datasheet |
HTPT66 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 1.2 µH | ±10% | 15.3 A | 14.8A | Shielded | 2.9mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66-152KFIXED IND 1.5UH 13.7A 3.6MOHM TH |
3,733 | 8.23 |
|
Datasheet |
HTPT66 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 1.5 µH | ±10% | 13.7 A | 13.3A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66-391KFIXED IND 390NH 18.3A 2 MOHM TH |
4,198 | 8.23 |
|
Datasheet |
HTPT66 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 390 nH | ±10% | 18.3 A | 26.6A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
