Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1812R-823FFIXED IND 82UH 196MA 5.2 OHM SMD |
1,134 | 8.57 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±1% | 196 mA | - | Shielded | 5.2Ohm Max | 50 @ 2.5MHz | 7.2MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812R-824FFIXED IND 820UH 71MA 40 OHM SMD |
2,692 | 8.57 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±1% | 71 mA | - | Shielded | 40Ohm Max | 40 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
PL8700FIXED IND 2.2UH 14.4A 4.41 MOHM |
1,060 | 9.05 |
|
Datasheet |
POGO | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±20% | 14.4 A | - | Unshielded | 4.41mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8700NLFIXED IND 2.2UH 14.4A 4.41 MOHM |
4,224 | 9.05 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±20% | 14.4 A | - | Unshielded | 4.41mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
26HF1003HLFHORIZONTAL TOROIDAL INDUCTOR |
4,939 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 1 A | 920mA | Unshielded | 250mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
26HF1003VVERTICAL TOROIDAL INDUCTOR |
3,025 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 1 A | 920mA | Unshielded | 250mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
26HF1003HHORIZONTAL TOROIDAL INDUCTOR |
3,309 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 1 A | 920mA | Unshielded | 250mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
SMP5057-106KMOLDED UNSHIELDED INDUCTOR |
2,470 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 100 mH | ±10% | 90 mA | 170mA | Unshielded | 76Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|

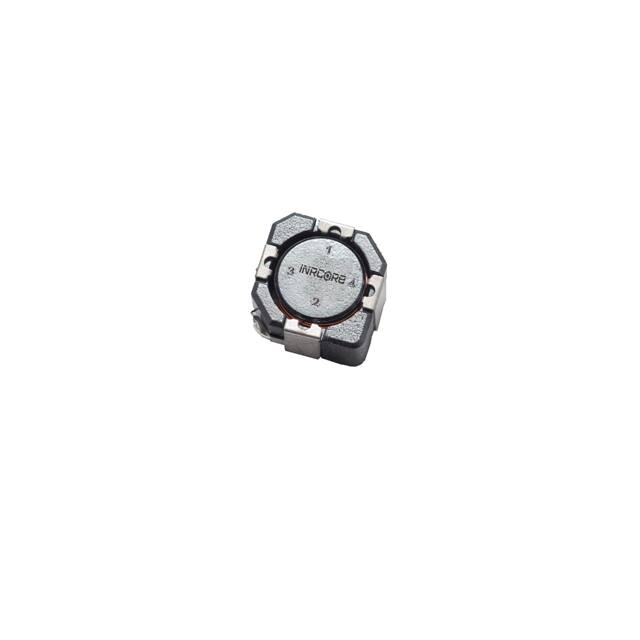

PL8915TFIXED IND 39UH 2.7A 81.5MOHM SMD |
1,422 | 8.82 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.7 A | 2.8A | Shielded | 81.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PT100-1000FIXED IND 100UH 3.5A 80 MOHM TH |
2,701 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 3.5 A | - | Shielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 0.360" W (25.40mm x 9.14mm) | - |
|
|
PT100-1100FIXED IND 100UH 5.1A 50 MOHM TH |
4,242 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 5.1 A | - | Shielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.500" W (27.94mm x 12.70mm) | - |
|
|
PT100-1260FIXED IND 100UH 7.8A 35 MOHM TH |
4,104 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 7.8 A | - | Shielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.260" Dia x 0.600" W (32.00mm x 15.24mm) | - |
|
|
PT100-1550FIXED IND 100UH 10.3A 28 MOHM TH |
2,796 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 10.3 A | - | Shielded | 28mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.550" Dia x 0.640" W (39.37mm x 16.26mm) | - |
|
|
PT1000-1400FIXED IND 1MH 1.8A 620 MOHM TH |
4,668 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 1.8 A | - | Shielded | 620mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.400" Dia x 0.550" W (35.56mm x 13.97mm) | - |
|
|
PT1000-1750FIXED IND 1MH 3.1A 420 MOHM TH |
1,955 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 3.1 A | - | Shielded | 420mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" Dia x 0.700" W (44.45mm x 17.78mm) | - |
|
|
PT1000-2050FIXED IND 1MH 5.9A 200 MOHM TH |
2,769 | 8.36 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 5.9 A | - | Shielded | 200mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 2.050" Dia x 0.850" W (52.07mm x 21.59mm) | - |
|
|
PT1000R-1400FIXED IND 1MH 1.8A 620 MOHM TH |
2,980 | 8.36 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.8 A | - | Unshielded | 620mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.400" Dia x 0.550" W (35.56mm x 13.97mm) | - |
|
|
PT1000R-1750FIXED IND 1MH 3.1A 420 MOHM TH |
1,593 | 8.36 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 3.1 A | - | Unshielded | 420mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" Dia x 0.700" W (44.45mm x 17.78mm) | - |
|
|
PT1000R-2050FIXED IND 1MH 5.9A 200 MOHM TH |
2,025 | 8.36 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 5.9 A | - | Unshielded | 200mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 2.050" Dia x 0.850" W (52.07mm x 21.59mm) | - |
|
|
PT100R-1000FIXED IND 100UH 3.5A 80 MOHM TH |
4,346 | 8.36 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 3.5 A | - | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 0.360" W (25.40mm x 9.14mm) | - |
