Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8532R-48HFIXED IND 8.2MH 130MA 20.8OHM SM |
2,666 | 9.42 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 8.2 mH | ±3% | 130 mA | 70mA | Unshielded | 20.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-49HFIXED IND 10MH 120MA 23.4OHM SMD |
3,529 | 9.42 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±15% | 120 mA | 60mA | Unshielded | 23.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-50HFIXED IND 12MH 120MA 26 OHM SMD |
4,649 | 9.42 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 12 mH | ±15% | 120 mA | 60mA | Unshielded | 26Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-51HFIXED IND 15MH 100MA 36 OHM SMD |
3,657 | 9.42 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 15 mH | ±15% | 100 mA | 50mA | Unshielded | 36Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-52HFIXED IND 18MH 90MA 40 OHM SMD |
3,337 | 9.42 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 18 mH | ±3% | 90 mA | 50mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
059KM5002VVERTICAL TOROIDAL INDUCTOR |
4,718 | 0.00 |
|
Datasheet |
KM | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 6.9 A | 5.7A | Shielded | 22mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia x 0.475" W (27.94mm x 12.06mm) | - |
|
|
059KM5002VLFVERTICAL TOROIDAL INDUCTOR |
4,577 | 0.00 |
|
Datasheet |
KM | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 6.9 A | 5.7A | Shielded | 22mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
CTHFW2915F-2R2MSMD SHLDED POWER INDUCTOR |
1,150 | 6.16 |
|
Datasheet |
CTHFW2915F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 2.2 µH | ±20% | 30 A | 100A | Shielded | 1.76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
26HF2203HHORIZONTAL TOROIDAL INDUCTOR |
3,730 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 220 µH | ±10% | 795 mA | 540mA | Unshielded | 400mOhm Max | - | 3MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
26HF2203VVERTICAL TOROIDAL INDUCTOR |
3,921 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 220 µH | ±10% | 795 mA | 540mA | Unshielded | 400mOhm Max | - | 3MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
PL8501FIXED IND 14.6UH 3.2A 46MOHM SMD |
3,417 | 10.17 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 14.6 µH | ±10% | 3.2 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8501NLFIXED IND 14.6UH 3.2A 46MOHM SMD |
4,323 | 10.17 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 14.6 µH | ±10% | 3.2 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8123NLTFIXED IND 73UH 1.3A 290 MOHM SMD |
2,363 | 10.42 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 73 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|

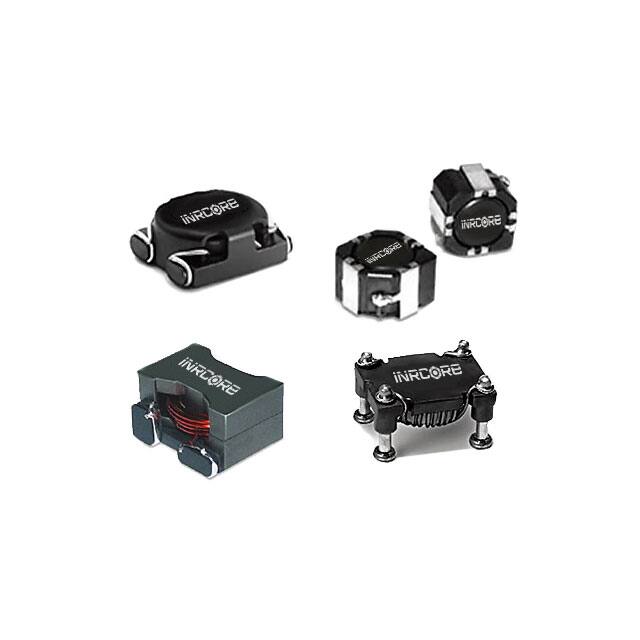

PL8123TFIXED IND 73UH 1.3A 290 MOHM SMD |
1,848 | 10.42 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 73 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
SMT3106-221MLFSHIELDED TOROIDAL CHOKE |
1,149 | 0.00 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.2 µH | ±20% | 3.4 A | 4.6A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
HTPT66R-223KFIXED IND 22UH 4A 36 MOHM TH |
3,205 | 9.56 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 22 µH | ±10% | 4 A | 4A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66-223KFIXED IND 22UH 4A 36 MOHM TH |
3,575 | 9.56 |
|
Datasheet |
HTPT66 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 22 µH | ±10% | 4 A | 4A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
26HF2703VVERTICAL TOROIDAL INDUCTOR |
3,264 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 270 µH | ±10% | 711 mA | 520mA | Unshielded | 500mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
26HF2703HHORIZONTAL TOROIDAL INDUCTOR |
4,594 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 270 µH | ±10% | 711 mA | 520mA | Unshielded | 500mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
SMP8527-184KMOLDED UNSHIELDED INDUCTOR |
4,177 | 0.00 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±10% | 360 mA | 260mA | Unshielded | 3.89Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
