Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

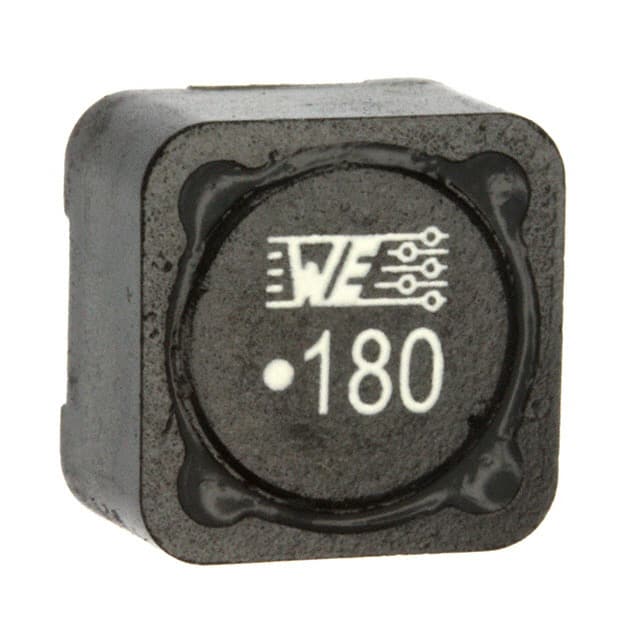

744770118FIXED IND 18UH 4.2A 39 MOHM SMD |
1,226 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 4.2 A | 5.4A | Shielded | 39mOhm Max | - | 13.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

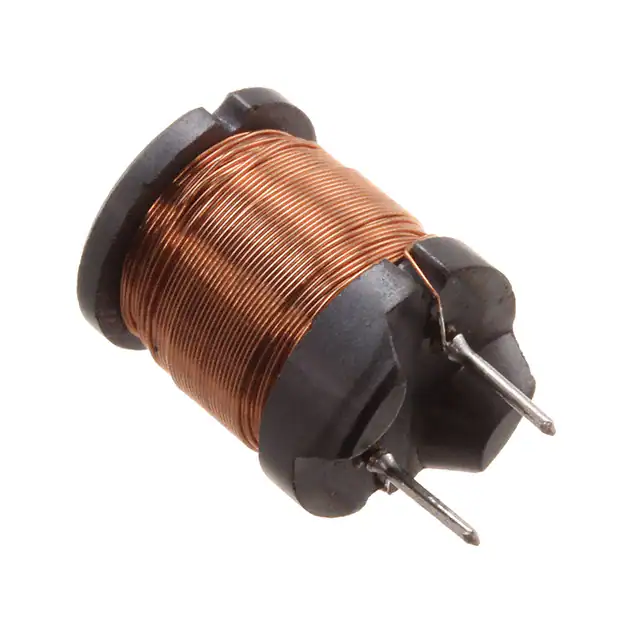

SBCP-14HY103BFIXED IND 10MH 170MA 10.86OHM TH |
973 | 2.42 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 170 mA | 310mA | Unshielded | 10.86Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

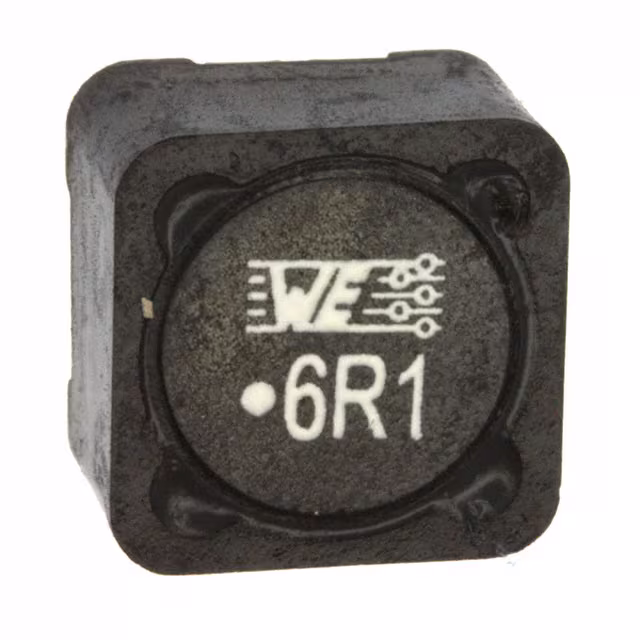

74477006FIXED IND 6.1UH 7.6A 18 MOHM SMD |
953 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | -20%, +40% | 7.6 A | 8.6A | Shielded | 18mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

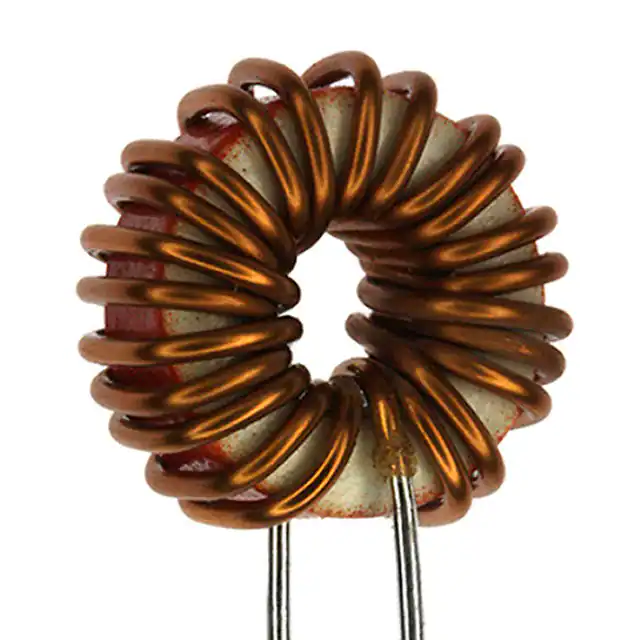

7447016FIXED IND 29UH 5A 15 MOHM TH |
667 | 2.40 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Tray | Active | Toroidal | Ferrite | 29 µH | ±20% | 5 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | - |
|
IHLP5050EZERR22M5AFIXED IND 220NH 68.18A 0.76 MOHM |
648 | 2.48 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 68.18 A | 69.24A | Shielded | 0.76mOhm Max | - | 99.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
74477001FIXED IND 1.2UH 12A 7 MOHM SMD |
621 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | -20%, +40% | 12 A | 16.6A | Shielded | 7mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
7443330082FIXED IND 820NH 20A 2.65MOHM SMD |
560 | 2.40 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 20 A | 36A | Shielded | 2.65mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
|
IHLP5050EZER470M5AFIXED IND 47UH 3.9A 112 MOHM SMD |
539 | 2.48 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.9 A | 4.8A | Shielded | 112mOhm Max | - | 4.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|

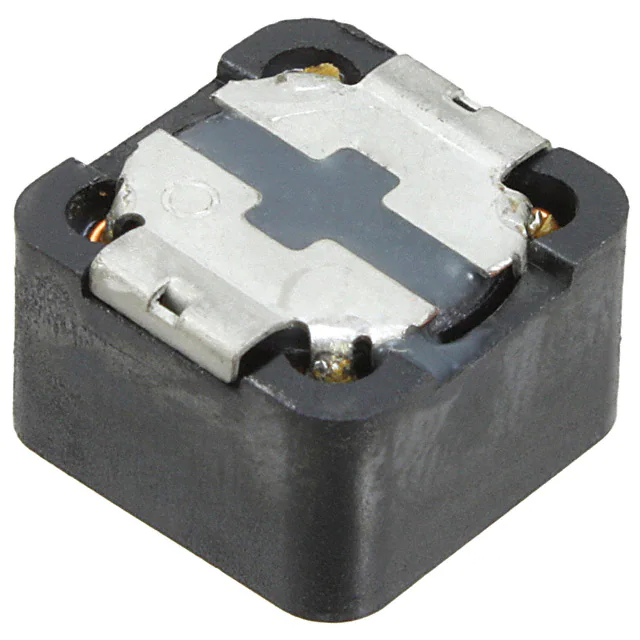

74477009FIXED IND 470NH 23.5A 3 MOHM SMD |
512 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | -25%, +20% | 23.5 A | 26.4A | Shielded | 3mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
744770015FIXED IND 1.5UH 10A 6 MOHM SMD |
497 | 2.25 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 10 A | 12A | Shielded | 6mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74477008FIXED IND 750NH 19.8A 4 MOHM SMD |
473 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 750 nH | -25%, +20% | 19.8 A | 21A | Shielded | 4mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

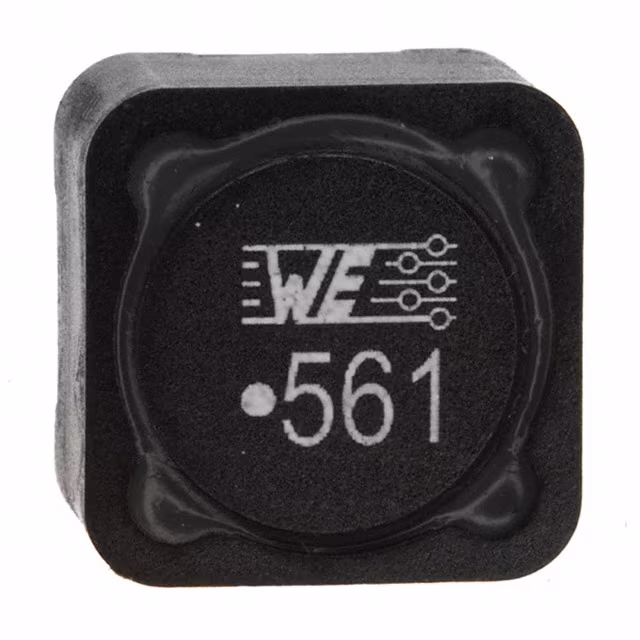

744770256FIXED IND 560UH 800MA 1.07OHM SM |
428 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 800 mA | 900mA | Shielded | 1.07Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
VLBS1007083T-R10LFIXED IND 100NH 70A 0.18MOHM SMD |
402 | 2.56 |
|
Datasheet |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 70 A | 115A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.331" (8.40mm) |
|
|
IHLP5050EZER220M5AFIXED IND 22UH 6.9A 44.8MOHM SMD |
390 | 2.48 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 6.9 A | 6.3A | Shielded | 44.8mOhm Max | - | 7.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
|
7443330068FIXED IND 680NH 20A 2.65MOHM SMD |
386 | 2.40 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 20 A | 38A | Shielded | 2.65mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
|
74477007FIXED IND 7.6UH 7.4A 20 MOHM SMD |
361 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.6 µH | -20%, +40% | 7.4 A | 8A | Shielded | 20mOhm Max | - | 21.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74477005FIXED IND 5.6UH 8A 17 MOHM SMD |
348 | 2.25 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | -20%, +40% | 8 A | 8.2A | Shielded | 17mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

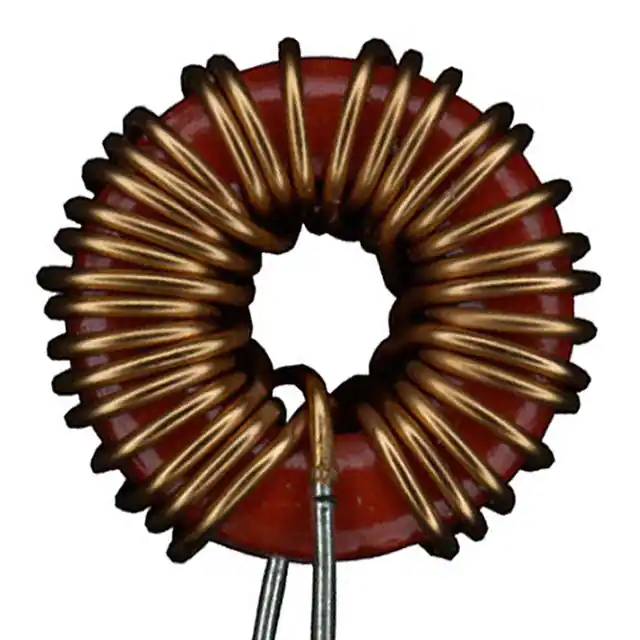

7447034FIXED IND 43UH 1A 60 MOHM TH |
243 | 2.40 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 43 µH | ±20% | 1 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.512" Dia x 0.256" W (13.00mm x 6.50mm) | - |
|

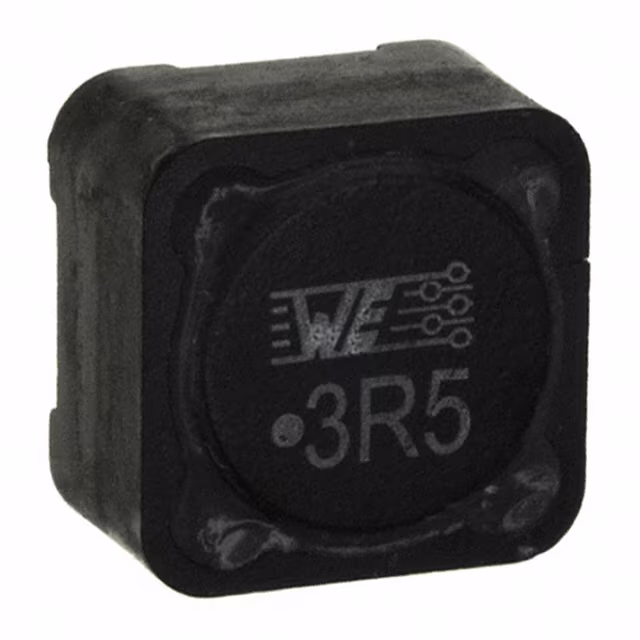

74477003FIXED IND 3.5UH 8.9A 14 MOHM SMD |
206 | 2.40 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | -20%, +40% | 8.9 A | 9.6A | Shielded | 14mOhm Max | - | 37.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
744731471FIXED IND 470UH 600MA 1.3 OHM TH |
190 | 2.40 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 400mA | Shielded | 1.3Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
