Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
894KM2502HHORIZONTAL TOROIDAL INDUCTOR |
4,205 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 12.8 A | 11A | Shielded | 12mOhm Max | - | 8MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.300" Dia (33.02mm) | 0.650" (16.51mm) |
|

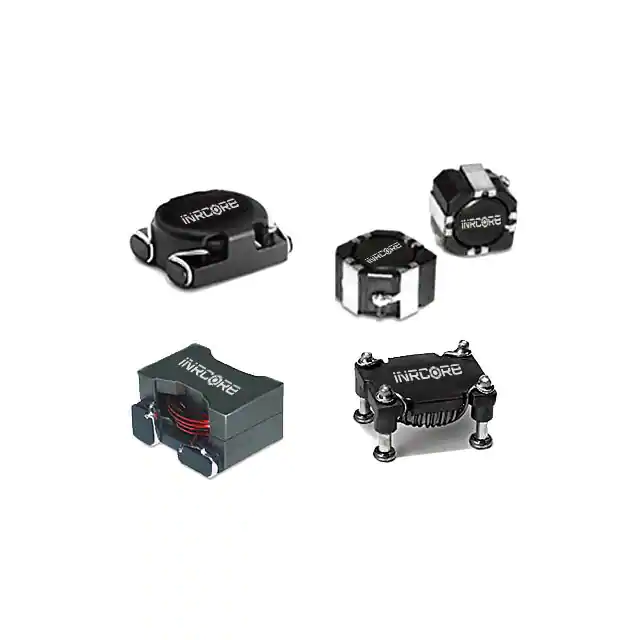

PL8143FIXED IND 1.95MH 710MA 1.7OHM SM |
1,911 | 13.12 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.95 mH | - | 710 mA | - | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PL8143NLFIXED IND 1.95MH 710MA 1.7OHM SM |
3,940 | 13.12 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.95 mH | - | 710 mA | - | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PTHF10-50SMFIXED IND 10UH 7.36A 10 MOHM SMD |
4,966 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 10 µH | ±10% | 7.36 A | - | Shielded | 10mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF25-50SMFIXED IND 25UH 5.2A 20 MOHM SMD |
4,013 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 25 µH | ±10% | 5.2 A | - | Shielded | 20mOhm Max | - | 10MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF50-50SMFIXED IND 50UH 3.93A 40 MOHM SMD |
4,166 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 50 µH | ±10% | 3.93 A | - | Shielded | 40mOhm Max | - | 7MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W x 0.400" H (17.78mm x 17.02mm x 10.16mm) | - |
|
|
PTHF75-50SMFIXED IND 75UH 3.47A 50 MOHM SMD |
3,791 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 75 µH | ±10% | 3.47 A | - | Shielded | 50mOhm Max | - | 5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF100-50SMFIXED IND 100UH 3.14A 60MOHM SMD |
1,460 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 3.14 A | - | Shielded | 60mOhm Max | - | 4MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF150-50SMFIXED IND 150UH 2.33A 100MOHM SM |
2,924 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 2.33 A | - | Shielded | 100mOhm Max | - | 3MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF200-50SMFIXED IND 200UH 1.97A 140MOHM SM |
1,243 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 200 µH | ±10% | 1.97 A | - | Shielded | 140mOhm Max | - | 2MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF250-50SMFIXED IND 250UH 1.84A 160MOHM SM |
4,443 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 250 µH | ±10% | 1.84 A | - | Shielded | 160mOhm Max | - | 1.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF330-50SMFIXED IND 330UH 1.69A 190MOHM SM |
1,488 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 330 µH | ±10% | 1.69 A | - | Shielded | 190mOhm Max | - | 1MHz | - | - | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.400" (10.16mm) |
|
|
PTHF25-40SMFIXED IND 25UH 3.38A 40 MOHM SMD |
1,109 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 25 µH | ±10% | 3.38 A | - | Shielded | 40mOhm Max | - | 20MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF50-40SMFIXED IND 50UH 1.9A 110 MOHM SMD |
4,083 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 50 µH | ±10% | 1.9 A | - | Shielded | 110mOhm Max | - | 13MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF75-40SMFIXED IND 75UH 1.69A 140MOHM SMD |
4,087 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 75 µH | ±10% | 1.69 A | - | Shielded | 140mOhm Max | - | 9MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF100-40SMFIXED IND 100UH 1.6A 160MOHM SMD |
3,187 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 1.6 A | - | Shielded | 160mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF150-40SMFIXED IND 150UH 1.45A 190MOHM SM |
2,675 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 1.45 A | - | Shielded | 190mOhm Max | - | 3.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF200-40SMFIXED IND 200UH 1.12A 320MOHM SM |
2,816 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 200 µH | ±10% | 1.12 A | - | Shielded | 320mOhm Max | - | 3MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF250-40SMFIXED IND 250UH 1.05A 360MOHM SM |
1,056 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 250 µH | ±10% | 1.05 A | - | Shielded | 360mOhm Max | - | 2.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF10-30SMFIXED IND 10UH 2.56A 50 MOHM SMD |
3,829 | 12.13 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 10 µH | ±10% | 2.56 A | - | Shielded | 50mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W x 0.400" H (11.18mm x 11.18mm x 10.16mm) | - |
