Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GT20-503-1VERTICAL MOUNT TOROIDAL CHOKE |
4,783 | 0.00 |
|
Datasheet |
GT20 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | - | 2A | Unshielded | 276mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 0.925" Dia x 0.600" L (23.50mm x 15.24mm) | - |
|
|
2534-52LFIXED IND 15MH 40MA 105 OHM TH |
4,285 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 15 mH | ±15% | 40 mA | - | Unshielded | 105Ohm Max | 45 @ 79kHz | 320kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-54LFIXED IND 18MH 37MA 120 OHM TH |
2,076 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 18 mH | ±15% | 37 mA | - | Unshielded | 120Ohm Max | 45 @ 79kHz | 300kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-56LFIXED IND 22MH 34MA 145 OHM TH |
4,525 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 22 mH | ±15% | 34 mA | - | Unshielded | 145Ohm Max | 45 @ 79kHz | 250kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-58LFIXED IND 27MH 29MA 195 OHM TH |
3,398 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 27 mH | ±15% | 29 mA | - | Unshielded | 195Ohm Max | 45 @ 79kHz | 240kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-60LFIXED IND 33MH 26MA 250 OHM TH |
2,415 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 33 mH | ±15% | 26 mA | - | Unshielded | 250Ohm Max | 45 @ 79kHz | 210kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-62LFIXED IND 39MH 23MA 295 OHM TH |
4,881 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 39 mH | ±15% | 23 mA | - | Unshielded | 295Ohm Max | 40 @ 79kHz | 200kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-64LFIXED IND 47MH 21.5MA 365 OHM TH |
4,161 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 47 mH | ±15% | 21.5 mA | - | Unshielded | 365Ohm Max | 40 @ 79kHz | 180kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-66LFIXED IND 56MH 19.5MA 430 OHM TH |
1,162 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 56 mH | ±15% | 19.5 mA | - | Unshielded | 430Ohm Max | 40 @ 79kHz | 170kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-68LFIXED IND 68MH 18MA 510 OHM TH |
4,330 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 68 mH | ±15% | 18 mA | - | Unshielded | 510Ohm Max | 30 @ 79kHz | 150kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-70LFIXED IND 82MH 16.6MA 605 OHM TH |
1,162 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 82 mH | ±15% | 16.6 mA | - | Unshielded | 605Ohm Max | 30 @ 79kHz | 140kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-72LFIXED IND 100MH 15.8MA 670OHM TH |
3,822 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 100 mH | ±15% | 15.8 mA | - | Unshielded | 670Ohm Max | 30 @ 79kHz | 120kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-74LFIXED IND 120MH 13.5MA 900OHM TH |
2,626 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 120 mH | ±15% | 13.5 mA | - | Unshielded | 900Ohm Max | 30 @ 50kHz | 110kHz | - | -55°C ~ 125°C | 50 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|

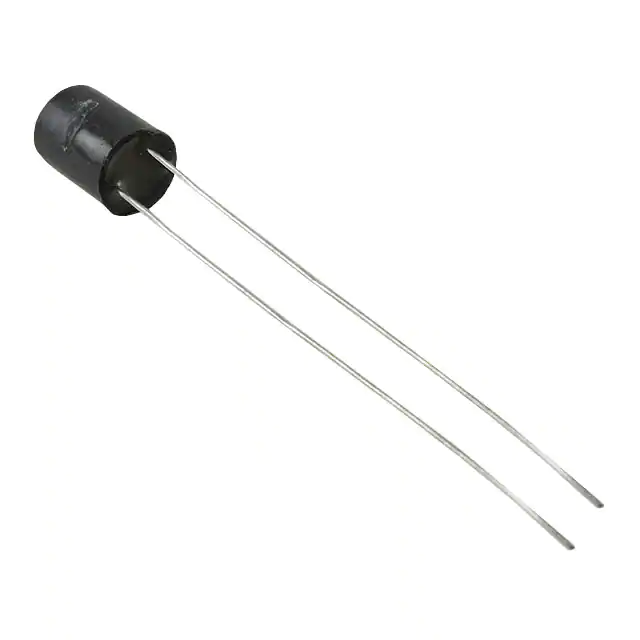

2534-76LFIXED IND 150MH 12MA 1.1 KOHM TH |
4,662 | 12.64 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 150 mH | ±15% | 12 mA | - | Unshielded | 1.1kOhm Max | 25 @ 50kHz | 100kHz | - | -55°C ~ 125°C | 50 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
ER1537-01JMFIXED IND 180NH 1.81A 55 MOHM TH |
2,432 | 14.76 |
|
Datasheet |
ER1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±5% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-01JPFIXED IND 180NH 1.81A 55 MOHM TH |
1,177 | 14.76 |
|
Datasheet |
ER1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±5% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-01JRFIXED IND 180NH 1.81A 55 MOHM TH |
1,588 | 14.76 |
|
Datasheet |
ER1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±5% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-02JMFIXED IND 220NH 1.81A 55 MOHM TH |
3,410 | 14.76 |
|
Datasheet |
ER1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±5% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-02JPFIXED IND 220NH 1.81A 55 MOHM TH |
3,287 | 14.76 |
|
Datasheet |
ER1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±5% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-02JRFIXED IND 220NH 1.81A 55 MOHM TH |
1,203 | 14.76 |
|
Datasheet |
ER1537 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±5% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
