Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1641-824JRFIXED IND 820UH 80MA 13 OHM TH |
4,156 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±5% | 80 mA | - | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-824JSFIXED IND 820UH 80MA 13 OHM TH |
3,287 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±5% | 80 mA | - | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-913JMFIXED IND 91UH 160MA 3.12 OHM TH |
2,970 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 91 µH | ±5% | 160 mA | - | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-913JPFIXED IND 91UH 160MA 3.12 OHM TH |
3,987 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 91 µH | ±5% | 160 mA | - | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-913JRFIXED IND 91UH 160MA 3.12 OHM TH |
2,025 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 91 µH | ±5% | 160 mA | - | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-913JSFIXED IND 91UH 160MA 3.12 OHM TH |
1,166 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 91 µH | ±5% | 160 mA | - | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-914JMFIXED IND 910UH 70MA 17.5 OHM TH |
2,753 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 910 µH | ±5% | 70 mA | - | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-914JPFIXED IND 910UH 70MA 17.5 OHM TH |
1,270 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 910 µH | ±5% | 70 mA | - | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-914JRFIXED IND 910UH 70MA 17.5 OHM TH |
1,092 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 910 µH | ±5% | 70 mA | - | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-914JSFIXED IND 910UH 70MA 17.5 OHM TH |
4,651 | 16.78 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 910 µH | ±5% | 70 mA | - | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
848T2004HIGH INDUCTANCE TOROID INDUCTOR |
2,978 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 2 mH | ±2% | 482 mA | - | Unshielded | 1Ohm Max | - | 500MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.500" (12.70mm) |
|
|
050AT1003HMHORIZ STANDOFF TOROIDAL CHOKE |
3,936 | 0.00 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 2.2A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050AT3303HMHORIZ STANDOFF TOROIDAL CHOKE |
1,749 | 0.00 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 330 µH | ±10% | 1.69 A | 1.2A | Shielded | 190mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050AT2003HMHORIZ STANDOFF TOROIDAL CHOKE |
3,939 | 0.00 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 200 µH | ±10% | 1.97 A | 1.6A | Shielded | 140mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050AT2503HMHORIZ STANDOFF TOROIDAL CHOKE |
1,446 | 0.00 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 250 µH | ±10% | 1.84 A | 1.4A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050AT1503HMHORIZ STANDOFF TOROIDAL CHOKE |
2,414 | 0.00 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 2.33 A | 1.8A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
GT10-106VERTICAL MOUNT TOROIDAL CHOKE |
2,733 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 264 µH | -12%, +30% | 3 A | - | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 1.210" Dia x 0.550" W (30.73mm x 13.97mm) | - |
|

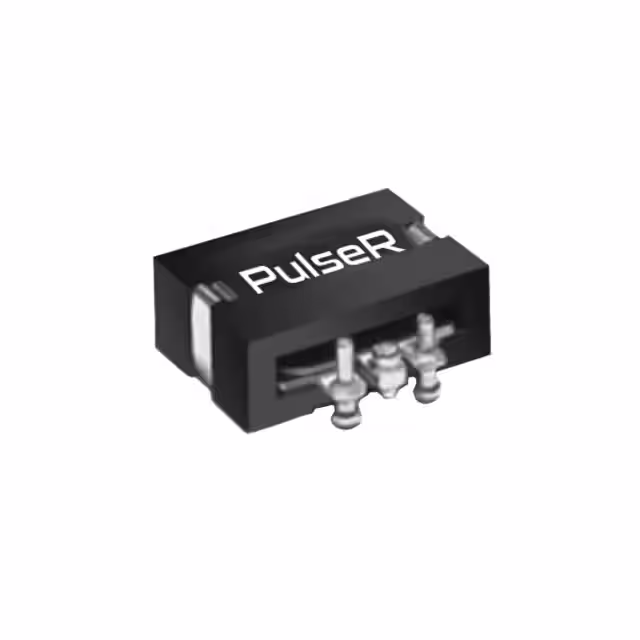

PL10102TFIXED IND 910NH 39A 0.48MOHM SMD |
1,423 | 10.15 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 910 nH | ±15% | 39 A | 46A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
C100FL1938G6BROADBAND CONICAL INDUCTOR |
1,918 | 0.00 |
|
Datasheet |
C100FL | Radial, Horizontal Cylinder | Bulk | Active | - | Iron Powder | 260 nH | - | 573 mA | - | Unshielded | 100mOhm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Through Hole | Radial | 0.039" Dia x 0.100" L (1.00mm x 2.54mm) | - |
|
|
C070SM3445G6BROADBAND CONICAL SMT INDUCTOR |
4,320 | 0.00 |
|
Datasheet |
C070SM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 700 nH | - | 190 mA | - | Unshielded | 820mOhm Max | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.105" L x 0.040" W (2.67mm x 1.02mm) | 0.052" (1.31mm) |
