Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GT10-114LFVERTICAL MOUNT TOROIDAL CHOKE |
4,312 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 55 µH | -12%, +30% | 5 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 1.000" Dia x 0.510" W (25.40mm x 12.95mm) | - |
|
|
GT10-114VERTICAL MOUNT TOROIDAL CHOKE |
2,357 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 55 µH | -12%, +30% | 5 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 1.000" Dia x 0.510" W (25.40mm x 12.95mm) | - |
|
|
GT10-111LFVERTICAL MOUNT TOROIDAL CHOKE |
1,851 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 38 µH | -12%, +30% | 4 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 0.840" Dia x 0.380" W (21.34mm x 9.65mm) | - |
|
|
GT10-112LFVERTICAL MOUNT TOROIDAL CHOKE |
1,185 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 100 µH | - | 5 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 1.250" L x 0.700" W (31.75mm x 17.78mm) | - |
|
|
C182SM6042G6BROADBAND CONICAL SMT INDUCTOR |
3,371 | 0.00 |
|
Datasheet |
C182SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | - | 350 mA | - | Unshielded | 1.29Ohm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.245" L x 0.113" W (6.22mm x 2.87mm) | 0.245" (6.22mm) |
|
|
C182SM11047G6BROADBAND CONICAL SMT INDUCTOR |
4,299 | 0.00 |
|
Datasheet |
C182SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10.7 µH | - | 150 mA | - | Unshielded | 7.1Ohm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.245" L x 0.113" W (6.22mm x 2.87mm) | 0.245" (6.22mm) |
|
|
DB4-563RADIAL POWER LINE CHOKE |
2,384 | 0.00 |
|
Datasheet |
DB4 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | Ferrite | 560 µH | ±10% | 7.2 A | 8.3A | Unshielded | 96mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.162" (29.51mm) |
|
|
C225FL3536G6BROADBAND CONICAL INDUCTOR |
2,023 | 0.00 |
|
Datasheet |
C225FL | Radial, Horizontal Cylinder | Bulk | Active | - | Iron Powder | 890 nH | - | 360 mA | - | Unshielded | 390mOhm Max | - | - | - | -55°C ~ 125°C | 10 MHz | - | Through Hole | Radial | 0.070" Dia x 0.225" L (1.78mm x 5.72mm) | - |
|
|
C102SM2238G6BROADBAND CONICAL SMT INDUCTOR |
1,965 | 0.00 |
|
Datasheet |
C102SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 815 mA | - | Unshielded | 190mOhm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.131" L x 0.080" W (3.32mm x 2.03mm) | 0.105" (2.67mm) |
|
|
C102SM2740G6BROADBAND CONICAL SMT INDUCTOR |
2,756 | 0.00 |
|
Datasheet |
C102SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 700 nH | ±20% | 619 mA | - | Unshielded | 320mOhm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.131" L x 0.080" W (3.32mm x 2.03mm) | 0.105" (2.67mm) |
|

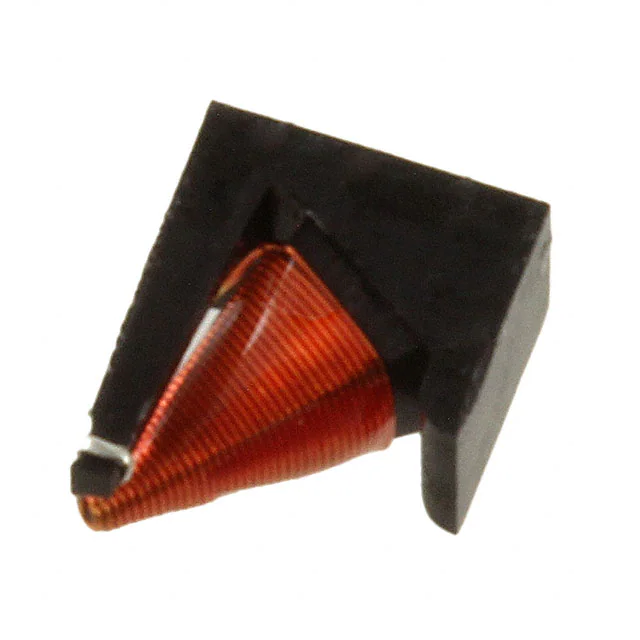

506WLSM3R80KT182TFIXED IND 3.8UH 182MA 3.7OHM SMD |
2,884 | 21.67 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.8 µH | ±10% | 182 mA | - | Unshielded | 3.7Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
DEH-15-0001FIXED IND 25A 10 MOHM TH |
1,153 | 23.72 |
|
Datasheet |
DEH | Axial | Bulk | Last Time Buy | - | - | - | - | 25 A | - | - | 10mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.669" Dia x 3.150" L (17.00mm x 80.00mm) | - |
|
|
050AT7502HCHORIZONTAL TOROIDAL POWER CHOKE |
4,115 | 0.00 |
|
Datasheet |
ATHC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 75 µH | ±10% | 3.47 A | 2.5A | Shielded | 45mOhm Max | - | 2.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" Dia (19.05mm) | 0.425" (10.80mm) |
|
|
050AT1002HCHORIZONTAL TOROIDAL POWER CHOKE |
4,114 | 0.00 |
|
Datasheet |
ATHC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 10 µH | ±10% | 7.36 A | 8.7A | Shielded | 10mOhm Max | - | 20MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" Dia (19.05mm) | 0.425" (10.80mm) |
|
|
050AT2502HCHORIZONTAL TOROIDAL POWER CHOKE |
3,227 | 0.00 |
|
Datasheet |
ATHC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 5.3A | Shielded | 20mOhm Max | - | 6MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" Dia (19.05mm) | 0.425" (10.80mm) |
|
|
050AT5002HCHORIZONTAL TOROIDAL POWER CHOKE |
2,792 | 0.00 |
|
Datasheet |
ATHC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 3.93 A | 3.1A | Shielded | 35mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" Dia (19.05mm) | 0.425" (10.80mm) |
|
|
050AT1002VCVERT TOROIDAL CHOKE |
3,278 | 0.00 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | 10 µH | ±10% | 7.36 A | 8.7A | Shielded | 10mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" L x 0.400" W (19.05mm x 10.16mm) | 0.312" (7.92mm) |
|
|
3A102RADIAL-LEADED HIGH CURRENT CHOKE |
3,018 | 0.00 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 10 µH | ±10% | 3 A | - | Unshielded | 18mOhm | - | 25MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|
|
10A501RADIAL-LEADED HIGH CURRENT CHOKE |
4,255 | 0.00 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 5 µH | ±10% | 10 A | - | Unshielded | 10mOhm | - | 30MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.687" Dia x 1.125" L (17.45mm x 28.58mm) | - |
|
1539M22FIXED IND 500UH 5A 90 MOHM TH |
3,223 | 22.96 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 5 A | - | Unshielded | 90mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
