Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
050KM2502VCVERT POTTED TOROIDAL INDUCTOR |
4,061 | 0.00 |
|
Datasheet |
KMVC | Radial, Vertical | Bulk | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 1.9A | Shielded | 20mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" L x 0.400" W (19.05mm x 10.16mm) | 0.312" (7.92mm) |
|
|
121KM5002HMHORIZ STANDOFF TOROIDAL CHOKE |
3,804 | 0.00 |
|
Datasheet |
KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 4.77 A | 4A | Shielded | 30mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.900" Dia (22.86mm) | 0.500" (12.70mm) |
|
|
C225SM2935G6BROADBAND CONICAL SMT INDUCTOR |
1,835 | 0.00 |
|
Datasheet |
C225SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 600 nH | - | 733 mA | - | Unshielded | 160mOhm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.250" L x 0.144" W (6.35mm x 3.65mm) | 0.250" (6.35mm) |
|
ER1840-114JSFIXED IND 2UH 505MA 970 MOHM TH |
4,766 | 0.00 |
|
Datasheet |
Military, MIL-PRF-39010/04, ER1840 | Axial | Cut Tape (CT) | Active | - | Phenolic | 2 µH | ±5% | 505 mA | - | Unshielded | 970mOhm Max | 30 @ 7.9MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|

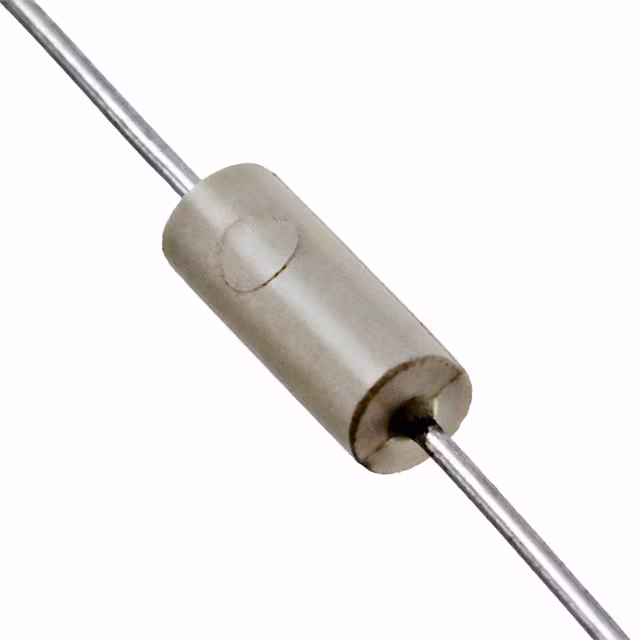

ER1025-70JRFIXED IND 120UH 66MA 13 OHM TH |
1,324 | 15.04 |
|
Datasheet |
Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±5% | 66 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
C225SM3536G6BROADBAND CONICAL SMT INDUCTOR |
3,321 | 0.00 |
|
Datasheet |
C225SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 890 nH | - | 469 mA | - | Unshielded | 390mOhm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.250" L x 0.144" W (6.35mm x 3.65mm) | 0.250" (6.35mm) |
|
|
3A502RADIAL-LEADED HIGH CURRENT CHOKE |
3,634 | 0.00 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 50 µH | ±10% | 3 A | - | Unshielded | 50mOhm | - | 5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
|
|
10A272RADIAL-LEADED HIGH CURRENT CHOKE |
3,210 | 0.00 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 27 µH | ±10% | 10 A | - | Unshielded | 18mOhm | - | 7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.937" Dia x 1.125" L (23.80mm x 28.58mm) | - |
|
|
050AT1003VCLFVERT TOROIDAL CHOKE |
4,146 | 0.00 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 2.2A | Shielded | 55mOhm Max | - | 2.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" L x 0.400" W (19.05mm x 10.16mm) | 0.312" (7.92mm) |
|
|
050AT1003VCVERT TOROIDAL CHOKE |
2,100 | 0.00 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 2.2A | Shielded | 55mOhm Max | - | 2.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" L x 0.400" W (19.05mm x 10.16mm) | 0.312" (7.92mm) |
|
|
121AT5002VCVERT TOROIDAL CHOKE |
1,065 | 0.00 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | 50 µH | ±10% | 4.77 A | 6A | Shielded | 30mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.800" L x 0.500" W (20.32mm x 12.70mm) | 0.312" (7.92mm) |
|
|
051T2005HIGH INDUCTANCE TOROID INDUCTOR |
2,023 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 20 mH | ±2% | 74 mA | - | Unshielded | 22Ohm Max | - | 180kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
051T5005HIGH INDUCTANCE TOROID INDUCTOR |
1,920 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 50 mH | ±2% | 47 mA | - | Unshielded | 55Ohm Max | - | 100kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
047T3006HIGH INDUCTANCE TOROID INDUCTOR |
2,532 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ER1641-104KSFIXED IND 100UH 160MA 3.12OHM TH |
1,900 | 15.25 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 160 mA | - | Unshielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-105KSFIXED IND 1MH 70MA 17.5 OHM TH |
4,904 | 15.25 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 70 mA | - | Unshielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-124KSFIXED IND 120UH 150MA 3.6 OHM TH |
1,820 | 15.25 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±10% | 150 mA | - | Unshielded | 3.6Ohm Max | 55 @ 790kHz | 9.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-153KSFIXED IND 15UH 315MA 800 MOHM TH |
1,389 | 15.25 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 315 mA | - | Unshielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-183KSFIXED IND 18UH 300MA 890 MOHM TH |
4,484 | 15.25 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±10% | 300 mA | - | Unshielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-223KSFIXED IND 22UH 290MA 960 MOHM TH |
1,254 | 15.25 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 290 mA | - | Unshielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
