Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1210R-561KFIXED IND 560NH 619MA 500MOHM SM |
315 | 3.56 |
|
Datasheet |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±10% | 619 mA | - | Shielded | 500mOhm Max | 40 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
2100LL-100-V-RCFIXED IND 10UH 11.4A 5 MOHM TH |
278 | 4.04 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 10 µH | ±15% | 11.4 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
PE-52629NLFIXED IND 680UH 850MA 1.5 OHM TH |
130 | 4.04 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
1537-92JFIXED IND 220UH 117MA 7.45OHM TH |
4,107 | 2.12 |
|
Datasheet |
Military, MIL-PRF-M15305, MS90538 | Axial | Tape & Reel (TR) | Active | - | Iron | 220 µH | ±5% | 117 mA | - | Unshielded | 7.45Ohm Max | 65 @ 790kHz | 6.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
PQ2614BLA-1R0KFIXED IND 1UH 30A 1.2 MOHM SMD |
996 | 3.91 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 30 A | - | Shielded | 1.2mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-100KFIXED IND 10UH 30A 1.6 MOHM SMD |
692 | 3.91 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 30 A | 16.2A | Shielded | 1.6mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
1025-92KFIXED IND 1MH 28MA 72 OHM TH |
3,329 | 3.26 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 28 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-86KFIXED IND 560UH 35MA 46 OHM TH |
1,997 | 3.26 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±10% | 35 mA | - | Unshielded | 46Ohm Max | 30 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

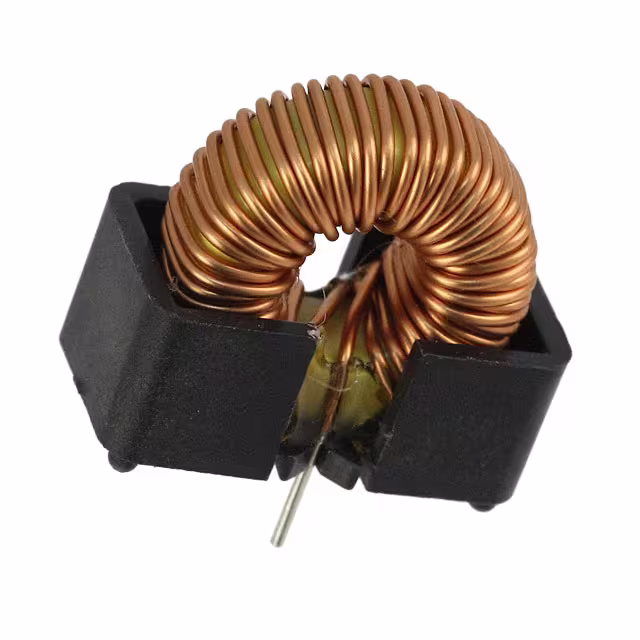

PE-54040NLFIXED IND 38UH 3A 50 MOHM TH |
1,508 | 4.09 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PQ2614BLA-220KFIXED IND 22UH 30A 1.6 MOHM SMD |
575 | 3.91 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 30 A | 6A | Shielded | 1.6mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-150KFIXED IND 15UH 30A 1.6 MOHM SMD |
475 | 3.91 |
|
Datasheet |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 30 A | 9.8A | Shielded | 1.6mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
DRA127-102-RFIXED IND 1MH 598MA 1.75 OHM SMD |
209 | 3.91 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 598 mA | 1.1A | Shielded | 1.75Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

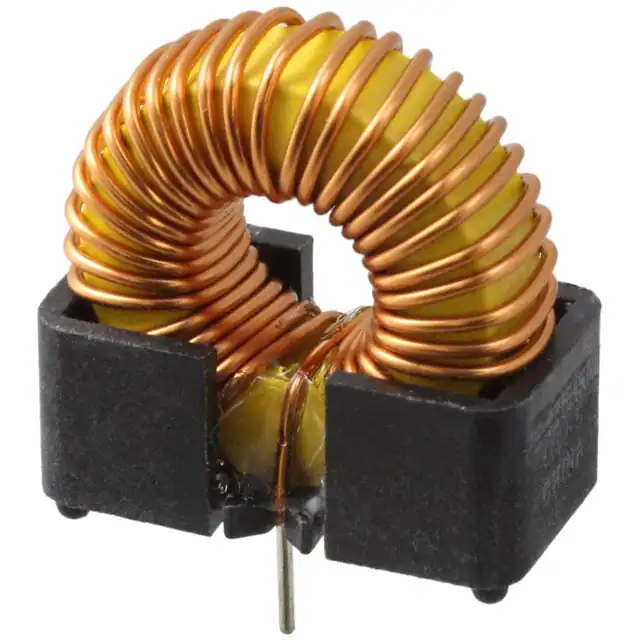

PE-92104KNLFIXED IND 70UH 3A 52 MOHM TH |
555 | 3.98 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|
IHLP6767GZER2R2M51FIXED IND 2.2UH 38.5A 2.41 MOHM |
1,164 | 4.75 |
|
Datasheet |
IHLP-6767GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 38.5 A | 38A | Shielded | 2.41mOhm Max | - | 19.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
RC-11FIXED IND 75UH 2.5A 70 MOHM TH |
188 | 4.72 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 75 µH | ±10% | 2.5 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
|
PQ2614BHA-6R8KFIXED IND 6.8UH 30A 1.9 MOHM SMD |
734 | 4.01 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 30 A | 34.5A | Shielded | 1.9mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-330KFIXED IND 33UH 30A 1.9 MOHM SMD |
557 | 4.01 |
|
Datasheet |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 30 A | 5.1A | Shielded | 1.9mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
UP4B-100-RFIXED IND 10UH 6.8A 15 MOHM SMD |
316 | 3.94 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.8 A | 11.5A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
|
IHLP6767GZER1R0M5AFIXED IND 1UH 53A 1.46 MOHM SMD |
673 | 4.41 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 53 A | 42A | Shielded | 1.46mOhm Max | - | 35.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
744323220FIXED IND 2.2UH 9A 11.38MOHM SMD |
362 | 4.12 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9 A | 15A | Shielded | 11.38mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
