Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-RE56NGF3FIXED IND 56NH 250MA 1.2 OHM SMD |
2,916 | 0.00 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 56 nH | ±2% | 250 mA | - | Unshielded | 1.2Ohm Max | 12 @ 100MHz | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RER10GF3FIXED IND 100NH 200MA 1.8OHM SMD |
2,473 | 0.00 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 100 nH | ±2% | 200 mA | - | Unshielded | 1.8Ohm Max | 10 @ 100MHz | 1.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELJ-PA100KFFIXED IND 10UH 240MA 500MOHM SMD |
2,619 | 0.00 |
|
Datasheet |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 240 mA | - | Unshielded | 500mOhm Max | 15 @ 2.52MHz | 23MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
PM1008-33NMFIXED IND 33NH 1A 140 MOHM SMD |
4,675 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 33 nH | ±20% | 1 A | - | Unshielded | 140mOhm | 60 @ 350MHz | 1.6GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-39NMFIXED IND 39NH 1A 150 MOHM SMD |
2,520 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 39 nH | ±20% | 1 A | - | Unshielded | 150mOhm | 60 @ 350MHz | 1.5GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-47NMFIXED IND 47NH 1A 160 MOHM SMD |
1,574 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 47 nH | ±20% | 1 A | - | Unshielded | 160mOhm | 65 @ 350MHz | 1.5GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-82NKFIXED IND 82NH 1A 220 MOHM SMD |
3,312 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 82 nH | ±10% | 1 A | - | Unshielded | 220mOhm | 60 @ 350MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R12KFIXED IND 120NH 650MA 680MOHM SM |
2,837 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±10% | 650 mA | - | Unshielded | 680mOhm | 60 @ 350MHz | 950MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R15KFIXED IND 150NH 580MA 700MOHM SM |
3,250 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 150 nH | ±10% | 580 mA | - | Unshielded | 700mOhm | 45 @ 100MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R18KFIXED IND 180NH 620MA 770MOHM SM |
2,741 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 180 nH | ±10% | 620 mA | - | Unshielded | 770mOhm | 45 @ 100MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R22KFIXED IND 220NH 500MA 840MOHM SM |
2,956 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 220 nH | ±10% | 500 mA | - | Unshielded | 840mOhm | 45 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R27KFIXED IND 270NH 500MA 910MOHM SM |
1,556 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 270 nH | ±10% | 500 mA | - | Unshielded | 910mOhm | 45 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R39KFIXED IND 390NH 470MA 1.12OHM SM |
1,911 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 390 nH | ±10% | 470 mA | - | Unshielded | 1.12Ohm | 45 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R47KFIXED IND 470NH 470MA 1.19OHM SM |
3,890 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 470 nH | ±10% | 470 mA | - | Unshielded | 1.19Ohm | 45 @ 100MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-R68KFIXED IND 680NH 400MA 1.47OHM SM |
4,718 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 680 nH | ±10% | 400 mA | - | Unshielded | 1.47Ohm | 45 @ 100MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-2R7KFIXED IND 2.7UH 290MA 3.2OHM SMD |
2,918 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 µH | ±10% | 290 mA | - | Unshielded | 3.2Ohm | 22 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM1008-4R7KFIXED IND 4.7UH 260MA 4 OHM SMD |
3,437 | 0.00 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.7 µH | ±10% | 260 mA | - | Unshielded | 4Ohm | 20 @ 25MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PA220KFFIXED IND 22UH 185MA 1.15OHM SMD |
3,433 | 0.00 |
|
Datasheet |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 185 mA | - | Unshielded | 1.15Ohm Max | 15 @ 2.52MHz | 15MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
PM125S-331MFIXED IND 330UH 570MA 800MOHM SM |
1,855 | 0.00 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 570 mA | 780mA | Shielded | 800mOhm Max | - | 4MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|

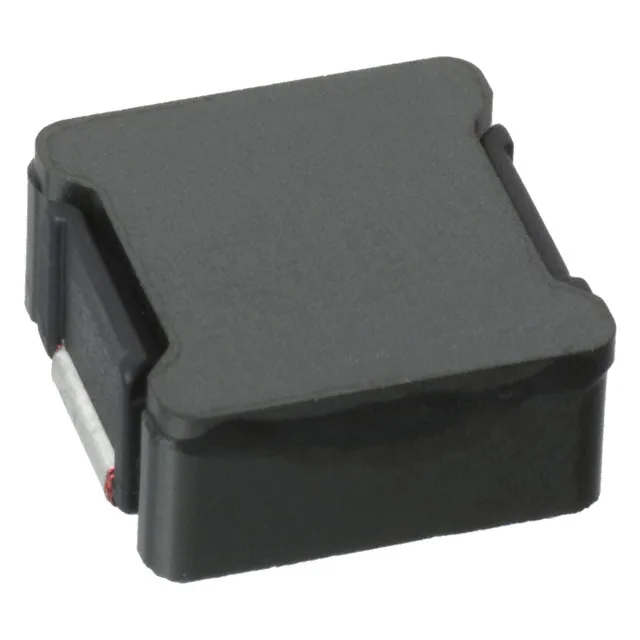

ETQ-P6F1R2HFAFIXED IND 1.2UH 14.2A 2.24 MOHM |
1,975 | 0.00 |
|
Datasheet |
PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.2 µH | ±30% | 14.2 A | 14.3A | Shielded | 2.24mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
