Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4344.333ANLTFIXED IND 33UH 12A 37 MOHM SMD |
783 | 4.99 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 12 A | 12A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
B82559B2102A016FIXED IND 1UH 36A 1 MOHM SMD |
532 | 5.87 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 36 A | 40.4A | Shielded | 1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.297" (7.55mm) |
|

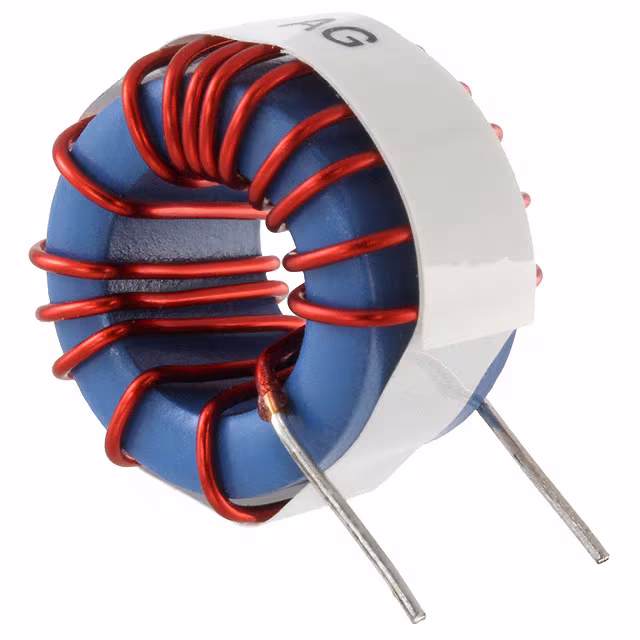

CTX20-5-52-RFIXED IND 20UH 7.8A 26 MOHM TH |
4,895 | 4.83 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.965" Dia x 0.654" W (24.50mm x 16.60mm) | - |
|

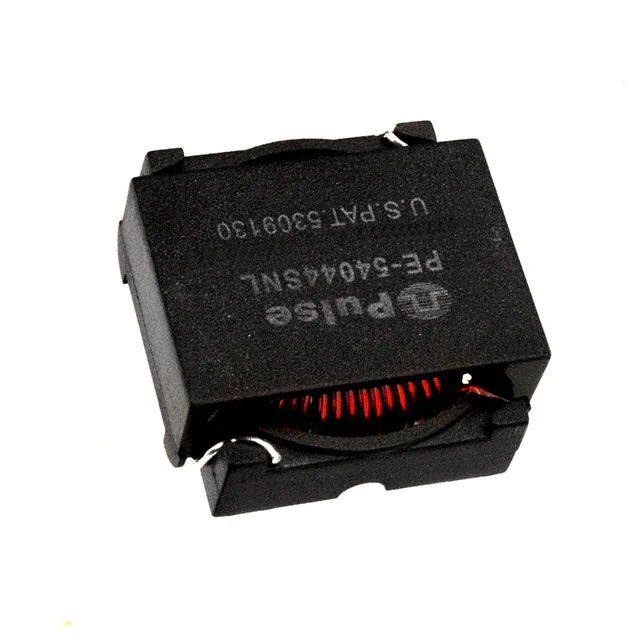

PE-54044SNLFIXED IND 77UH 3A 80 MOHM SMD |
1,103 | 5.03 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
S1812R-472KFIXED IND 4.7UH 471MA 900MOHM SM |
4,039 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 471 mA | - | Shielded | 900mOhm Max | 40 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-564KFIXED IND 560UH 84MA 28 OHM SMD |
1,801 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±10% | 84 mA | - | Shielded | 28Ohm Max | 40 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-682KFIXED IND 6.8UH 408MA 1.2OHM SMD |
1,642 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 408 mA | - | Shielded | 1.2Ohm Max | 40 @ 7.9MHz | 32MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHSM4825ER4R7LFIXED IND 4.7UH 4A 47 MOHM SMD |
1,102 | 4.98 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±15% | 4 A | 2A | Unshielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
S1812R-124KFIXED IND 120UH 163MA 7.5OHM SMD |
928 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±10% | 163 mA | - | Shielded | 7.5Ohm Max | 40 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPD74R-563MFIXED IND 56UH 1.1A 350 MOHM SMD |
5,883 | 4.61 |
|
Datasheet |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.1 A | 1.1A | Shielded | 350mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
MPX1D1770L680FIXED IND 68UH 5.5A 79.5MOHM SMD |
342 | 4.90 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 5.5 A | 8.5A | Shielded | 79.5mOhm Max | - | 2.3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770LR47FIXED IND 470NH 52.5A 1.0005MOHM |
260 | 4.90 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 52.5 A | 108A | Shielded | 1.0005mOhm Max | - | 45MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
B82559B3152A016FIXED IND 1.5UH 30A 1.4 MOHM SMD |
114 | 5.96 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 30 A | 40.5A | Shielded | 1.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.333" (8.45mm) |
|
HCF1305-3R3-RFIXED IND 3.3UH 13.2A 4.9MOHM SM |
787 | 5.10 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 13.2 A | 12.5A | Unshielded | 4.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
IHSM3825ER470LFIXED IND 47UH 740MA 646MOHM SMD |
573 | 5.26 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 740 mA | 680mA | Unshielded | 646mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
PA2050.103NLFIXED IND 10.2UH 12.5A 5.8 MOHM |
744 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 10.2 µH | ±10% | 12.5 A | 16A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
2474R-19LFIXED IND 33UH 2.17A 75 MOHM TH |
2,304 | 5.87 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 33 µH | ±15% | 2.17 A | 1.1A | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2474R-09LFIXED IND 4.7UH 4.01A 22 MOHM TH |
930 | 6.16 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 4.7 µH | ±15% | 4.01 A | 2.9A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
2200LL-560-H-RCFIXED IND 56UH 9.8A 13 MOHM TH |
648 | 5.47 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 56 µH | ±15% | 9.8 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
2200LL-102-H-RCFIXED IND 1MH 2.4A 216 MOHM TH |
198 | 5.47 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 2.4 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
