Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-ATV121MFIXED IND 120UH 840MA 190MOHM SM |
4,271 | 1.73 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 840 mA | - | Shielded | 190mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV221MFIXED IND 220UH 700MA 360MOHM SM |
4,520 | 0.00 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | - | Shielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV471MFIXED IND 470UH 470MA 780MOHM SM |
4,789 | 0.00 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 470 mA | - | Shielded | 780mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
|
ELL-ATV102MFIXED IND 1MH 320MA 1.75 OHM SMD |
1,386 | 1.73 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 320 mA | - | Shielded | 1.75Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|

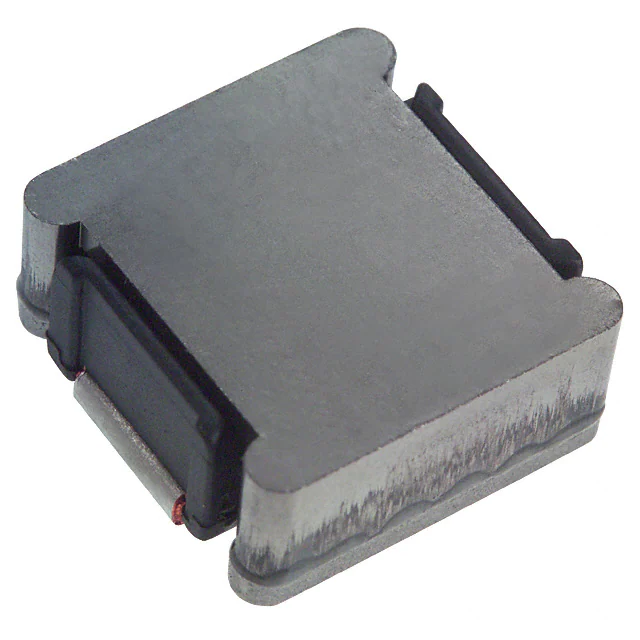

ETQ-P6F3R4BFAFIXED IND 3.32UH 10A 6.48MOHM SM |
3,562 | 0.00 |
|
Datasheet |
PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.32 µH | ±20% | 10 A | - | Shielded | 6.48mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|

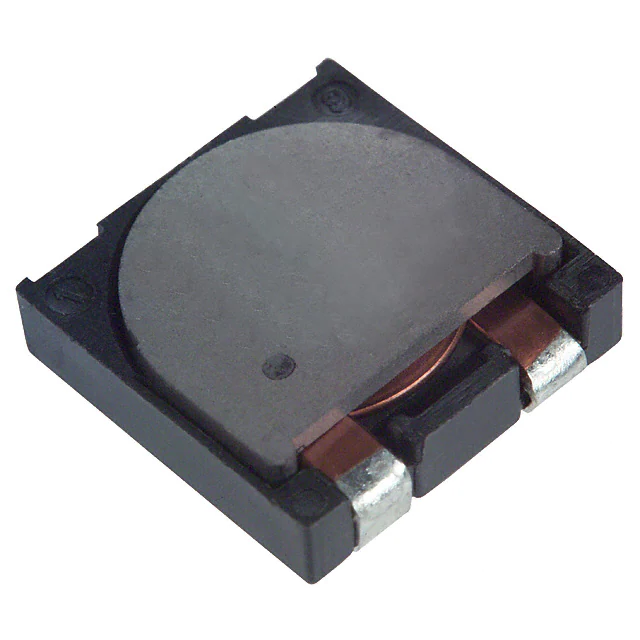

ETQ-P3H0R4BFAFIXED IND 360NH 23A 1.04MOHM SMD |
4,653 | 0.00 |
|
Datasheet |
PCC-D124H (NX1) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 360 nH | ±20% | 23 A | - | Shielded | 1.04mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.154" (3.90mm) |
|
HPL1005-1N0FIXED IND 1NH 1.8A 30 MOHM SMD |
3,578 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1 nH | ±0.2nH | 1.8 A | - | Unshielded | 30mOhm Max | 15 @ 300MHz | 7GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-1N5FIXED IND 1.5NH 1.2A 100MOHM SMD |
2,935 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.2nH | 1.2 A | - | Unshielded | 100mOhm Max | 15 @ 300MHz | 7GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-1N8FIXED IND 1.8NH 1A 140 MOHM SMD |
2,938 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.8 nH | ±0.2nH | 1 A | - | Unshielded | 140mOhm Max | 15 @ 300MHz | 7GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-3N3FIXED IND 3.3NH 700MA 250MOHM SM |
4,888 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.3 nH | ±0.2nH | 700 mA | - | Unshielded | 250mOhm Max | 13 @ 300MHz | 7GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-3N9FIXED IND 3.9NH 620MA 300MOHM SM |
2,627 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.9 nH | ±0.2nH | 620 mA | - | Unshielded | 300mOhm Max | 13 @ 300MHz | 7GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-4N7FIXED IND 4.7NH 500MA 500MOHM SM |
1,472 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 4.7 nH | ±0.2nH | 500 mA | - | Unshielded | 500mOhm Max | 13 @ 300MHz | 6GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-5N6FIXED IND 5.6NH 450MA 700MOHM SM |
2,481 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 5.6 nH | ±0.2nH | 450 mA | - | Unshielded | 700mOhm Max | 10 @ 300MHz | 5.5GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-6N8FIXED IND 6.8NH 430MA 800MOHM SM |
2,986 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 6.8 nH | ±0.2nH | 430 mA | - | Unshielded | 800mOhm Max | 10 @ 300MHz | 4.5GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-8N2FIXED IND 8.2NH 340MA 1.1OHM SMD |
2,488 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 8.2 nH | ±0.2nH | 340 mA | - | Unshielded | 1.1Ohm Max | 10 @ 300MHz | 4GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-10NFIXED IND 10NH 300MA 1.4 OHM SMD |
2,483 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 10 nH | ±2% | 300 mA | - | Unshielded | 1.4Ohm Max | 10 @ 300MHz | 3.5GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
|
HPL1005-12NFIXED IND 12NH 270MA 1.65OHM SMD |
3,953 | 0.00 |
|
Datasheet |
HPL | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 12 nH | ±2% | 270 mA | - | Unshielded | 1.65Ohm Max | 10 @ 300MHz | 3.5GHz | - | - | 300 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.013" (0.33mm) |
|
HPL0603-1N0FIXED IND 1NH 510MA 240 MOHM SMD |
3,314 | 0.00 |
|
Datasheet |
HPL | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1 nH | ±0.2nH | 510 mA | - | Unshielded | 240mOhm Max | 10 @ 300MHz | 10GHz | - | - | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
TFL0816-2N2FIXED IND 2.2NH 800MA 150MOHM SM |
3,711 | 0.00 |
|
Datasheet |
TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.2 nH | ±0.2nH | 800 mA | - | Unshielded | 150mOhm Max | 20 @ 300MHz | 6GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
TFL0816-3N9FIXED IND 3.9NH 700MA 200MOHM SM |
3,616 | 0.00 |
|
Datasheet |
TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.9 nH | ±0.2nH | 700 mA | - | Unshielded | 200mOhm Max | 20 @ 300MHz | 6GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
