Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3112-6R8-RFIXED IND 6.8UH 680MA 291MOHM SM |
1,022 | 0.00 |
|
Datasheet |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 680 mA | 680mA | Shielded | 291mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.047" (1.20mm) |
|
SD3114-331-RFIXED IND 330UH 113MA 11.78 OHM |
2,100 | 0.00 |
|
Datasheet |
SD3114 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 113 mA | 139mA | Shielded | 11.78Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|

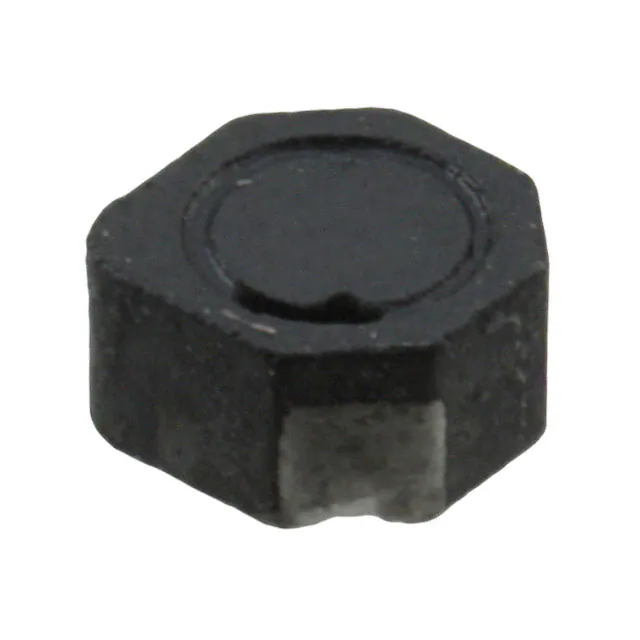

SD3118-102-RFIXED IND 1MH 87MA 20.9 OHM SMD |
2,438 | 0.00 |
|
Datasheet |
SD3118 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 87 mA | 83mA | Shielded | 20.9Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.071" (1.80mm) |
|
SD3814-100-RFIXED IND 10UH 713MA 311MOHM SMD |
4,887 | 0.00 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 713 mA | 851mA | Shielded | 311mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-101-RFIXED IND 100UH 228MA 3.048 OHM |
4,125 | 0.00 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 228 mA | 268mA | Shielded | 3.048Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-150-RFIXED IND 15UH 574MA 481MOHM SMD |
4,961 | 0.00 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±15% | 574 mA | 702mA | Shielded | 481mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-221-RFIXED IND 220UH 170MA 5.48OHM SM |
3,433 | 0.00 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±15% | 170 mA | 181mA | Shielded | 5.48Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-2R2-RFIXED IND 2.2UH 1.43A 77MOHM SMD |
1,283 | 0.00 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±15% | 1.43 A | 1.9A | Shielded | 77mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-4R7-RFIXED IND 4.7UH 1.06A 141MOHM SM |
3,116 | 0.00 |
|
Datasheet |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 1.06 A | 1.29A | Shielded | 141mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
SC301R0KRFIXED IND 1UH 420MA 1 OHM TH |
2,732 | 2.06 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±10% | 420 mA | - | Shielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 100°C | 25 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
ELC-06D2R2EFIXED IND 2.2UH 3.4A 26 MOHM TH |
3,310 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.2 µH | ±20% | 3.4 A | - | Unshielded | 26mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D2R7EFIXED IND 2.7UH 3.2A 28 MOHM TH |
3,358 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 2.7 µH | ±20% | 3.2 A | - | Unshielded | 28mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D3R3EFIXED IND 3.3UH 3A 27 MOHM TH |
1,859 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 3.3 µH | ±20% | 3 A | - | Unshielded | 27mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D4R7EFIXED IND 4.7UH 2.6A 33 MOHM TH |
2,221 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 4.7 µH | ±20% | 2.6 A | - | Unshielded | 33mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D5R6EFIXED IND 5.6UH 2.4A 35 MOHM TH |
4,529 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 5.6 µH | ±20% | 2.4 A | - | Unshielded | 35mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D6R8EFIXED IND 6.8UH 2A 41 MOHM TH |
2,981 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 6.8 µH | ±20% | 2 A | - | Unshielded | 41mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D8R2EFIXED IND 8.2UH 1.8A 48 MOHM TH |
4,318 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 8.2 µH | ±20% | 1.8 A | - | Unshielded | 48mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D100EFIXED IND 10UH 1.7A 52 MOHM TH |
3,648 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 10 µH | ±20% | 1.7 A | - | Unshielded | 52mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D120EFIXED IND 12UH 1.65A 54 MOHM TH |
4,289 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 12 µH | ±20% | 1.65 A | - | Unshielded | 54mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
|
|
ELC-06D150EFIXED IND 15UH 1.5A 59 MOHM TH |
1,500 | 0.00 |
|
Datasheet |
06D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 15 µH | ±20% | 1.5 A | - | Unshielded | 59mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.394" (10.00mm) |
