Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

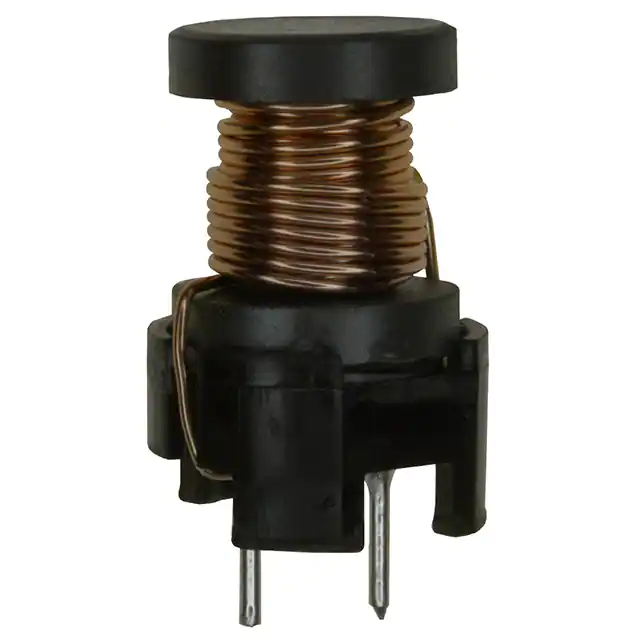

ELC-18E822FIXED IND 8.2MH 350MA 2.4 OHM TH |
3,099 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 350 mA | - | Shielded | 2.4Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E103FIXED IND 10MH 330MA 2.7 OHM TH |
1,305 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 330 mA | - | Shielded | 2.7Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
-1,45mm.jpg)
|
CK21253R3M-TFIXED IND 3.3UH 130MA 430MOHM SM |
4,231 | 0.00 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±20% | 130 mA | - | Unshielded | 430mOhm Max | 20 @ 10MHz | 41MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CK21256R8M-TFIXED IND 6.8UH 70MA 520MOHM SMD |
4,237 | 0.00 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 6.8 µH | ±20% | 70 mA | - | Unshielded | 520mOhm Max | 20 @ 4MHz | 29MHz | - | -40°C ~ 85°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CK2125R33M-TFIXED IND 330NH 400MA 280MOHM SM |
3,495 | 0.00 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 330 nH | ±20% | 400 mA | - | Unshielded | 280mOhm Max | 15 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CK2125R68M-TFIXED IND 680NH 300MA 450MOHM SM |
3,765 | 0.00 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 680 nH | ±20% | 300 mA | - | Unshielded | 450mOhm Max | 15 @ 25MHz | 105MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-0,90mm.jpg)
|
CKP32161R0M-TFIXED IND 1UH 1.1A 110 MOHM SMD |
3,341 | 0.00 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.1 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CKP32162R2M-TFIXED IND 2.2UH 900MA 140MOHM SM |
4,410 | 0.00 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 900 mA | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CKP32163R3M-TFIXED IND 3.3UH 800MA 160MOHM SM |
3,027 | 0.00 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 800 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
|
|
CKP32164R7M-TFIXED IND 4.7UH 700MA 200MOHM SM |
4,907 | 0.00 |
|
- |
CK, P Type | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 700 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) |
-0,33mm.jpg)
|
HK06032N0S-TFIXED IND 2NH 380MA 170 MOHM SMD |
2,454 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2 nH | ±0.3nH | 380 mA | - | Unshielded | 170mOhm Max | 4 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06032N4S-TFIXED IND 2.4NH 350MA 200MOHM SM |
4,550 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.4 nH | ±0.3nH | 350 mA | - | Unshielded | 200mOhm Max | 4 @ 100MHz | 8.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06033N6S-TFIXED IND 3.6NH 310MA 250MOHM SM |
2,389 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.6 nH | ±0.3nH | 310 mA | - | Unshielded | 250mOhm Max | 5 @ 100MHz | 6.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06034N3S-TFIXED IND 4.3NH 280MA 300MOHM SM |
1,295 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.3 nH | ±0.3nH | 280 mA | - | Unshielded | 300mOhm Max | 5 @ 100MHz | 5.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06035N1S-TFIXED IND 5.1NH 270MA 330MOHM SM |
2,310 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 5.1 nH | ±0.3nH | 270 mA | - | Unshielded | 330mOhm Max | 5 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06036N2S-TFIXED IND 6.2NH 250MA 380MOHM SM |
2,665 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 6.2 nH | ±0.3nH | 250 mA | - | Unshielded | 380mOhm Max | 5 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06037N5J-TFIXED IND 7.5NH 240MA 410MOHM SM |
1,397 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 7.5 nH | ±5% | 240 mA | - | Unshielded | 410mOhm Max | 5 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HK06039N1J-TFIXED IND 9.1NH 220MA 480MOHM SM |
1,989 | 0.00 |
|
Datasheet |
HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 9.1 nH | ±5% | 220 mA | - | Unshielded | 480mOhm Max | 5 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
HK100510NK-TFIXED IND 10NH 340MA 310MOHM SMD |
4,755 | 0.00 |
|
- |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 10 nH | ±10% | 340 mA | - | Unshielded | 310mOhm Max | 8 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
HK100515NK-TFIXED IND 15NH 320MA 460MOHM SMD |
4,809 | 0.00 |
|
- |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 15 nH | ±10% | 320 mA | - | Unshielded | 460mOhm Max | 8 @ 100MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
