Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSL1112RA-2R2M6R7-PFFIXED IND 2.2UH 6.7A 73 MOHM TH |
4,550 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 2.2 µH | ±20% | 6.7 A | 10A | Unshielded | 73mOhm Max | 15 @ 7.96MHz | 70MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
TSL1315RA-100K5R1-PFFIXED IND 10UH 5.1A 23 MOHM TH |
4,377 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 10 µH | ±10% | 5.1 A | 12A | Unshielded | 23mOhm Max | 90 @ 2.52MHz | 19MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-101K2R5-PFFIXED IND 100UH 2.5A 97 MOHM TH |
3,233 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 100 µH | ±10% | 2.5 A | 3.9A | Unshielded | 97mOhm Max | 50 @ 796kHz | 3.3MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-103JR24-PFFIXED IND 10MH 240MA 10 OHM TH |
2,035 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 10 mH | ±5% | 240 mA | 400mA | Unshielded | 10Ohm Max | 70 @ 79.6kHz | 300kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-150K4R5-PFFIXED IND 15UH 4.5A 28 MOHM TH |
3,475 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 15 µH | ±10% | 4.5 A | 9.5A | Unshielded | 28mOhm Max | 90 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-220K4R2-PFFIXED IND 22UH 4.2A 35 MOHM TH |
2,273 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 22 µH | ±10% | 4.2 A | 8.2A | Unshielded | 35mOhm Max | 80 @ 2.52MHz | 7.6MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-221K1R7-PFFIXED IND 220UH 1.7A 200 MOHM TH |
3,941 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 220 µH | ±10% | 1.7 A | 2.7A | Unshielded | 200mOhm Max | 40 @ 796kHz | 2.2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-222JR55-PFFIXED IND 2.2MH 550MA 2 OHM TH |
3,884 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 2.2 mH | ±5% | 550 mA | 830mA | Unshielded | 2Ohm Max | 40 @ 252kHz | 700kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-330K3R7-PFFIXED IND 33UH 3.7A 43 MOHM TH |
2,597 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 33 µH | ±10% | 3.7 A | 6.8A | Unshielded | 43mOhm Max | 70 @ 2.52MHz | 6.9MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-331K1R4-PFFIXED IND 330UH 1.4A 300 MOHM TH |
4,336 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 330 µH | ±10% | 1.4 A | 2.1A | Unshielded | 300mOhm Max | 30 @ 796kHz | 1.8MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-332JR44-PFFIXED IND 3.3MH 440MA 3.1 OHM TH |
4,888 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 3.3 mH | ±5% | 440 mA | 690mA | Unshielded | 3.1Ohm Max | 40 @ 252kHz | 600kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-470K3R4-PFFIXED IND 47UH 3.4A 52 MOHM TH |
2,432 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 47 µH | ±10% | 3.4 A | 5.7A | Unshielded | 52mOhm Max | 50 @ 2.52MHz | 5.6MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-471K1R1-PFFIXED IND 470UH 1.1A 430 MOHM TH |
4,498 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 470 µH | ±10% | 1.1 A | 1.8A | Unshielded | 430mOhm Max | 30 @ 796kHz | 1.5MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-472JR37-PFFIXED IND 4.7MH 370MA 4.4 OHM TH |
2,192 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 4.7 mH | ±5% | 370 mA | 580mA | Unshielded | 4.4Ohm Max | 40 @ 252kHz | 430kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-680K3R0-PFFIXED IND 68UH 3A 68 MOHM TH |
4,469 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 68 µH | ±10% | 3 A | 4.8A | Unshielded | 68mOhm Max | 40 @ 2.52MHz | 4.4MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|
|
TSL1315RA-681KR99-PFFIXED IND 680UH 990MA 610MOHM TH |
2,770 | 0.00 |
|
Datasheet |
TSL | Radial, Vertical Cylinder | Cut Tape (CT) | Obsolete | - | - | 680 µH | ±10% | 990 mA | 1.5A | Unshielded | 610mOhm Max | 30 @ 796kHz | 1.2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|

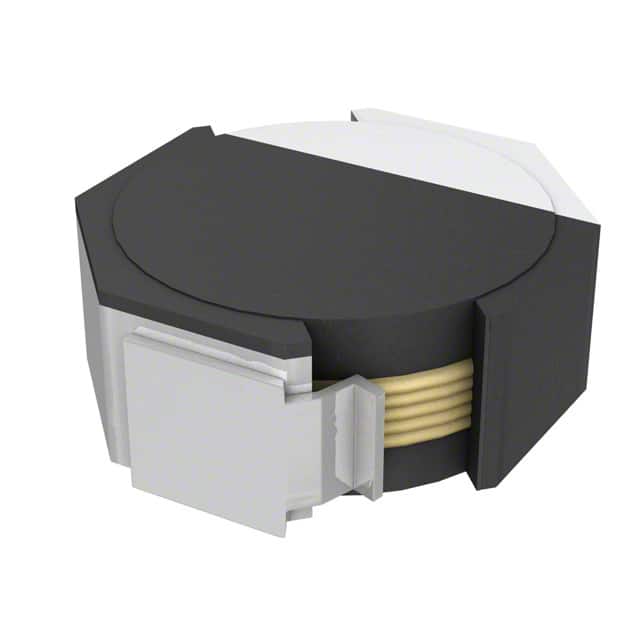

VLF4010AT-100MR64FIXED IND 10UH 640MA 480MOHM SMD |
3,443 | 0.00 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 640 mA | 640mA | Shielded | 480mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.039" (1.00mm) |
|

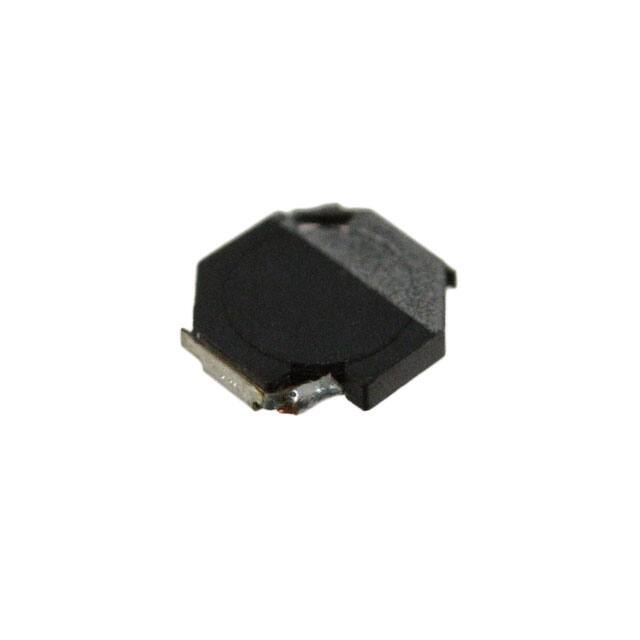

VLF5012AT-100MR80FIXED IND 10UH 800MA 350MOHM SMD |
3,904 | 0.00 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 1A | Shielded | 350mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|
|
VLF5012AT-2R2M1R5FIXED IND 2.2UH 1.5A 110MOHM SMD |
4,194 | 0.00 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 2.3A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|
|
VLF5012AT-4R7M1R2FIXED IND 4.7UH 1.2A 160MOHM SMD |
4,258 | 0.00 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.5A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
