Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

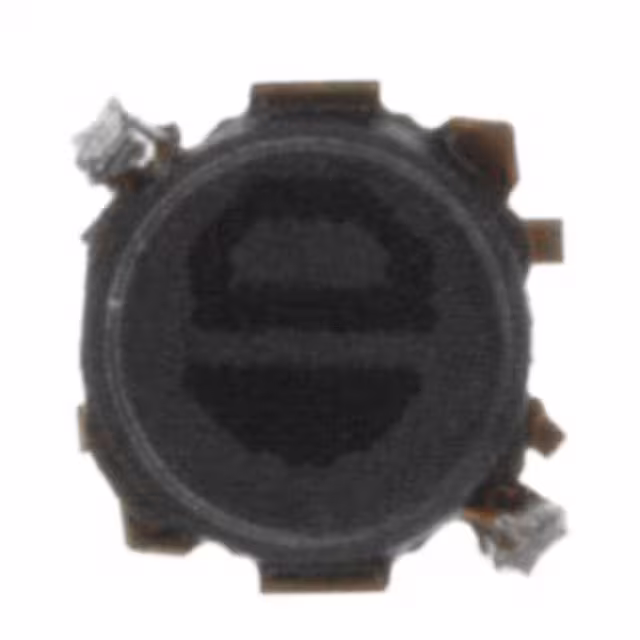

ELL-VEG2R2NFIXED IND 2.2UH 1.25A 110MOHM SM |
3,556 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.25 A | 1.1A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

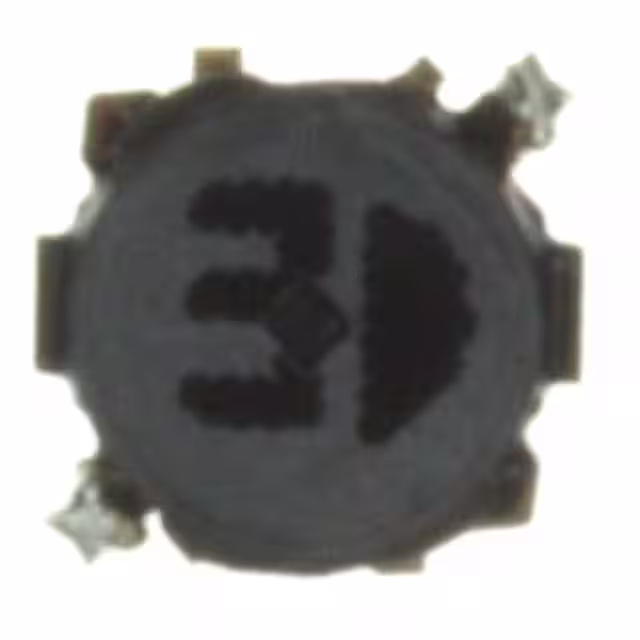

ELL-VEG3R3NFIXED IND 3.3UH 820MA 210MOHM SM |
3,410 | 0.49 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 820 mA | 1A | Shielded | 210mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

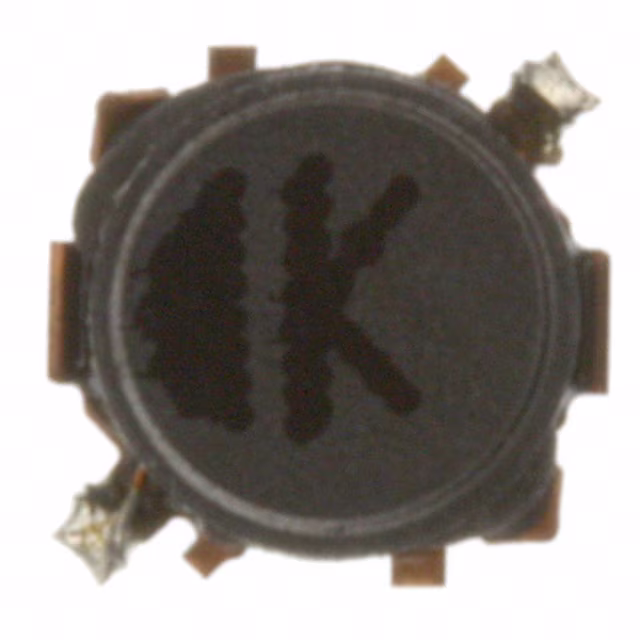

ELL-VEG6R8NFIXED IND 6.8UH 650MA 350MOHM SM |
1,383 | 0.49 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 650 mA | 580mA | Shielded | 350mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

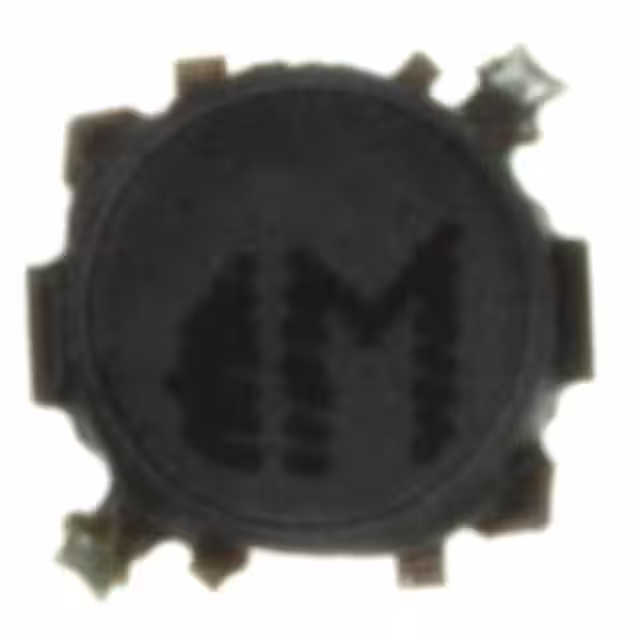

ELL-VEG100MFIXED IND 10UH 600MA 480MOHM SMD |
3,686 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 600 mA | 520mA | Shielded | 480mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

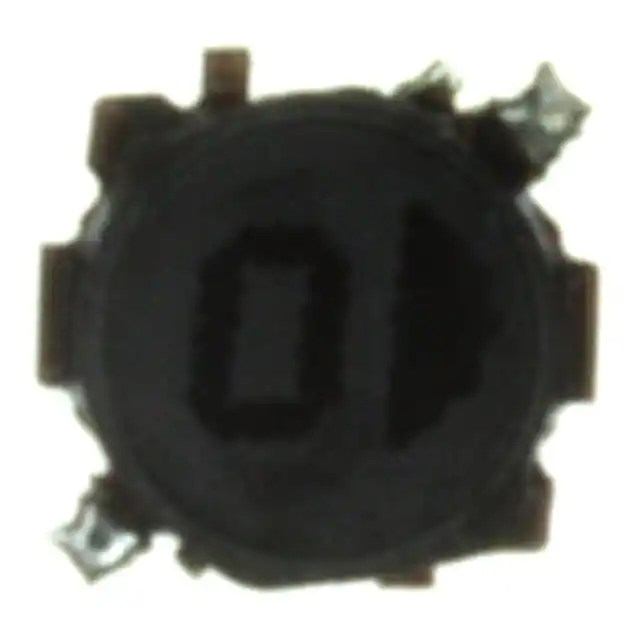

ELL-VEG150MFIXED IND 15UH 490MA 710MOHM SMD |
1,280 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 490 mA | 430mA | Shielded | 710mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

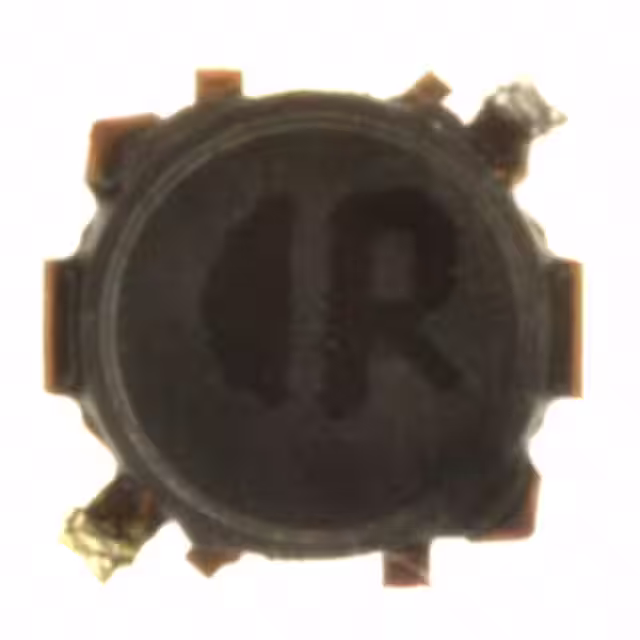

ELL-VEG220MFIXED IND 22UH 400MA 1.2 OHM SMD |
2,344 | 0.49 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 400 mA | 330mA | Shielded | 1.2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

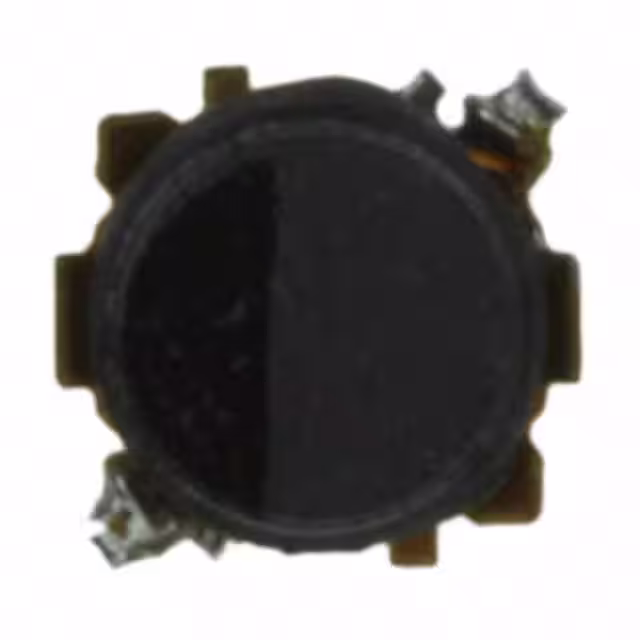

ELL-VFG1R0NCFIXED IND 1UH 1.7A 50 MOHM SMD |
2,880 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.7 A | 1.5A | Shielded | 50mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

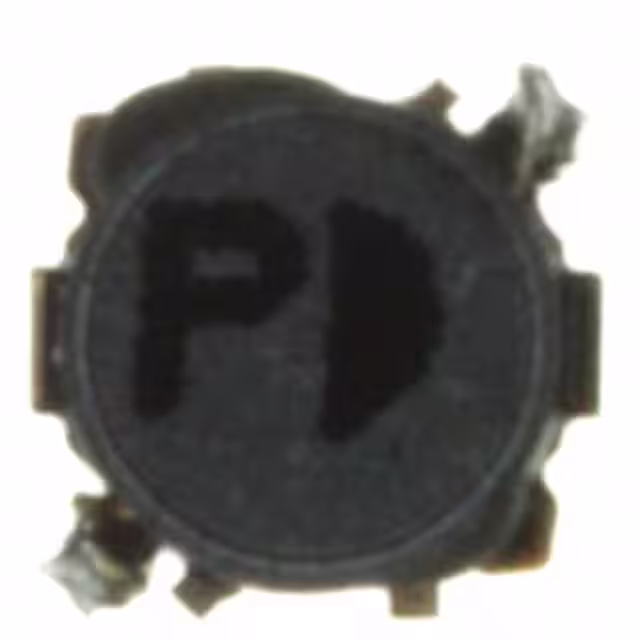

ELL-VFG2R2NCFIXED IND 2.2UH 1.4A 87 MOHM SMD |
2,369 | 0.53 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.4 A | 1.1A | Shielded | 87mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
ELL-VFG3R3NCFIXED IND 3.3UH 1.25A 110MOHM SM |
2,205 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.25 A | 980mA | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

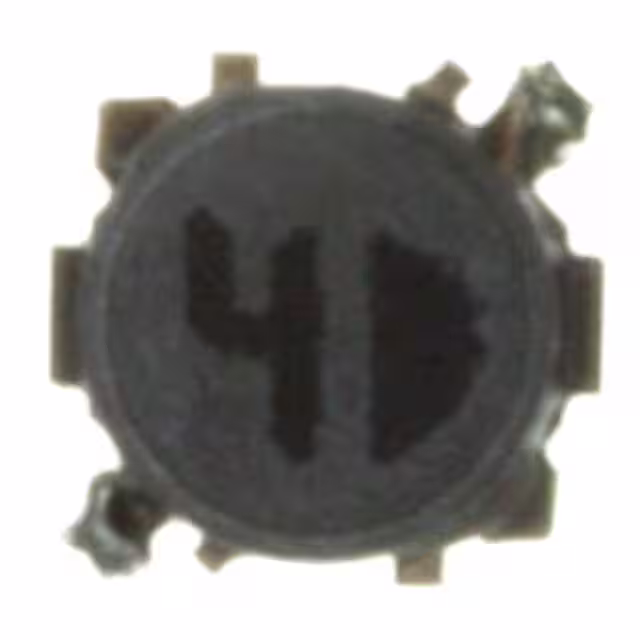

ELL-VFG4R7NCFIXED IND 4.7UH 1.05A 150MOHM SM |
2,920 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.05 A | 740mA | Shielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

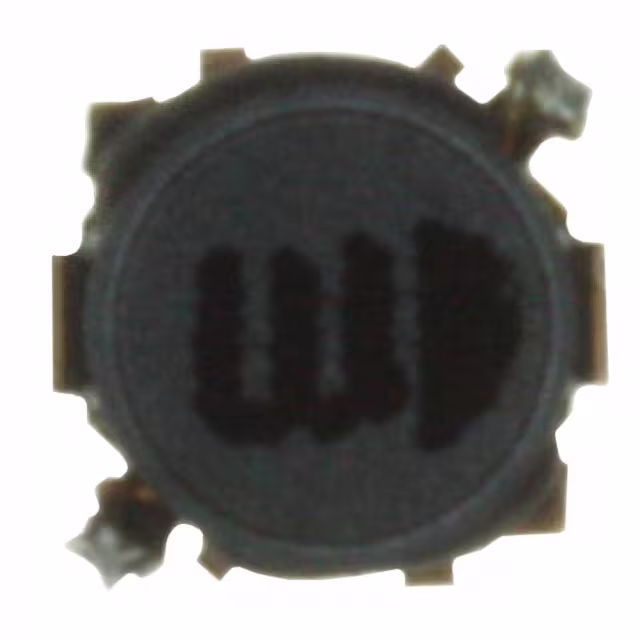

ELL-VFG100MCFIXED IND 10UH 640MA 380MOHM SMD |
2,985 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 640 mA | 550mA | Shielded | 380mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

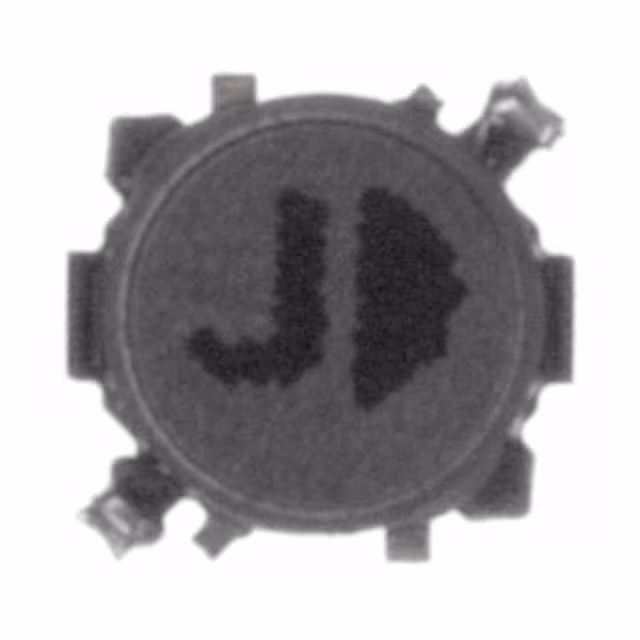

ELL-VFG220MCFIXED IND 22UH 430MA 710MOHM SMD |
1,166 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 430 mA | 350mA | Shielded | 710mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

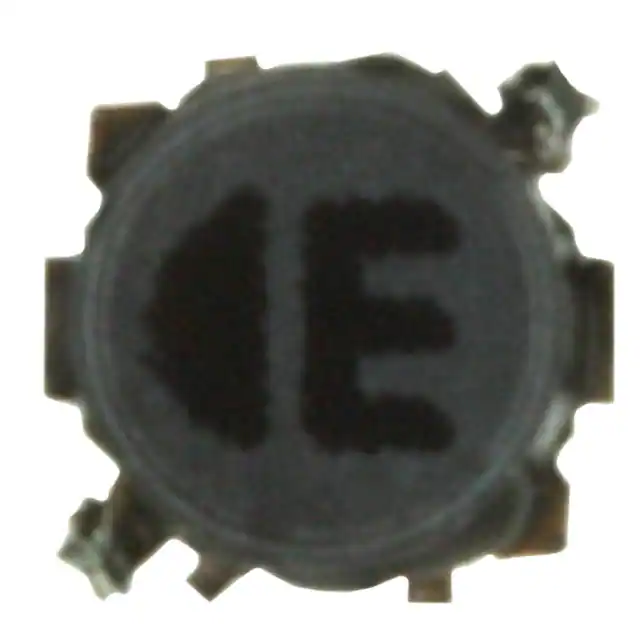

ELL-VGG3R3NFIXED IND 3.3UH 1.1A 130MOHM SMD |
3,876 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.1 A | 1.35A | Shielded | 130mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

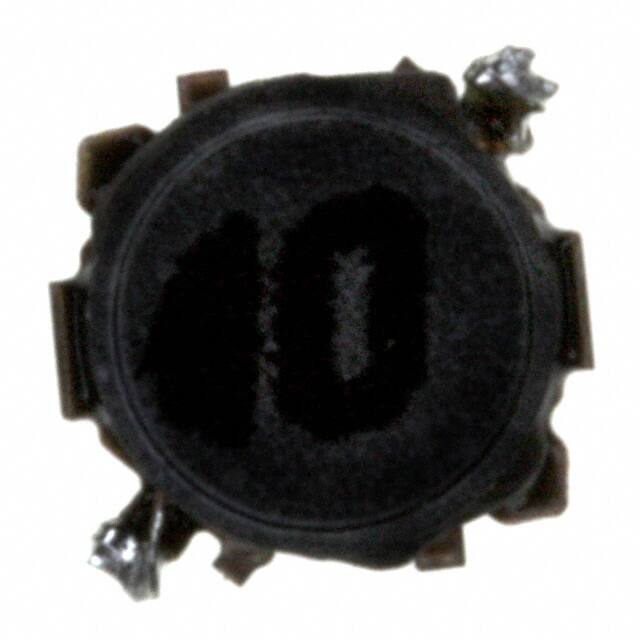

ELL-VGG150MFIXED IND 15UH 490MA 640MOHM SMD |
2,883 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 490 mA | 600mA | Shielded | 640mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ELL-VGG220MFIXED IND 22UH 460MA 800MOHM SMD |
1,788 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 460 mA | 500mA | Shielded | 800mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
6306-RCFIXED IND 10MH 100MA 31 OHM TH |
3,290 | 0.00 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 100 mA | - | Unshielded | 31Ohm Max | 95 @ 79.6kHz | 710kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|

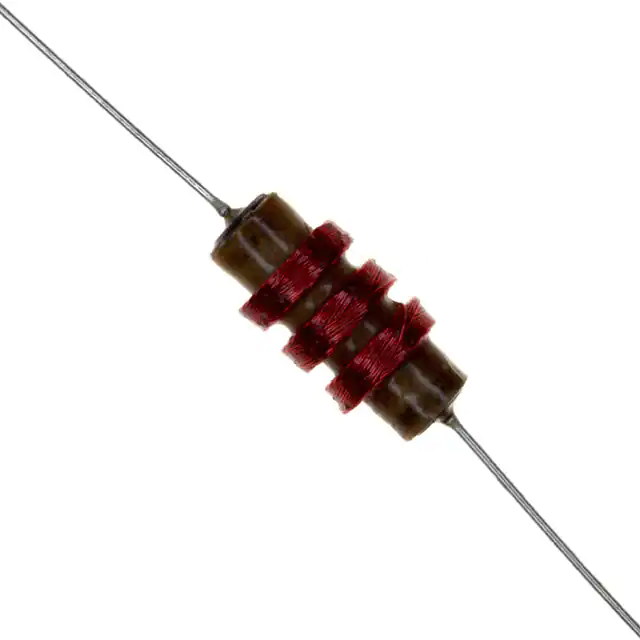

6302-RCFIXED IND 2.5MH 160MA 9 OHM TH |
2,088 | 0.00 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±5% | 160 mA | - | Unshielded | 9Ohm Max | 95 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - |
|

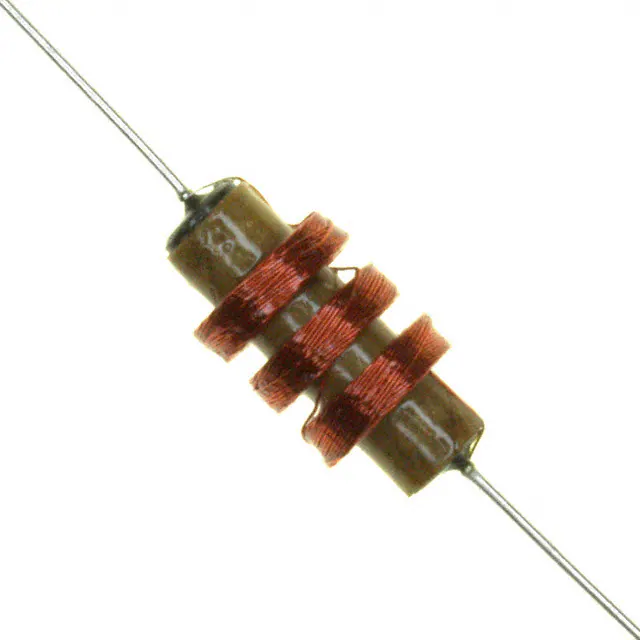

6304-RCFIXED IND 5MH 160MA 14 OHM TH |
3,571 | 0.00 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 mH | ±5% | 160 mA | - | Unshielded | 14Ohm Max | 80 @ 252kHz | 1MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
LTF5022T-1R8N3R6-LCFIXED IND 1.8UH 3.8A 32 MOHM SMD |
2,592 | 0.00 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 3.8 A | 3.6A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.087" (2.20mm) |
|
CI100505-1N2DFIXED IND 1.2NH 300MA 90MOHM SMD |
1,245 | 0.03 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 300 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
