Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7030-6R2FMFIXED IND 6.2UH SMD |
4,271 | 0.00 |
|
Datasheet |
SRP7030F | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.2 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | Flat Wire | Surface Mount | - | 0.299" L x 0.256" W (7.60mm x 6.50mm) | 0.126" (3.20mm) |
|
SRR1260-470YFIXED IND 47UH 2.6A 86 MOHM SMD |
1,700 | 0.00 |
|
Datasheet |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.6 A | 2.5A | Shielded | 86mOhm Max | 22 @ 2.52MHz | 7.63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

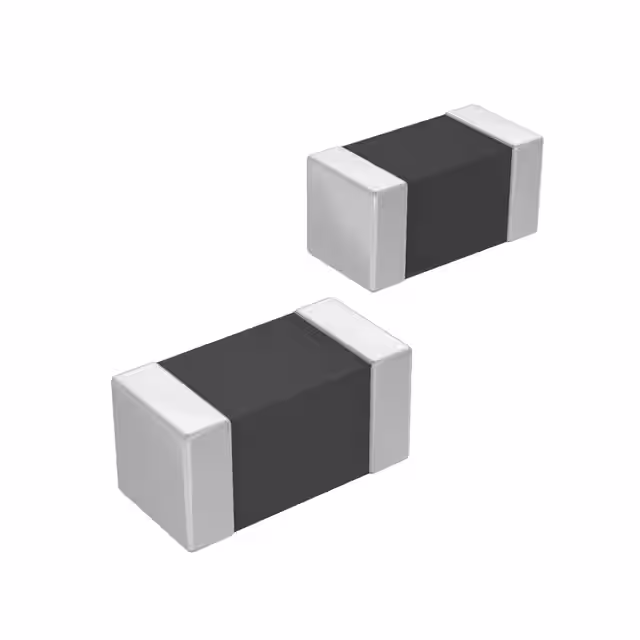

CM100505-10NJLFIXED IND 10NH 320MA 410MOHM SMD |
2,690 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 10 nH | ±5% | 320 mA | - | Unshielded | 410mOhm Max | 8 @ 100MHz | 2.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-12NJLFIXED IND 12NH 320MA 450MOHM SMD |
3,350 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 12 nH | ±5% | 320 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 2.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-15NJLFIXED IND 15NH 240MA 600MOHM SMD |
3,682 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 15 nH | ±5% | 240 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 2.5GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-18NJLFIXED IND 18NH 240MA 700MOHM SMD |
3,358 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 18 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 2.2GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-22NJLFIXED IND 22NH 200MA 800MOHM SMD |
4,745 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 22 nH | ±5% | 200 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 2GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-27NJLFIXED IND 27NH 200MA 1.2 OHM SMD |
4,651 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 27 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 1.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-33NJLFIXED IND 33NH 170MA 1.4 OHM SMD |
4,020 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 33 nH | ±5% | 170 mA | - | Unshielded | 1.4Ohm Max | 8 @ 100MHz | 1.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-47NJLFIXED IND 47NH 140MA 2.1 OHM SMD |
1,148 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 47 nH | ±5% | 140 mA | - | Unshielded | 2.1Ohm Max | 8 @ 100MHz | 1.8GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-56NJLFIXED IND 56NH 130MA 2.5 OHM SMD |
4,679 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 56 nH | ±5% | 130 mA | - | Unshielded | 2.5Ohm Max | 8 @ 100MHz | 1.5GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-68NJLFIXED IND 68NH 120MA 4 OHM SMD |
2,953 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 68 nH | ±5% | 120 mA | - | Unshielded | 4Ohm Max | 8 @ 100MHz | 1.5GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-82NJLFIXED IND 82NH 110MA 4.5 OHM SMD |
3,730 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 82 nH | ±5% | 110 mA | - | Unshielded | 4.5Ohm Max | 8 @ 100MHz | 1.4GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-R10JLFIXED IND 100NH 90MA 5.5 OHM SMD |
4,790 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 100 nH | ±5% | 90 mA | - | Unshielded | 5.5Ohm Max | 8 @ 100MHz | 1.2GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

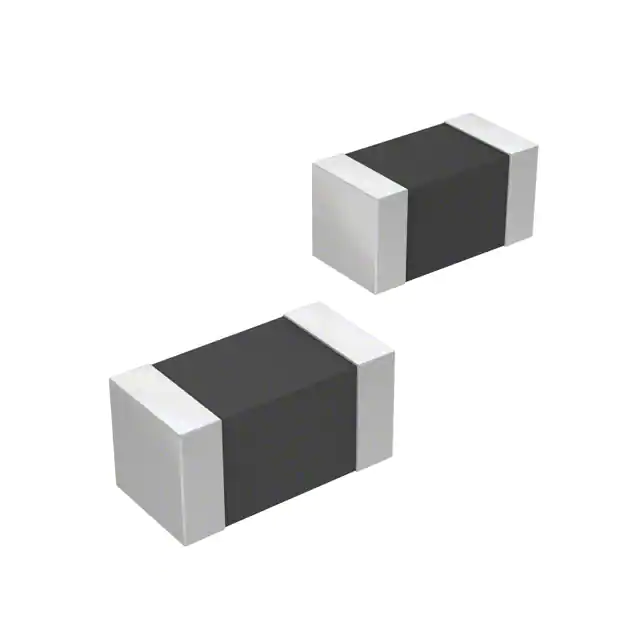

CM160808-R15JLFIXED IND 150NH 100MA 4.5OHM SMD |
3,760 | 0.00 |
|
Datasheet |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 150 nH | ±5% | 100 mA | - | Unshielded | 4.5Ohm Max | 5 @ 25.2MHz | 1.1GHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
|
CM160808-R22JLFIXED IND 220NH 70MA 7.5 OHM SMD |
3,432 | 0.00 |
|
Datasheet |
CM160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 220 nH | ±5% | 70 mA | - | Unshielded | 7.5Ohm Max | 4 @ 25.2MHz | 900MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
CM322522-221KLFIXED IND 220UH 45MA 21 OHM SMD |
4,878 | 0.00 |
|
Datasheet |
CM322522 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 45 mA | - | Unshielded | 21Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM322522-2R2KFIXED IND 2.2UH 190MA 950MOHM SM |
1,094 | 0.00 |
|
Datasheet |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 190 mA | - | Unshielded | 950mOhm Max | 30 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CW252016-100JFIXED IND 10UH 200MA 4.2 OHM SMD |
1,840 | 0.00 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 200 mA | - | Unshielded | 4.2Ohm | 18 @ 7.9MHz | 40MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-5R6JFIXED IND 5.6UH 180MA 4.9OHM SMD |
4,915 | 0.00 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 180 mA | - | Unshielded | 4.9Ohm | 18 @ 7.9MHz | 40MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
