Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-QF1N1ZFFIXED IND 1.1NH 400MA 60MOHM SMD |
1,864 | 0.00 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.1 nH | ±0.2nH | 400 mA | - | Unshielded | 60mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF5N1ZFFIXED IND 5.1NH 350MA 180MOHM SM |
2,330 | 0.34 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 5.1 nH | ±0.2nH | 350 mA | - | Unshielded | 180mOhm Max | 10 @ 100MHz | 4.7GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF9N1ZFFIXED IND 9.1NH 320MA 380MOHM SM |
1,059 | 0.28 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 9.1 nH | ±0.2nH | 320 mA | - | Unshielded | 380mOhm Max | 10 @ 100MHz | 3.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF13NGFFIXED IND 13NH 280MA 530MOHM SMD |
1,308 | 0.34 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 13 nH | ±2% | 280 mA | - | Unshielded | 530mOhm Max | 10 @ 100MHz | 2.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF20NGFFIXED IND 20NH 220MA 750MOHM SMD |
2,360 | 0.34 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 20 nH | ±2% | 220 mA | - | Unshielded | 750mOhm Max | 10 @ 100MHz | 2.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF30NGFFIXED IND 30NH 190MA 1.3 OHM SMD |
2,878 | 0.34 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 30 nH | ±2% | 190 mA | - | Unshielded | 1.3Ohm Max | 10 @ 100MHz | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
GL2R0KA7B250FIXED IND 2UH 250MA 1.45 OHM TH |
2,312 | 0.00 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 2 µH | ±10% | 250 mA | - | Unshielded | 1.45Ohm | - | - | - | -55°C ~ 125°C | - | - | Through Hole | - | 0.102" L x 0.065" Sq Pyramid (2.59mm x 1.65mm) | - |
|
|
GL110KA7B115FIXED IND 11UH 115MA 7 OHM TH |
1,926 | 0.00 |
|
Datasheet |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | 11 µH | ±10% | 115 mA | - | Unshielded | 7Ohm | - | - | - | -55°C ~ 125°C | - | - | Through Hole | - | 0.182" L x 0.072" Sq Pyramid (4.62mm x 1.83mm) | - |
|
ELL-5PRR47NFIXED IND 470NH 3.9A 12 MOHM SMD |
1,692 | 0.00 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±30% | 3.9 A | 5.5A | Shielded | 12mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

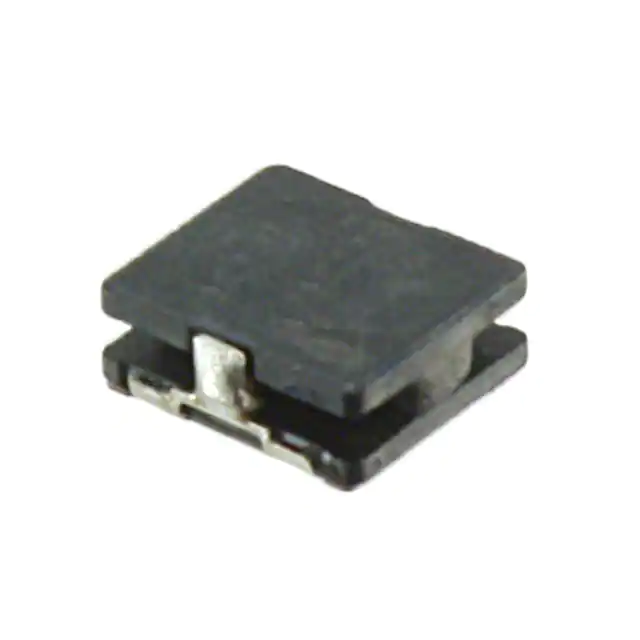

ELL-5PR1R0NFIXED IND 1UH 3A 21 MOHM SMD |
1,685 | 0.86 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 3 A | 4.5A | Shielded | 21mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR1R2NFIXED IND 1.2UH 3A 21 MOHM SMD |
2,349 | 0.00 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 3 A | 4.2A | Shielded | 21mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR1R5NFIXED IND 1.5UH 2.85A 25MOHM SMD |
1,692 | 0.86 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 2.85 A | 4A | Shielded | 25mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

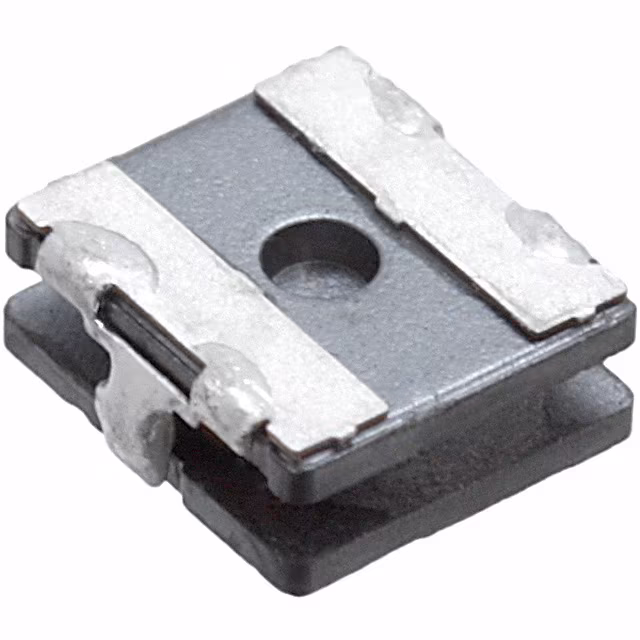

ELL-5PR2R2NFIXED IND 2.2UH 2.4A 32 MOHM SMD |
4,411 | 0.00 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 2.4 A | 3.2A | Shielded | 32mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR3R3NFIXED IND 3.3UH 2.3A 37 MOHM SMD |
3,982 | 0.00 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2.3 A | 2.6A | Shielded | 37mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR4R7NFIXED IND 4.7UH 1.8A 56 MOHM SMD |
1,677 | 0.00 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.8 A | 2.2A | Shielded | 56mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR6R8NFIXED IND 6.8UH 1.4A 85 MOHM SMD |
3,440 | 0.86 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.4 A | 1.7A | Shielded | 85mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
ELL-5PR100MFIXED IND 10UH 1.06A 150MOHM SMD |
3,168 | 0.86 |
|
Datasheet |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±30% | 1.06 A | 1.4A | Shielded | 150mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

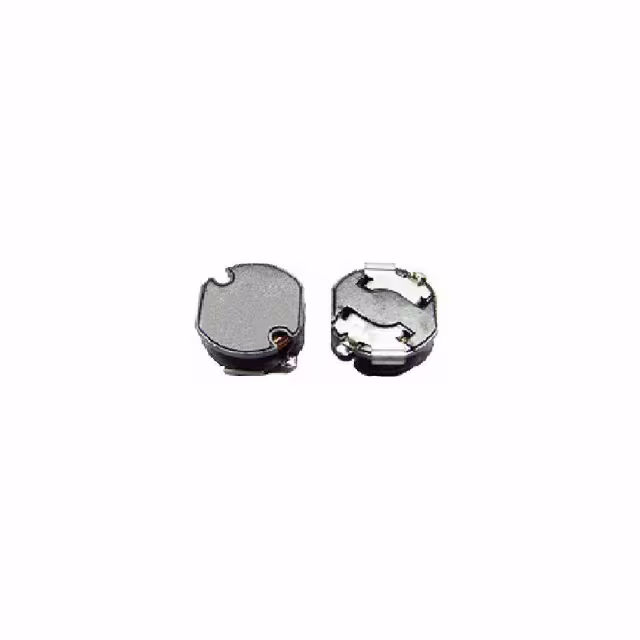

SC10F-100FIXED IND 10UH 4.5A 47 MOHM SMD |
4,523 | 0.00 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.5 A | 2.6A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|
|
SC10F-102FIXED IND 1MH 440MA 2.8 OHM SMD |
4,110 | 0.00 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 440 mA | 310mA | Unshielded | 2.8Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
|
|
SC10F-180FIXED IND 18UH 3.4A 67 MOHM SMD |
1,980 | 0.00 |
|
Datasheet |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 3.4 A | 2.15A | Unshielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | 0.197" (5.00mm) |
