Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-561M-RCFIXED IND 560UH 440MA 1.34OHM SM |
2,785 | 0.00 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 440 mA | 740mA | Shielded | 1.34Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
PM125S-680M-RCFIXED IND 68UH 1.26A 170MOHM SMD |
4,598 | 0.00 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.26 A | 2.08A | Shielded | 170mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
PM125S-681M-RCFIXED IND 680UH 400MA 1.78OHM SM |
1,633 | 0.00 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | 740mA | Shielded | 1.78Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
PM125S-821M-RCFIXED IND 820UH 360MA 2 OHM SMD |
1,374 | 0.00 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 360 mA | 260mA | Shielded | 2Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|

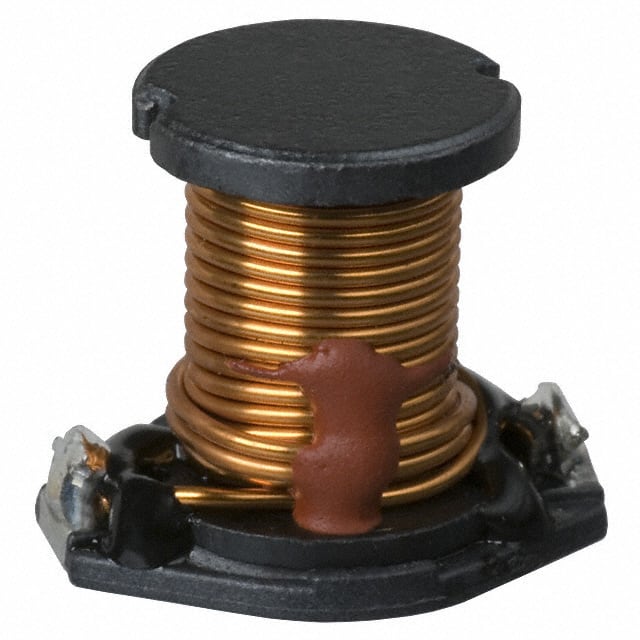

PM3340-471M-RCFIXED IND 470UH 300MA 950MOHM SM |
4,973 | 0.00 |
|
Datasheet |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 300 mA | 1A | Unshielded | 950mOhm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | 0.453" (11.50mm) |
|

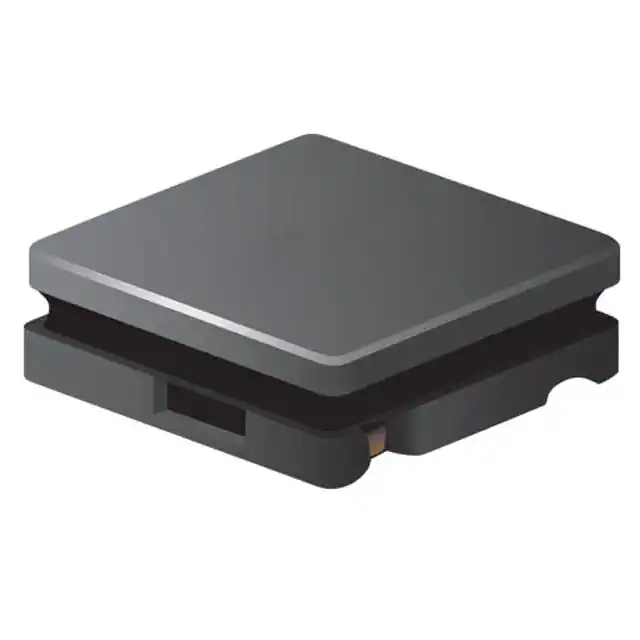

SRN3010-1R0YFIXED IND 1UH 2.3A 63 MOHM SMD |
3,742 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.3 A | 2.3A | Shielded | 63mOhm Max | 7 @ 7.96MHz | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-1R2YFIXED IND 1.2UH 2.1A 81 MOHM SMD |
2,790 | 0.19 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 2.1 A | 1.9A | Shielded | 81mOhm Max | 7 @ 7.96MHz | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-1R5YFIXED IND 1.5UH 2A 91 MOHM SMD |
1,727 | 0.19 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2 A | 1.65A | Shielded | 91mOhm Max | 7 @ 7.96MHz | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-2R2MFIXED IND 2.2UH 1.9A 96 MOHM SMD |
3,264 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.3A | Shielded | 96mOhm Max | 7 @ 7.96MHz | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-3R3MFIXED IND 3.3UH 1.8A 156MOHM SMD |
2,142 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.8 A | 1.05A | Shielded | 156mOhm Max | 7 @ 7.96MHz | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-4R7MFIXED IND 4.7UH 1.7A 210MOHM SMD |
3,917 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 850mA | Shielded | 210mOhm Max | 7 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-6R8MFIXED IND 6.8UH 1.3A 312MOHM SMD |
4,159 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 700mA | Shielded | 312mOhm Max | 7 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-100MFIXED IND 10UH 900MA 420MOHM SMD |
4,045 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 600mA | Shielded | 420mOhm Max | 11 @ 2.52MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-150MFIXED IND 15UH 800MA 612MOHM SMD |
2,750 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 500mA | Shielded | 612mOhm Max | 11 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-220MFIXED IND 22UH 700MA 936MOHM SMD |
4,615 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 400mA | Shielded | 936mOhm Max | 14 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

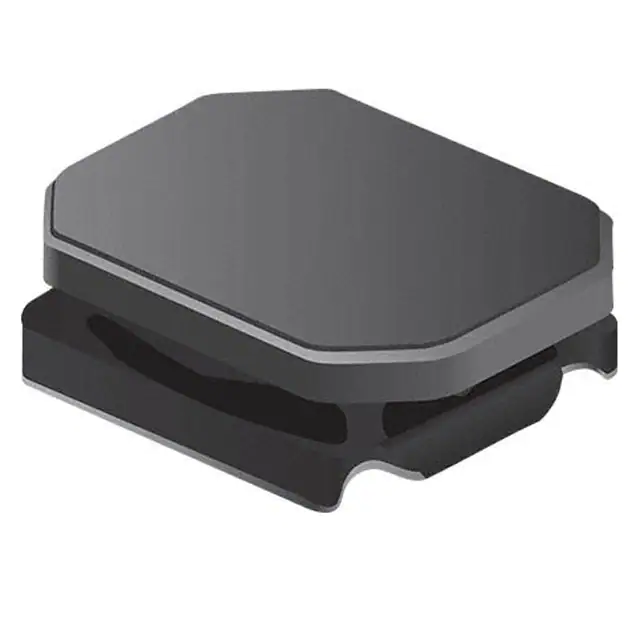

SRN3010-330MFIXED IND 33UH 500MA 1.32OHM SMD |
1,826 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 320mA | Shielded | 1.32Ohm Max | 14 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010-470MFIXED IND 47UH 350MA 1.92OHM SMD |
2,285 | 0.46 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 280mA | Shielded | 1.92Ohm Max | 20 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
CW100505-27NJ3FIXED IND 27NH 400MA 298MOHM SMD |
4,946 | 0.00 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 298mOhm | 26 @ 250MHz | 2.48GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-56NJ3FIXED IND 56NH 200MA 970MOHM SMD |
4,875 | 0.00 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 200 mA | - | Unshielded | 970mOhm | 22 @ 200MHz | 1.76GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-39NJ3FIXED IND 39NH 320MA 550MOHM SMD |
4,538 | 0.00 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 320 mA | - | Unshielded | 550mOhm | 25 @ 250MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
