Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAL45VB6R8KFIXED IND 6.8UH 2A 97 MOHM TH |
1,071 | 0.00 |
|
Datasheet |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 6.8 µH | ±10% | 2 A | 2.2A | Unshielded | 97mOhm Max | - | - | - | -25°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45VB820KFIXED IND 82UH 620MA 920 MOHM TH |
2,890 | 0.00 |
|
Datasheet |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 82 µH | ±10% | 620 mA | 620mA | Unshielded | 920mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45VB822KFIXED IND 8.2MH 50MA 125 OHM TH |
2,240 | 0.00 |
|
Datasheet |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 8.2 mH | ±10% | 50 mA | 75mA | Unshielded | 125Ohm Max | - | - | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45VB8R2KFIXED IND 8.2UH 1.9A 110 MOHM TH |
1,531 | 0.00 |
|
Datasheet |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 8.2 µH | ±10% | 1.9 A | 2A | Unshielded | 110mOhm Max | - | - | - | -25°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
-1,80mm.jpg)
|
CKP20161R0M-TFIXED IND 1UH 1.3A 120 MOHM SMD |
3,936 | 0.00 |
|
Datasheet |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.3 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CKP20163R3M-TFIXED IND 3.3UH 1.1A 160MOHM SMD |
2,085 | 0.00 |
|
Datasheet |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 1.1 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CKP2016R47M-TFIXED IND 470NH 1.6A 75 MOHM SMD |
1,617 | 0.00 |
|
Datasheet |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±20% | 1.6 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-0,22mm.jpg)
|
HK04021N5S-TFIXED IND 1.5NH 330MA 240MOHM SM |
4,831 | 0.00 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 nH | ±0.3nH | 330 mA | - | Unshielded | 240mOhm Max | 3 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HK04026N8J-TFIXED IND 6.8NH 180MA 710MOHM SM |
2,306 | 0.00 |
|
Datasheet |
HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 6.8 nH | ±5% | 180 mA | - | Unshielded | 710mOhm Max | 3 @ 100MHz | 4.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
.jpg)
|
HK10055N6J-TFIXED IND 5.6NH 300MA 230MOHM SM |
4,037 | 0.00 |
|
- |
HK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 5.6 nH | ±5% | 300 mA | - | Unshielded | 230mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
HKQ0603W2N6B-TFIXED IND 2.6NH 560MA 160MOHM SM |
4,268 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.6 nH | ±0.1nH | 560 mA | - | Unshielded | 160mOhm Max | 15 @ 500MHz | 8.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603W2N7B-TFIXED IND 2.7NH 510MA 190MOHM SM |
4,229 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.7 nH | ±0.1nH | 510 mA | - | Unshielded | 190mOhm Max | 15 @ 500MHz | 8.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603W3N6B-TFIXED IND 3.6NH 500MA 200MOHM SM |
3,340 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.6 nH | ±0.1nH | 500 mA | - | Unshielded | 200mOhm Max | 15 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

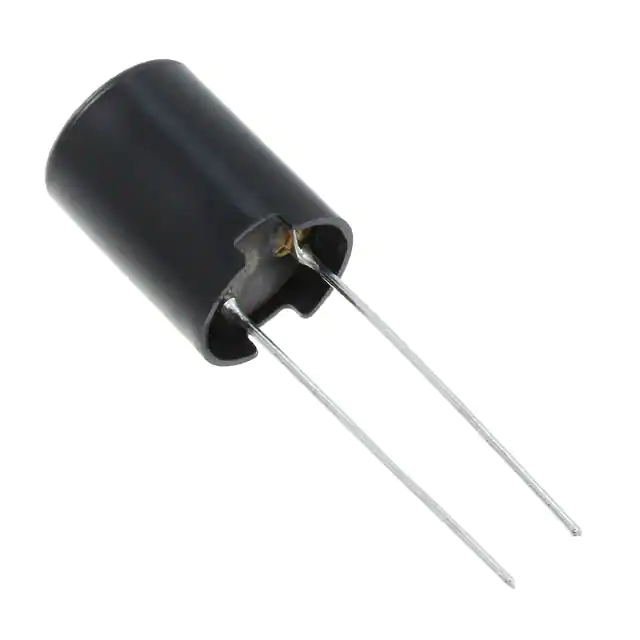

LHLC08TB1R0NFIXED IND 1UH 5.4A 13 MOHM TH |
3,016 | 0.00 |
|
Datasheet |
LH, LC Type | Radial, Vertical Cylinder | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±30% | 5.4 A | - | Unshielded | 13mOhm Max | 40 @ 76MHz | 76MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.374" (9.50mm) |
|
NR6028T221MFIXED IND 220UH SMD |
4,059 | 0.15 |
|
- |
NR | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | - | - | Shielded | - | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
.jpg)
|
MPI2520R0-2R2-RFIXED IND 2.2UH 2.2A 124MOHM SMD |
2,247 | 0.00 |
|
Datasheet |
MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 2.2 µH | ±20% | 2.2 A | 2.4A | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MPI2520R1-5R6-RFIXED IND 5.6UH 1.5A 240MOHM SMD |
2,060 | 0.00 |
|
Datasheet |
MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 5.6 µH | ±20% | 1.5 A | 1.5A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MPI2520R1-6R8-RFIXED IND 6.8UH 1.3A 360MOHM SMD |
2,558 | 0.00 |
|
Datasheet |
MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Metal Composite | 6.8 µH | ±20% | 1.3 A | 1.3A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Series.jpg)
|
PE-0402CC820JTTFIXED IND 82NH 150MA 1.3 OHM SMD |
1,610 | 0.00 |
|
Datasheet |
0402CC | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 82 nH | ±5% | 150 mA | - | Unshielded | 1.3Ohm Max | 8 @ 100MHz | 600MHz | - | - | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQH44PN100MGRLFIXED IND 10UH 660MA 324MOHM SMD |
3,378 | 0.00 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 660 mA | 800mA | Shielded | 324mOhm Max | - | 13MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
