Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

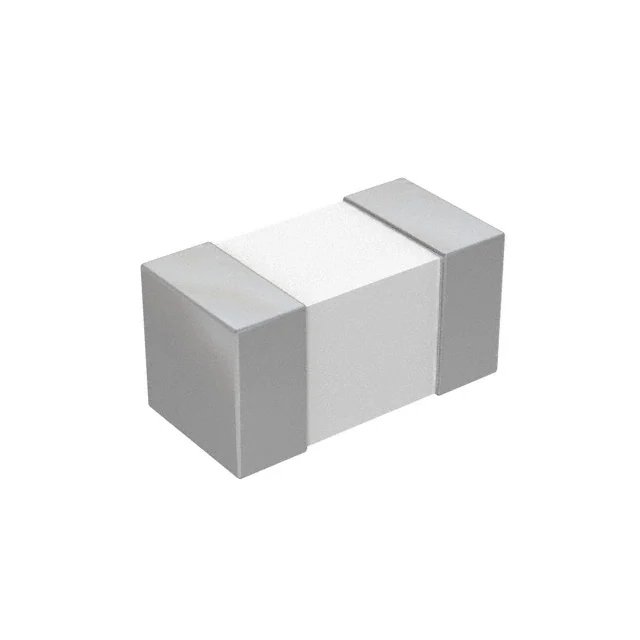

AIMC-0402HQ-15NH-TFIXED IND 15NH 430MA 220MOHM SMD |
1,401 | 0.10 |
|
Datasheet |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±3% | 430 mA | - | Unshielded | 220mOhm Max | 22 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-2N0C-TFIXED IND 2NH 800MA 70 MOHM SMD |
4,185 | 0.10 |
|
Datasheet |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.2nH | 800 mA | - | Unshielded | 70mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-2N9C-TFIXED IND 2.9NH 700MA 90MOHM SMD |
3,719 | 0.10 |
|
Datasheet |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.9 nH | ±0.2nH | 700 mA | - | Unshielded | 90mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-5N6C-TFIXED IND 5.6NH 600MA 130MOHM SM |
1,044 | 0.10 |
|
Datasheet |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.2nH | 600 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
AIMC-0402HQ-8N7J-TFIXED IND 8.7NH 500MA 170MOHM SM |
1,061 | 0.10 |
|
Datasheet |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.7 nH | ±5% | 500 mA | - | Unshielded | 170mOhm Max | 22 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
ASMCI-0603-4R7N-TFIXED IND 4.7UH 100MA 600MOHM SM |
1,176 | 0.09 |
|
Datasheet |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±30% | 100 mA | - | Shielded | 600mOhm | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ASMCI-0603-R10N-TFIXED IND 100NH 700MA 140MOHM SM |
1,698 | 0.09 |
|
Datasheet |
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±30% | 700 mA | - | Shielded | 140mOhm | - | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

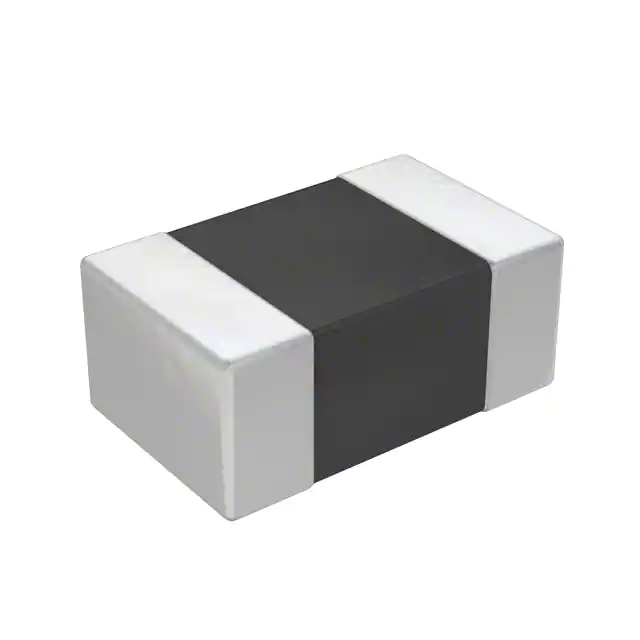

ASMCI-0805-100N-TFIXED IND 10UH 60MA 500 MOHM SMD |
3,960 | 0.11 |
|
Datasheet |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±30% | 60 mA | - | Shielded | 500mOhm | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ASMCI-0805-1R0N-TFIXED IND 1UH 300MA 200 MOHM SMD |
1,708 | 0.11 |
|
Datasheet |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±30% | 300 mA | - | Shielded | 200mOhm | - | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
ASMCI-0805-2R2N-TFIXED IND 2.2UH 220MA 280MOHM SM |
3,662 | 0.11 |
|
Datasheet |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±30% | 220 mA | - | Shielded | 280mOhm | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
ASMCI-0805-R10N-TFIXED IND 100NH 1A 70 MOHM SMD |
4,186 | 0.11 |
|
Datasheet |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±30% | 1 A | - | Shielded | 70mOhm | - | 235MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
ASMCI-0805-R22N-TFIXED IND 220NH 800MA 130MOHM SM |
4,944 | 0.11 |
|
Datasheet |
ASMCI-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±30% | 800 mA | - | Shielded | 130mOhm | - | 170MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

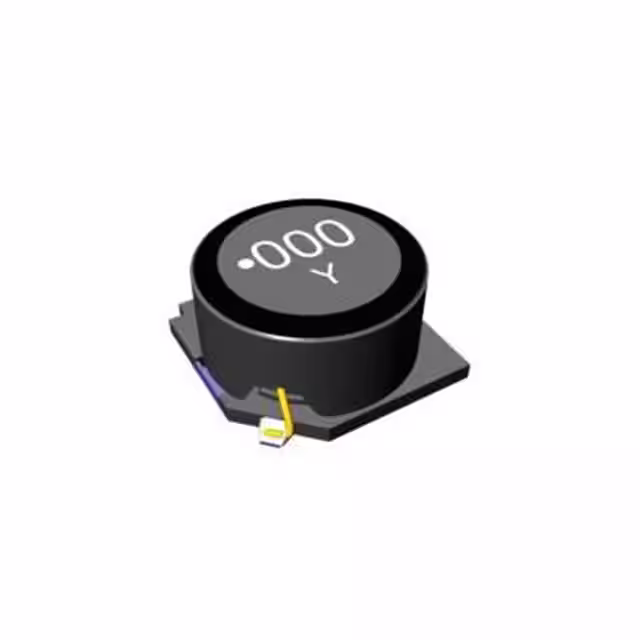

NS10145T1R0NNVFIXED IND 1UH 8.9A 5.88 MOHM SMD |
3,161 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.9 A | 12.54A | Shielded | 5.88mOhm Max | - | 116MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T5R6NNVFIXED IND 5.6UH 4.45A 21.72 MOHM |
3,975 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 4.45 A | 5.85A | Shielded | 21.72mOhm Max | - | 26.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T100MNVFIXED IND 10UH 3.1A 32.4MOHM SMD |
1,394 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 4.22A | Shielded | 32.4mOhm Max | - | 21.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T150MNVFIXED IND 15UH 3A 45.72 MOHM SMD |
2,045 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3 A | 3.44A | Shielded | 45.72mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T220MNVFIXED IND 22UH 2.3A 68.4MOHM SMD |
1,043 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 2.87A | Shielded | 68.4mOhm Max | - | 13.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T330MNVFIXED IND 33UH 1.9A 105.6MOHM SM |
2,082 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.9 A | 2.36A | Shielded | 105.6mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T470MNVFIXED IND 47UH 1.5A 156 MOHM SMD |
2,279 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2A | Shielded | 156mOhm Max | - | 9.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T101MNVFIXED IND 100UH 1.1A 276MOHM SMD |
4,151 | 0.00 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 1.4A | Shielded | 276mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
