Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,22mm.jpg)
|
HKQ040213NH-EFIXED IND 13NH 140MA 1.32OHM SMD |
2,198 | 0.00 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 13 nH | ±3% | 140 mA | - | Unshielded | 1.32Ohm Max | 11 @ 500MHz | 3.4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040213NJ-EFIXED IND 13NH 140MA 1.32OHM SMD |
2,205 | 0.00 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 13 nH | ±5% | 140 mA | - | Unshielded | 1.32Ohm Max | 11 @ 500MHz | 3.4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040224NH-EFIXED IND 24NH 120MA 2.23OHM SMD |
3,432 | 0.00 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 24 nH | ±3% | 120 mA | - | Unshielded | 2.23Ohm Max | 12 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040224NJ-EFIXED IND 24NH 120MA 2.23OHM SMD |
1,547 | 0.00 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 24 nH | ±5% | 120 mA | - | Unshielded | 2.23Ohm Max | 12 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040230NH-EFIXED IND 30NH 120MA 2.8 OHM SMD |
4,436 | 0.00 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 30 nH | ±3% | 120 mA | - | Unshielded | 2.8Ohm Max | 11 @ 500MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
|
HKQ040230NJ-EFIXED IND 30NH 120MA 2.8 OHM SMD |
4,542 | 0.00 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 30 nH | ±5% | 120 mA | - | Unshielded | 2.8Ohm Max | 11 @ 500MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|

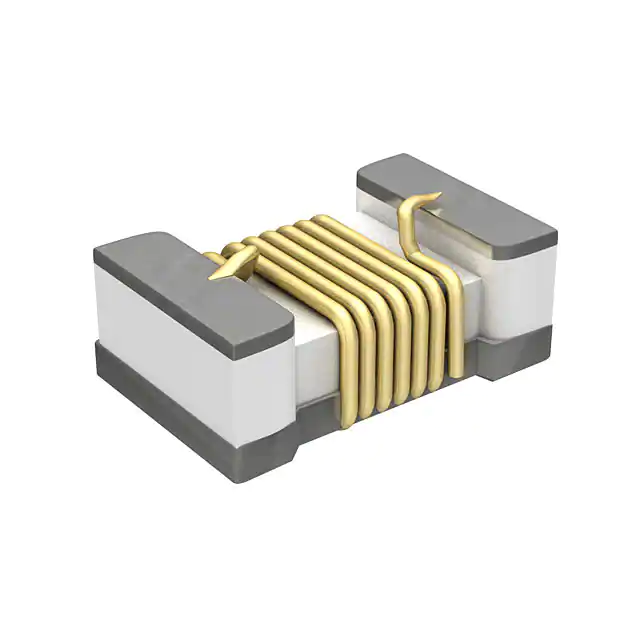

LQW04CA60NK00DFIXED IND 60NH 620MA 180MOHM SMD |
4,400 | 0.00 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 60 nH | ±10% | 620 mA | - | Unshielded | 180mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CA90NK00DFIXED IND 90NH 520MA 240MOHM SMD |
3,378 | 0.00 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 90 nH | ±10% | 520 mA | - | Unshielded | 240mOhm Max | - | 2.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR12K00DFIXED IND 120NH 510MA 280MOHM SM |
2,687 | 0.00 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 510 mA | - | Unshielded | 280mOhm Max | - | 2.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR29K00DFIXED IND 290NH 270MA 940MOHM SM |
2,302 | 0.00 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±10% | 270 mA | - | Unshielded | 940mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR45K00DFIXED IND 450NH 200MA 1.23OHM SM |
2,448 | 0.00 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 450 nH | ±10% | 200 mA | - | Unshielded | 1.23Ohm Max | - | 850MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR51K00DFIXED IND 510NH 200MA 1.31OHM SM |
4,337 | 0.00 |
|
Datasheet |
LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 510 nH | ±10% | 200 mA | - | Unshielded | 1.31Ohm Max | - | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
MPI4020V2-1R2-RFIXED IND 1.2UH 6.5A 28 MOHM SMD |
1,340 | 0.00 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.2 µH | ±20% | 6.5 A | 6.8A | Shielded | 28mOhm Max | - | 52MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
L1007C100MDWITFIXED IND 10UH 680MA 360MOHM SMD |
4,688 | 0.38 |
|
Datasheet |
L-DWI | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 680 mA | 480mA | - | 360mOhm | - | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
#FSLM2520-820J=P2FIXED IND 82UH 65MA 12.5 OHM SMD |
2,422 | 0.00 |
|
Datasheet |
LLM2520 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 65 mA | - | - | 12.5Ohm Max | 25 @ 2.52MHz | 11MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.067" (1.70mm) |
|

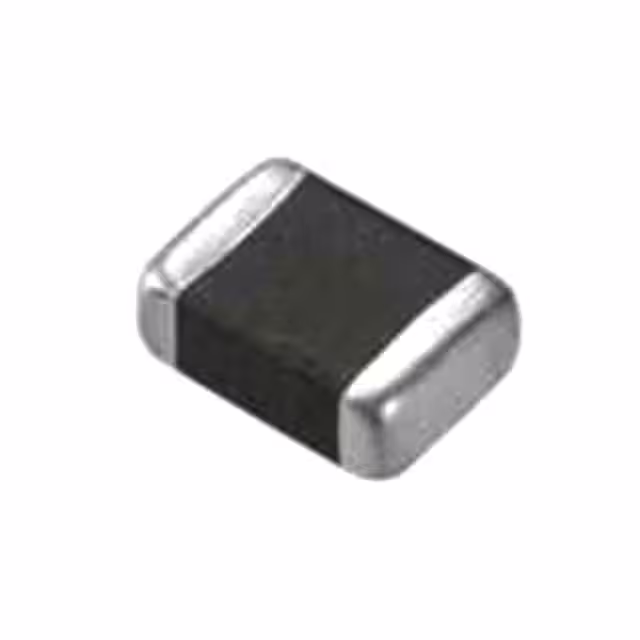

CIG22E1R0SNEFIXED IND 1UH |
1,046 | 0.00 |
|
- |
CIG22E | - | Tape & Reel (TR) | Obsolete | - | - | 1 µH | - | - | - | Shielded | - | - | - | - | - | 1 MHz | - | - | - | - | 0.039" (1.00mm) |
-2,5x2,0x1,00mm.jpg)
|
CIG22E2R2MNEFIXED IND 2.2UH 1.3A 150MOHM SMD |
4,966 | 0.00 |
|
Datasheet |
CIG22E | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.3 A | - | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIG22ER47MNEFIXED IND 470NH 3.2A 36 MOHM SMD |
4,690 | 0.00 |
|
Datasheet |
CIG22E | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 3.2 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-2,00x1.25x,80mm.jpg)
|
CIGT201206EH1R0MNEFIXED IND 1UH 1.8A 110 MOHM SMD |
3,554 | 0.34 |
|
Datasheet |
CIGT | 0805 (2012 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Thin Film | Metal Composite | 1 µH | ±20% | 1.8 A | 2.4A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
CIGT252007LM1R0MNCFIXED IND 1UH 2.5A 60 MOHM SMD |
2,701 | 0.00 |
|
Datasheet |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Thin Film | Metal Composite | 1 µH | ±20% | 2.5 A | 3A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
