Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

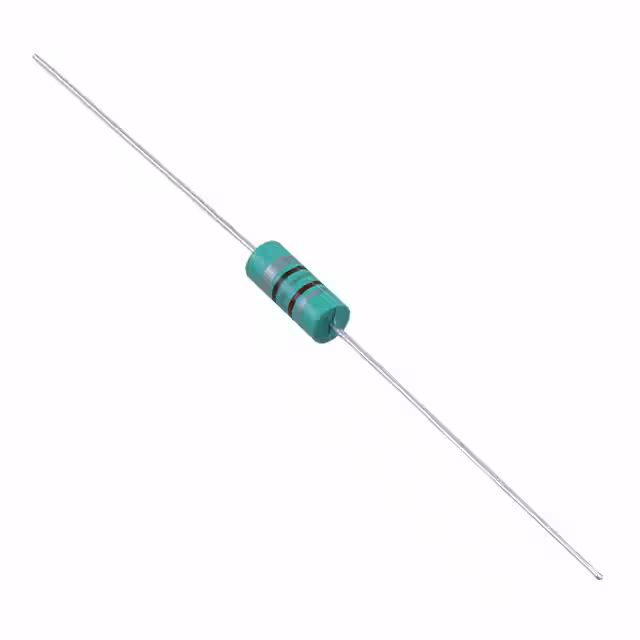

IMS05ST2R7KFIXED IND 2.7UH 535MA 280MOHM TH |
3,834 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 2.7 µH | ±10% | 535 mA | - | Shielded | 280mOhm Max | 44 @ 7.9MHz | 92MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST330KFIXED IND 33UH 240MA 1.37 OHM TH |
2,363 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 33 µH | ±10% | 240 mA | 190mA | Shielded | 1.37Ohm Max | 45 @ 2.5MHz | 34MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST331KFIXED IND 330UH 110MA 6.4 OHM TH |
3,312 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 330 µH | ±10% | 110 mA | 65mA | Shielded | 6.4Ohm Max | 55 @ 790kHz | 6.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST332KFIXED IND 3.3MH 40MA 53 OHM TH |
4,473 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 3.3 mH | ±10% | 40 mA | 22mA | Shielded | 53Ohm Max | 45 @ 250kHz | 840kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST390JFIXED IND 39UH 205MA 1.93 OHM TH |
3,429 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 39 µH | ±5% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST390KFIXED IND 39UH 205MA 1.93 OHM TH |
2,728 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 39 µH | ±10% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST391KFIXED IND 390UH 105MA 7.4 OHM TH |
2,353 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 390 µH | ±10% | 105 mA | 60mA | Shielded | 7.4Ohm Max | 60 @ 790kHz | 6.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST392KFIXED IND 3.9MH 35MA 73.8 OHM TH |
2,582 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 3.9 mH | ±10% | 35 mA | 20mA | Shielded | 73.8Ohm Max | 45 @ 250kHz | 800kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST3R3JFIXED IND 3.3UH 480MA 350MOHM TH |
4,850 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 3.3 µH | ±5% | 480 mA | - | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST3R3KFIXED IND 3.3UH 480MA 350MOHM TH |
3,506 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 3.3 µH | ±10% | 480 mA | - | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST3R9KFIXED IND 3.9UH 450MA 400MOHM TH |
1,982 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 3.9 µH | ±10% | 450 mA | - | Shielded | 400mOhm Max | 44 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST470JFIXED IND 47UH 195MA 2.11 OHM TH |
2,389 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 47 µH | ±5% | 195 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST470KFIXED IND 47UH 195MA 2.11 OHM TH |
1,001 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 47 µH | ±10% | 195 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST471KFIXED IND 470UH 92MA 9.5 OHM TH |
4,838 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 470 µH | ±10% | 92 mA | 58mA | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST472JFIXED IND 4.7MH 31MA 81.6 OHM TH |
4,188 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 4.7 mH | ±5% | 31 mA | 19mA | Shielded | 81.6Ohm Max | 45 @ 250kHz | 740kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST472KFIXED IND 4.7MH 31MA 81.6 OHM TH |
1,427 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 4.7 mH | ±10% | 31 mA | 19mA | Shielded | 81.6Ohm Max | 45 @ 250kHz | 740kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST4R7JFIXED IND 4.7UH 380MA 550MOHM TH |
1,570 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 4.7 µH | ±5% | 380 mA | - | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST4R7KFIXED IND 4.7UH 380MA 550MOHM TH |
2,569 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Iron Powder | 4.7 µH | ±10% | 380 mA | - | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST560KFIXED IND 56UH 190MA 2.23 OHM TH |
3,136 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 56 µH | ±10% | 190 mA | 160mA | Shielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05ST561KFIXED IND 560UH 90MA 10.5 OHM TH |
2,973 | 0.00 |
|
Datasheet |
IMS-5 | Axial | - | Obsolete | Molded | Ferrite | 560 µH | ±10% | 90 mA | 55mA | Shielded | 10.5Ohm Max | 60 @ 790kHz | 4.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
