Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0805CLH10RSTSFIXED IND 10UH 400MA 590MOHM SMD |
1,400 | 0.00 |
|
Datasheet |
0805CLH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | - | 400 mA | 150mA | Shielded | 590mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.083" L x 0.049" W (2.10mm x 1.25mm) | 0.039" (1.00mm) |
|

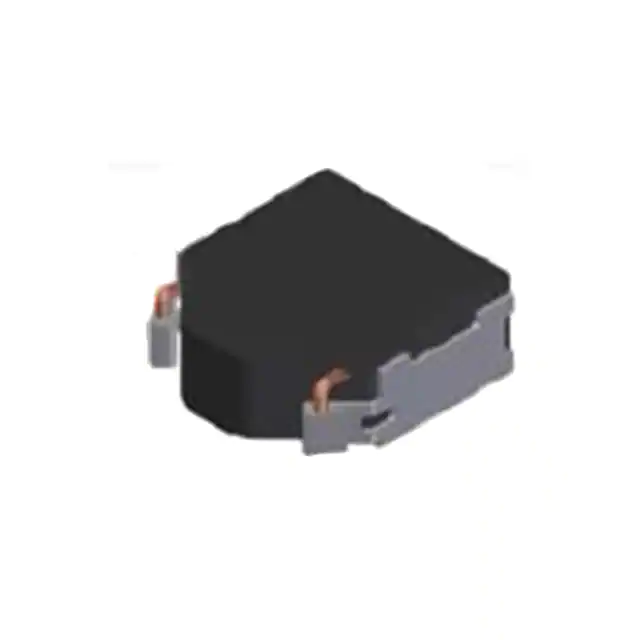

FDSD0630-H-1R0MB=P3FIXED IND 1UH 9.4A 11 MOHM SMD |
3,665 | 0.74 |
|
Datasheet |
FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 9.4 A | 15A | Shielded | 11mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
4551-RCFIXED INDUCTOR |
1,127 | 0.00 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
WL05GT24NFIXED IND 24NH 500MA 220MOHM SMD |
1,640 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 50 @ 500MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL08JT1R0FIXED IND 1UH 370MA 1.75 OHM SMD |
3,818 | 0.04 |
|
Datasheet |
WL | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.084" (2.13mm) |
|
|
WL03JT6N8FIXED IND 6.8NH 700MA 110MOHM SM |
1,171 | 0.05 |
|
Datasheet |
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WL03GT33NFIXED IND 33NH 600MA 220MOHM SMD |
1,403 | 0.05 |
|
Datasheet |
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WL05GT12NFIXED IND 12NH 600MA 150MOHM SMD |
2,502 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 600 mA | - | Unshielded | 150mOhm Max | 50 @ 500MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL03GT56NFIXED IND 56NH 600MA 310MOHM SMD |
3,303 | 0.05 |
|
Datasheet |
WL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 600 mA | - | Unshielded | 310mOhm Max | 38 @ 200MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
WL05JT15NFIXED IND 15NH 600MA 170MOHM SMD |
4,006 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 170mOhm Max | 50 @ 500MHz | 3.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05GTR68FIXED IND 680NH 190MA 2.2OHM SMD |
1,124 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±2% | 190 mA | - | Unshielded | 2.2Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05JT2N8FIXED IND 2.8NH 800MA 60MOHM SMD |
4,603 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.8 nH | ±5% | 800 mA | - | Unshielded | 60mOhm Max | 80 @ 1.5GHz | 7.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05JT4R7FIXED IND 4.7NH 600MA 80MOHM SMD |
2,642 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 µH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 65 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05GT22NFIXED IND 22NH 500MA 220MOHM SMD |
2,403 | 0.05 |
|
Datasheet |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
HK0603R10J-TVFIXED INDUCTOR 100NH 0201 |
3,091 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HK060327NH-TFIXED INDUCTOR 27NH 0201 |
3,243 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HKQ0603U4N3C-TVFIXED INDUCTOR 4.3NH 0201 |
1,944 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HKQ0603U12NH-TVFIXED INDUCTOR 12.NH 0201 |
2,990 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HK06031N5S-T.FIXED INDUCTOR 1.5NH 0201 |
4,120 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

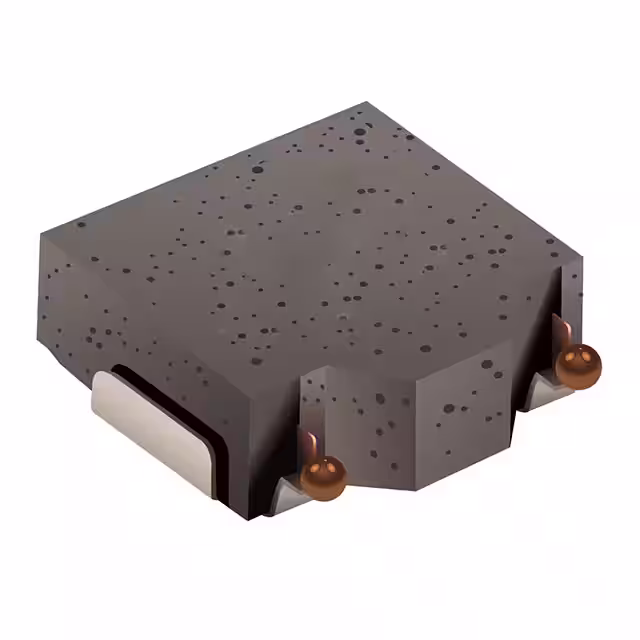

SRP0410-1R0KFIXED IND 1UH 4.5A 42.5 MOHM SMD |
2,631 | 0.92 |
|
Datasheet |
SRP0410 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±10% | 4.5 A | 5.3A | Shielded | 42.5mOhm Max | 20 @ 7.96MHz | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
