Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

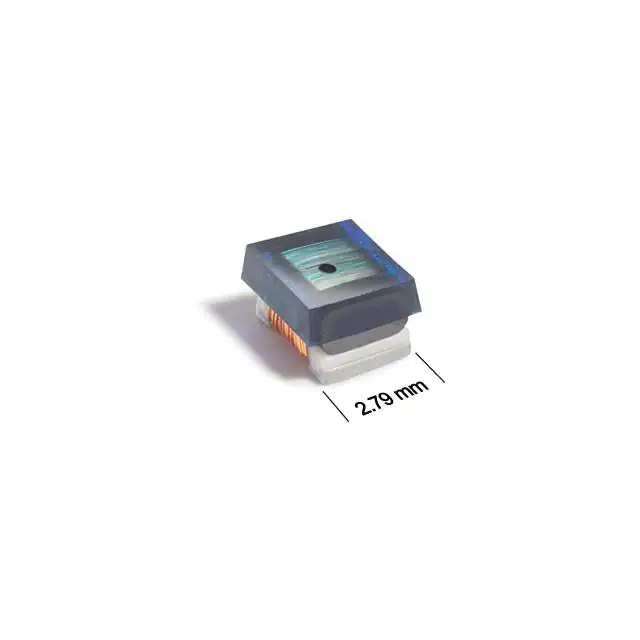

1008LS-222XJRC1008LS-222XJRC |
3,373 | 1.19 |
|
Datasheet |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 2.2 µH | ±5% | 520 mA | - | Unshielded | 1.1Ohm Max | 37 @ 50MHz | 150MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|

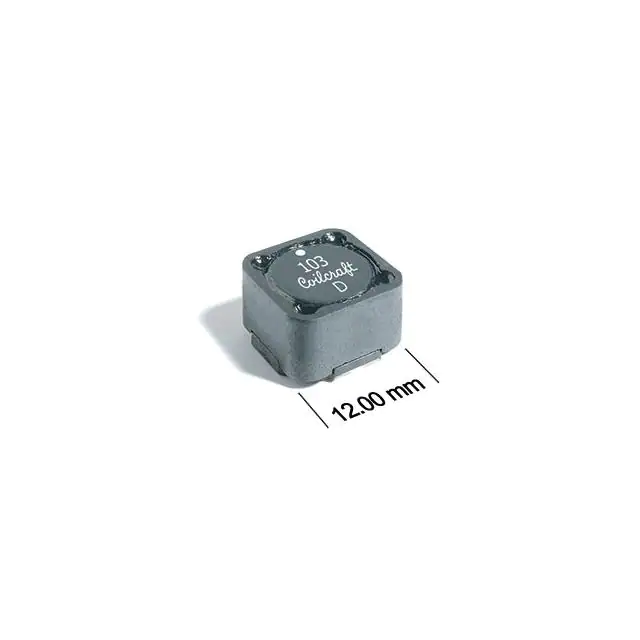

MSS1278-683MLDPOWER INDUCTOR, SHIELDED, 10/20% |
3,811 | 2.86 |
|
Datasheet |
MSS1278 | Nonstandard | Strip | Active | Drum Core | Ferrite | 68 µH | ±20% | 1.8 A | 3.4A | Shielded | 101.5mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|

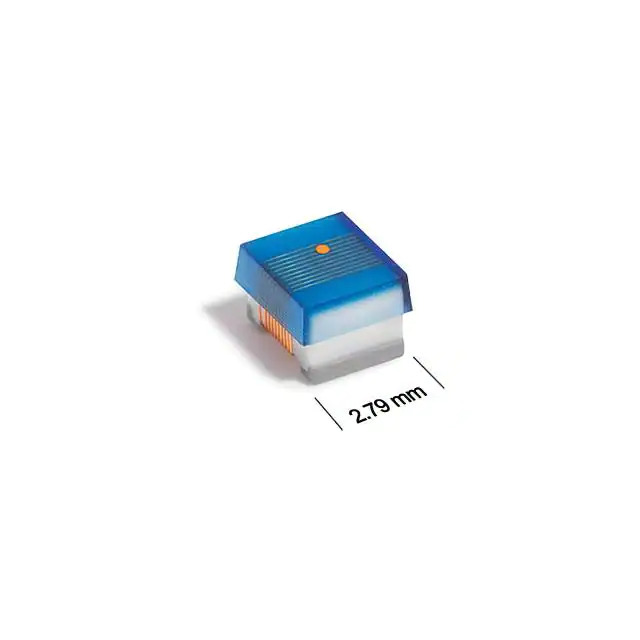

1008CS-121XGRC1008CS-121XGRC |
3,937 | 1.33 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 120 nH | ±2% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
1008CS-270XJRC1008CS-270XJRC |
3,252 | 1.14 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 27 nH | ±5% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|

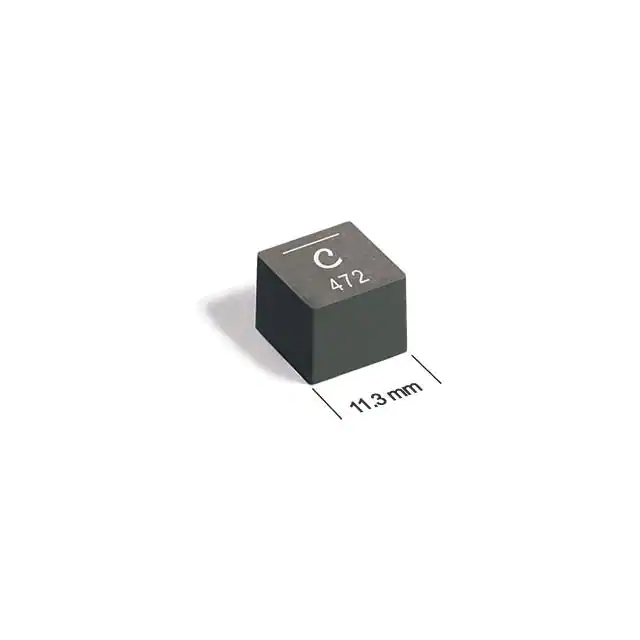

XAL1010-451MEDPOWER INDUCTOR, SHIELDED, 20% TO |
3,450 | 6.76 |
|
Datasheet |
XAL1010 | Nonstandard | Strip | Active | Molded | Metal Composite | 450 nH | ±20% | 53 A | 70.5A | Shielded | 0.72mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.394" (10.00mm) |
|

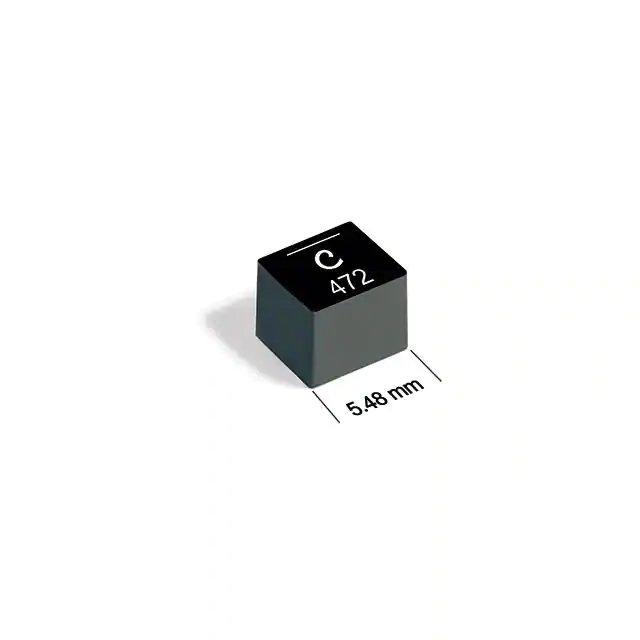

XGL5050-153MECPOWER INDUCTOR, SHIELDED, COMPOS |
2,496 | 3.43 |
|
Datasheet |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 15 µH | ±20% | 4.6 A | 3.9A | Shielded | 54.9mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
|
1008LS-103XJRC1008LS-103XJRC |
1,130 | 1.19 |
|
Datasheet |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 10 µH | ±5% | 300 mA | - | Unshielded | 2.95Ohm Max | 37 @ 7.9MHz | 60MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|

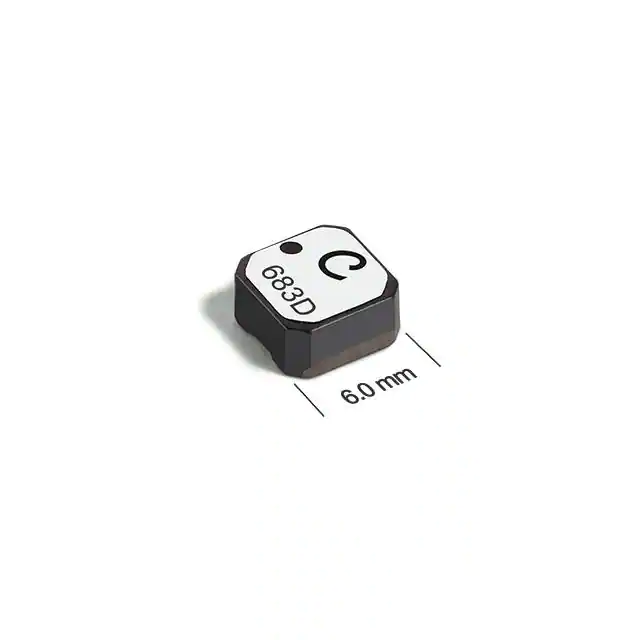

LPS6235-224MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,164 | 1.53 |
|
Datasheet |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | 220 µH | ±20% | 450 mA | 310mA | Shielded | 820mOhm Max | - | 5.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.138" (3.50mm) |
|
L0805C3R3MPWSTINDUCTOR, WW SMD |
1,429 | 0.09 |
|
Datasheet |
L-PWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 235 mA | - | Unshielded | 300mOhm | - | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
L1007C331KDWITINDUCTOR, WW SMD |
2,652 | 0.16 |
|
Datasheet |
L-DWI | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 90 mA | 100mA | Unshielded | 12.3Ohm | - | 4.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
L0806C680KPWSTINDUCTOR, WW SMD |
3,975 | 0.10 |
|
Datasheet |
L-PWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 55 mA | - | Unshielded | 3Ohm | - | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L1007R101KPWRTINDUCTOR, WW SMD |
2,917 | 0.09 |
|
Datasheet |
L-PWR | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 80 mA | - | Unshielded | 1.89Ohm | - | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
L0806C6R8MPWSTINDUCTOR, WW SMD |
1,662 | 0.10 |
|
Datasheet |
L-PWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 175 mA | - | Unshielded | 350mOhm | - | 38MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L1007C151KPWSTINDUCTOR, WW SMD |
2,561 | 0.09 |
|
Datasheet |
L-PWS | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 45 mA | - | Unshielded | 3.2Ohm | - | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
L1007C101KDWITINDUCTOR, WW SMD |
2,820 | 0.16 |
|
Datasheet |
L-DWI | 1007 (2518 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 170 mA | 160mA | Unshielded | 3.7Ohm | - | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
L1210R680KDWITINDUCTOR, WW SMD |
1,415 | 0.21 |
|
Datasheet |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 410 mA | 320mA | Unshielded | 1Ohm | - | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L0806C220MPWSTINDUCTOR, WW SMD |
1,617 | 0.10 |
|
Datasheet |
L-PWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 105 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L4018C100MDWDTINDUCTOR, WW SMD |
2,839 | 0.25 |
|
Datasheet |
L-DWD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | - | Shielded | 180mOhm | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
L8040C2R0NDWDTINDUCTOR, WW SMD |
4,345 | 0.41 |
|
Datasheet |
L-DWD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | - | Shielded | 9mOhm | - | 50MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
L1207C151KPWSTINDUCTOR, WW SMD |
4,207 | 0.11 |
|
Datasheet |
L-PWS | 1207 (3218 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 105 mA | - | Unshielded | 3.2Ohm | - | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
