Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT1008CSF-682JSMD CER CORE WIRE-WOUND INDUCTOR |
1,841 | 0.48 |
|
Datasheet |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±5% | - | - | - | 8Ohm | - | 45MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTS3F-153K15000UH AXIAL SHIELDD INDUCTOR |
4,005 | 2.15 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 15 mH | ±10% | 22 mA | - | Shielded | 157Ohm Max | 30 @ 79kHz | 290kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
CTLV2512SF-3R3M3.3UH SMD POWER INDUCTOR |
1,500 | 0.28 |
|
Datasheet |
CTLV2512SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.35 A | 1.3A | Shielded | 130mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
CTLL1608F-2N7S2.7NH SMD CER CORE MULT INDUCTOR |
2,486 | 0.22 |
|
Datasheet |
CTLL1608F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 32 @ 800MHz | 6GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CTLV8040SF-4R7M4.7UH SMD POWER INDUCTOR |
2,930 | 0.53 |
|
Datasheet |
CTLV8040SF | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 4.95 A | 6.12A | Shielded | 20mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
CTMC1812SF-681JSMD FERRITE CORE WW INDUCTOR |
2,195 | 0.56 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTLVH2010F-220MSMD SHIELDED POWER INDUCTOR |
1,183 | 0.19 |
|
Datasheet |
CTLVH2010F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 450 mA | 550mA | Shielded | 1.3Ohm Max | - | 9MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

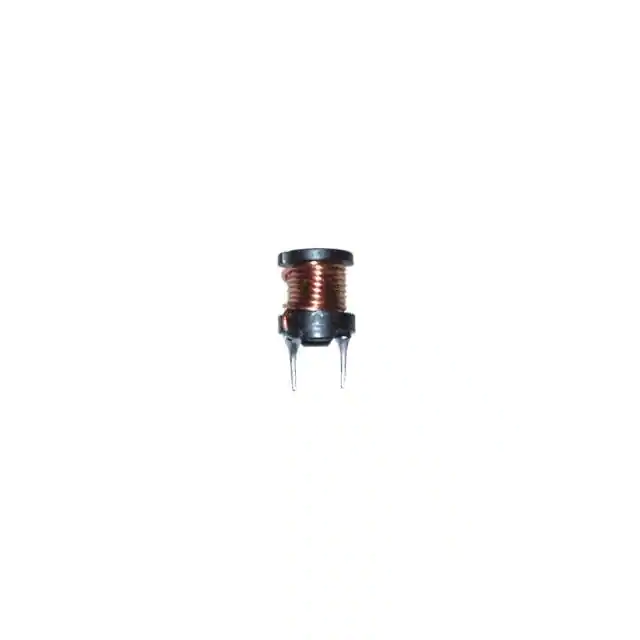

CTCH895F-101K100UH RADIAL LEAD FIX INDUCTOR |
2,332 | 1.00 |
|
- |
CTCH895F | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | - | 900mA | Unshielded | 190mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
CTMPH080504F-R24M0.24UH SMD MOLDED SHLD INDUCTOR |
3,111 | 0.64 |
|
Datasheet |
CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 3.7 A | 4.5A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

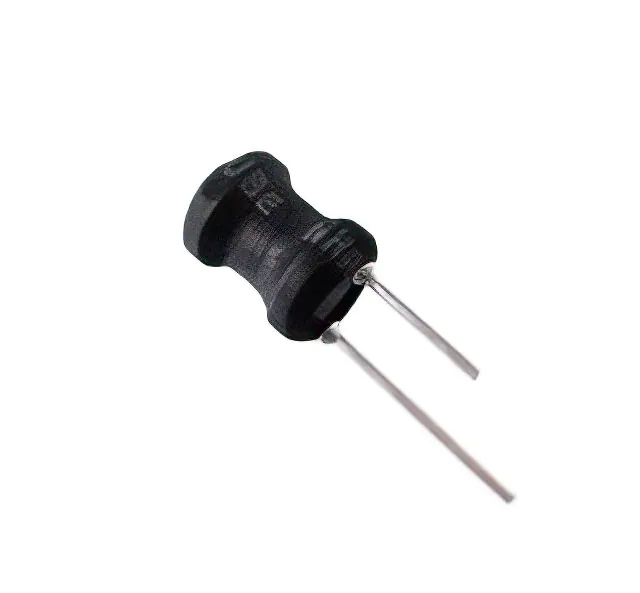

CTRL5480F-3-102K1000UH RADIAL FIXED INDUCTR |
3,558 | 0.62 |
|
- |
CTRL5480F-3 | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 246 mA | 390mA | Unshielded | 2.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.374" Dia (9.50mm) | 0.449" (11.40mm) |
|
CTS7F-120KAXIAL LEADED SHIELDED INDUCTOR |
3,458 | 3.04 |
|
Datasheet |
CTS7F | Axial | Bulk | Active | - | - | 12 µH | ±10% | 707 mA | - | Shielded | 22mOhm | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.300" Dia x 0.725" L (7.62mm x 18.41mm) | - |
|
CTMPC080604F-R24M0.24UH SMD SHLDED POWER INDUCTOR |
1,619 | 0.30 |
|
Datasheet |
CTMPC080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 4 A | 4.2A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CTH7F-561K560UH AXIAL PWR LINE INDUCTOR |
4,718 | 3.55 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 560 µH | ±10% | 320 mA | 540mA | Unshielded | 1.3Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
CT916CYF-150MSMD SHIELDED POWER INDUCTOR |
1,737 | 1.04 |
|
Datasheet |
ct916cyf | - | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | - | - | - | 64mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

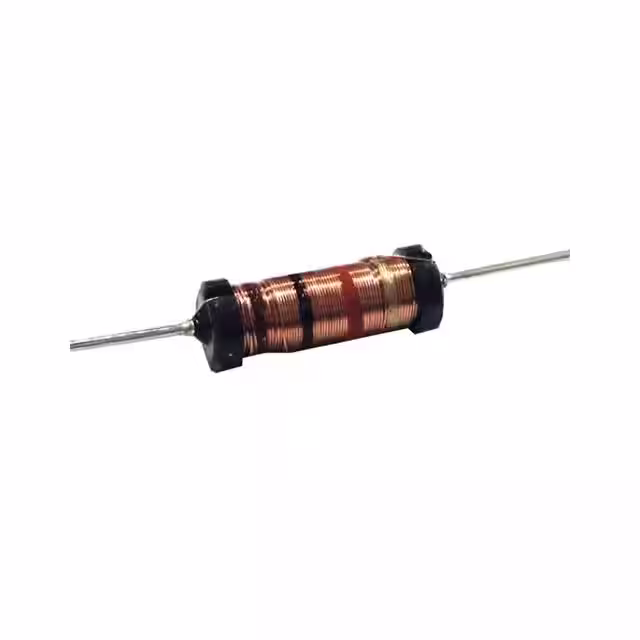

CTCVCF-120KAXIAL LEAD CLEAR POWER INDUCTOR |
1,530 | 0.62 |
|
Datasheet |
CTCVCF | Axial | Tape & Reel (TR) | Active | - | - | 12 µH | ±10% | 2.25 A | 3.8A | Unshielded | 130mOhm Max | 55 @ 2.52MHz | 36MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|

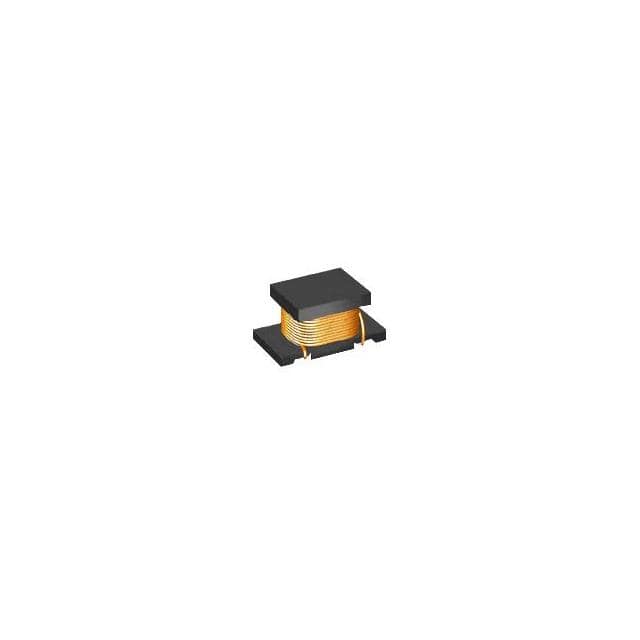

CTLQ1210CF-100K10UH 300MA SMD WW INDUCTOR |
1,441 | 0.31 |
|
Datasheet |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 300 mA | - | Unshielded | 600mOhm Max | - | 26MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CTIHSM5832F-332K3300UH SMD MOLDED INDUCTOR |
1,613 | 2.61 |
|
Datasheet |
CTIHSM5832F | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±10% | 120 mA | 180mA | Unshielded | 15.6Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | SMD | 0.638" L x 0.320" W (16.20mm x 8.13mm) | 0.285" (7.24mm) |
|
CTH8F-121K120UH AXIAL PWR LINE INDUCTOR |
2,742 | 2.34 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 120 µH | ±10% | 1.6 A | 2.54A | Unshielded | 113mOhm Max | - | 3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
CTLVH2510F-100MSMD SHIELDED POWER INDUCTOR |
3,873 | 0.30 |
|
Datasheet |
CTLVH2510F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 900 mA | 1A | Shielded | 435mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CTCDRH104RF-22022 SMD SHIELDED POWER INDUCTOR |
2,140 | 1.22 |
|
Datasheet |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | - | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
