Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

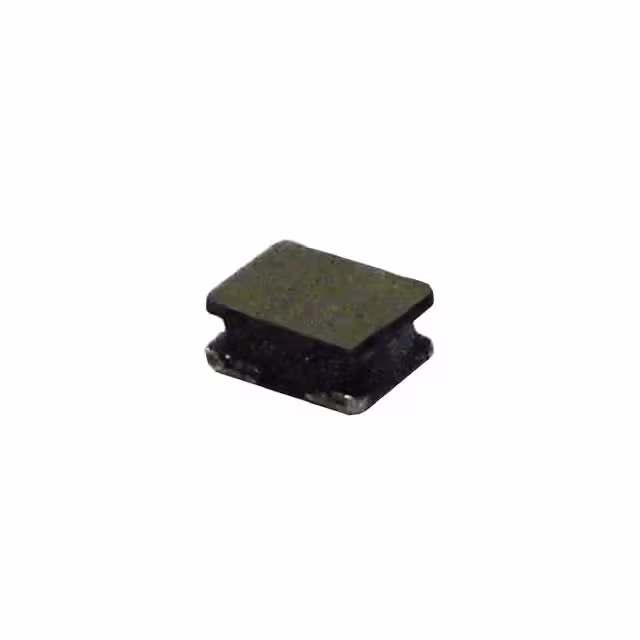

CTLVH2010F-100MSMD SHIELDED POWER INDUCTOR |
2,201 | 0.19 |
|
Datasheet |
CTLVH2010F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 720 mA | 780mA | Shielded | 640mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CTML0805F-3R3K3.3UH FER MULTIL SHLD INDUCTOR |
100 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±10% | 30 mA | - | Shielded | 800mOhm Max | 45 @ 10MHz | 41MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-180K18 FER MULTIL SHLD INDUCTOR |
100 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 18 µH | ±10% | 5 mA | - | Shielded | 900mOhm Max | 30 @ 1MHz | 18MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-5R6K5.6UH FER MULTIL SHLD INDUCTOR |
100 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±10% | 15 mA | - | Shielded | 900mOhm Max | 50 @ 4MHz | 32MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-6R8K6.8UH FER MULTIL SHLD INDUCTOR |
100 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 15 mA | - | Shielded | 1Ohm Max | 50 @ 4MHz | 29MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-R10K100NH FER MULTIL SHLD INDUCTOR |
3,069 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±10% | 250 mA | - | Shielded | 300mOhm Max | 20 @ 25MHz | 235MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-R82K820NH FER MULTIL SHLD INDUCTOR |
3,215 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 150 mA | - | Shielded | 1Ohm Max | 25 @ 25MHz | 100MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-R082KSMD FERRITE CORE MULTIL INDUCTOR |
1,963 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Bulk | Active | Multilayer | Ferrite | 82 nH | ±10% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 255MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|

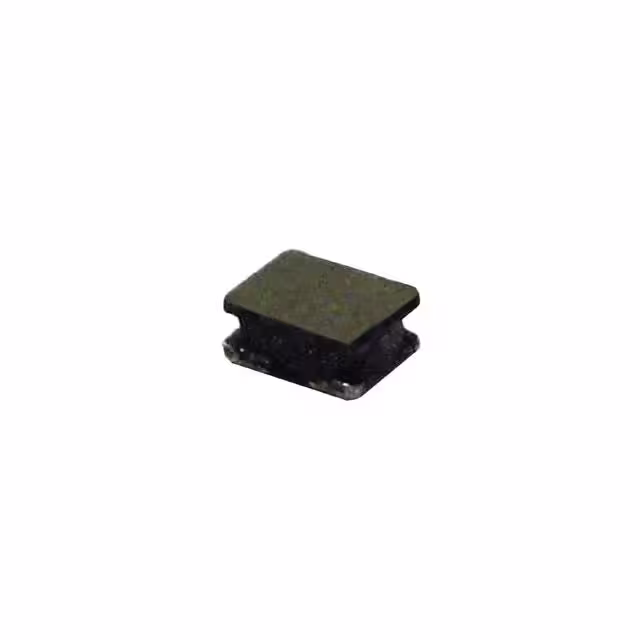

CTLVH2012F-4R7MSMD SHIELDED POWER INDUCTOR |
1,914 | 0.19 |
|
Datasheet |
CTLVH2012F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.2 A | 1.4A | Shielded | 270mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTLVH2012F-100MSMD SHIELDED POWER INDUCTOR |
1,966 | 0.19 |
|
Datasheet |
CTLVH2012F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 730 mA | 950mA | Shielded | 600mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTLVH2012F-6R8MSMD SHIELDED POWER INDUCTOR |
3,088 | 0.19 |
|
Datasheet |
CTLVH2012F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 920 mA | 1.2A | Shielded | 380mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTML0805F-1R5K1.5UH FER MULTIL SHLD INDUCTOR |
4,545 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-1R8K1.8UH FER MULTIL SHLD INDUCTOR |
4,461 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 55MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-1R0K1UH FER MULTIL SHLD INDUCTOR |
3,016 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 50 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 75MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-R068M68NH FER MULTIL SHLD INDUCTOR |
1,236 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 68 nH | ±20% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 280MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-150K15 FER MULTIL SHLD INDUCTOR |
3,050 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±10% | 5 mA | - | Shielded | 800mOhm Max | 30 @ 1MHz | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CTML0805F-R047KSMD FERRITE CORE MULTIL INDUCTOR |
2,542 | 0.19 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 nH | ±10% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 320MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|

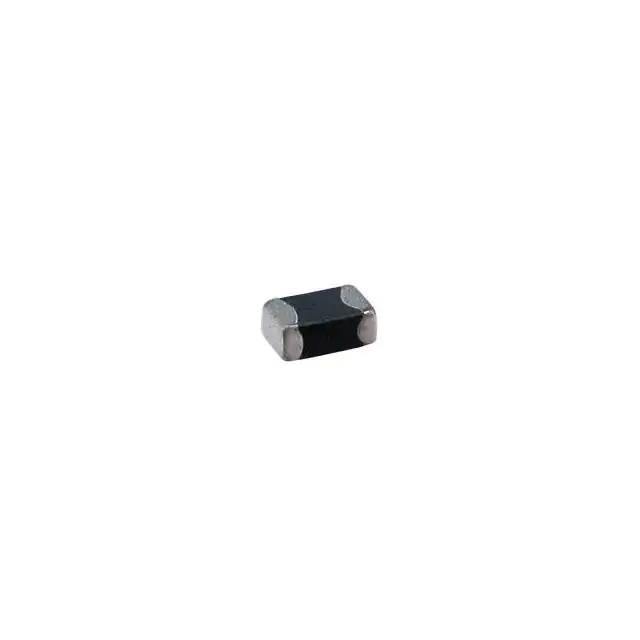

CTMLP080504BF-R47M0.47UH SMD MULTIL POWER INDUCTOR |
1,867 | 0.20 |
|
Datasheet |
CTMLP080504BF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.3 A | 1A | Shielded | 90mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMLP080504BF-2R2M2.2UH SMD MULTIL POWER INDUCTOR |
2,690 | 0.20 |
|
Datasheet |
CTMLP080504BF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.1 A | 400mA | Shielded | 190mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMLP080504BF-1R5M1.5UH SMD MULTIL POWER INDUCTOR |
2,849 | 0.20 |
|
Datasheet |
CTMLP080504BF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.1 A | 450mA | Shielded | 150mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
