Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMPH100804F-1R0M1UH SMD MOLDED SHLD INDUCTOR |
3,516 | 0.53 |
|
Datasheet |
CTMPH100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3 A | 3.7A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMPH100804F-R24M0.24UH SMD MOLDED SHLD INDUCTOR |
1,466 | 0.53 |
|
Datasheet |
CTMPH100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5.5 A | 8A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMPH100804F-R68M0.68UH SMD MOLDED SHLD INDUCTOR |
2,807 | 0.53 |
|
Datasheet |
CTMPH100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 3.7 A | 4.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

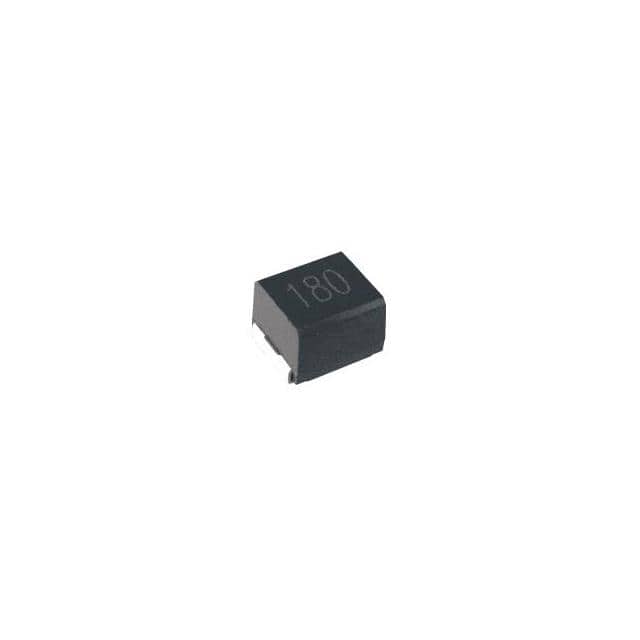

CTHC2220F-221K220UH SMD WW MOLDED INDUCTOR |
3,729 | 0.53 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 170 mA | - | Shielded | 3.4Ohm Max | 20 @ 796kHz | 3.9MHz | - | -25°C ~ 85°C | 796 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
|
CTMPH100804F-R33M0.33UH SMD MOLDED SHLD INDUCTOR |
3,685 | 0.53 |
|
Datasheet |
CTMPH100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 4.8 A | 6.5A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMPH100804F-R47M0.47UH SMD MOLDED SHLD INDUCTOR |
4,781 | 0.53 |
|
Datasheet |
CTMPH100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.9 A | 5A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMPH100804F-1R5M1.5UH SMD MOLDED SHLD INDUCTOR |
3,305 | 0.53 |
|
Datasheet |
CTMPH100804F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.4 A | 3.1A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

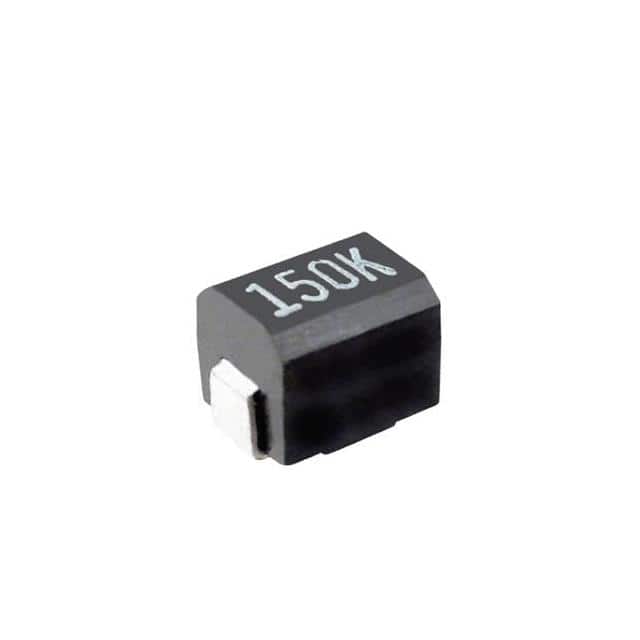

CTHC1812SF-150KSMD FERRITE CORE WW INDUCTOR |
3,286 | 0.53 |
|
Datasheet |
CTHC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 450 mA | - | Unshielded | 700mOhm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTLV8040SF-100M10UH SMD POWER INDUCTOR |
3,312 | 0.53 |
|
Datasheet |
CTLV8040SF | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.42 A | 4.5A | Shielded | 38mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
CTHC2220F-180K18UH SMD WW MOLDED INDUCTOR |
1,705 | 0.53 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 530 mA | - | Shielded | 360mOhm Max | 10 @ 2.52MHz | 14MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
|
CTHC2220F-102J1MH SMD WW MOLDED INDUCTOR |
1,588 | 0.53 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 85 mA | - | Shielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
|
CTHC2220F-471J470UH SMD WW MOLDED INDUCTOR |
1,827 | 0.53 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 120 mA | - | Shielded | 7Ohm Max | 20 @ 796kHz | 2.6MHz | - | -25°C ~ 85°C | 796 kHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
|
CTHC2220F-470J47UH SMD WW MOLDED INDUCTOR |
3,371 | 0.53 |
|
Datasheet |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 340 mA | - | Shielded | 850mOhm Max | 10 @ 2.52MHz | 8.5MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
CTCDRH2D11/HPF-100N10UH SMD SHIELDED POWR INDUCTOR |
2,218 | 0.53 |
|
Datasheet |
CTCDRH2D11/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | - | 520mA | Shielded | 559mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
CTCDRH2D11/HPF-4R7N4.7UH SMD SHIELDED POWR INDUCTOR |
3,880 | 0.53 |
|
Datasheet |
CTCDRH2D11/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | - | 750mA | Shielded | 238mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
CTCDRH2D11/HPF-3R3N3.3UH SMD SHIELDED POWR INDUCTOR |
3,745 | 0.53 |
|
Datasheet |
CTCDRH2D11/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±30% | - | 900mA | Shielded | 135mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
CTCDRH2D11/HPF-6R8N6.8UH SMD SHIELDED POWR INDUCTOR |
2,088 | 0.53 |
|
Datasheet |
CTCDRH2D11/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | - | 630mA | Shielded | 371mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
|
CTCDRH2D11/HPF-1R5N1.5UH SMD SHIELDED POWR INDUCTOR |
2,433 | 0.53 |
|
Datasheet |
CTCDRH2D11/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | - | 1.35A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
CTSPI3D15F-100MSMD SHIELDED POWER INDUCTOR |
2,205 | 0.55 |
|
Datasheet |
CTSPI3D15F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.02 A | 900mA | Shielded | 228mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.063" (1.60mm) |
|
|
CTSPI3D15F-1R2MSMD SHIELDED POWER INDUCTOR |
3,761 | 0.55 |
|
Datasheet |
CTSPI3D15F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 2.34 A | 2.2A | Shielded | 43mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.063" (1.60mm) |
