Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

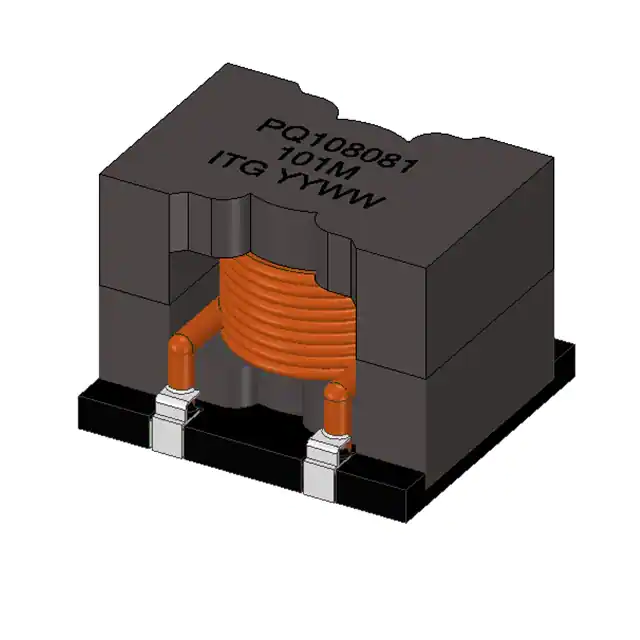

PQ108081-120MHFFIXED IND 12UH 26.8A 3.2MOHM SMD |
3,092 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 12 µH | ±20% | 26.8 A | - | Shielded | 3.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-560MHFFIXED IND 56UH 12A 15 MOHM SMD |
2,619 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 56 µH | ±20% | 12 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-390MHFFIXED IND 39UH 15.6A 8.9MOHM SMD |
2,821 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 39 µH | ±20% | 15.6 A | - | Shielded | 8.9mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-220MHFFIXED IND 24UH 19A 6.2 MOHM SMD |
1,247 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 24 µH | ±20% | 19 A | - | Shielded | 6.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-470MHFFIXED IND 44UH 13.7A 11.5MOHM SM |
4,774 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 44 µH | ±20% | 13.7 A | - | Shielded | 11.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-4R7MHFFIXED IND 4.7UH 31A 2.5 MOHM SMD |
3,129 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 4.7 µH | ±20% | 31 A | - | Shielded | 2.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-8R2MHFFIXED IND 8.2UH 31A 2.5 MOHM SMD |
4,325 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 8.2 µH | ±20% | 31 A | - | Shielded | 2.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-180MHFFIXED IND 19UH 22A 4.5 MOHM SMD |
3,238 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 19 µH | ±20% | 22 A | - | Shielded | 4.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-6R8MHFFIXED IND 6.8UH 31A 2.5 MOHM SMD |
2,217 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 6.8 µH | ±20% | 31 A | - | Shielded | 2.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-860MHFFIXED IND 86UH 12A 15 MOHM SMD |
4,370 | 6.00 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 86 µH | ±20% | 12 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|

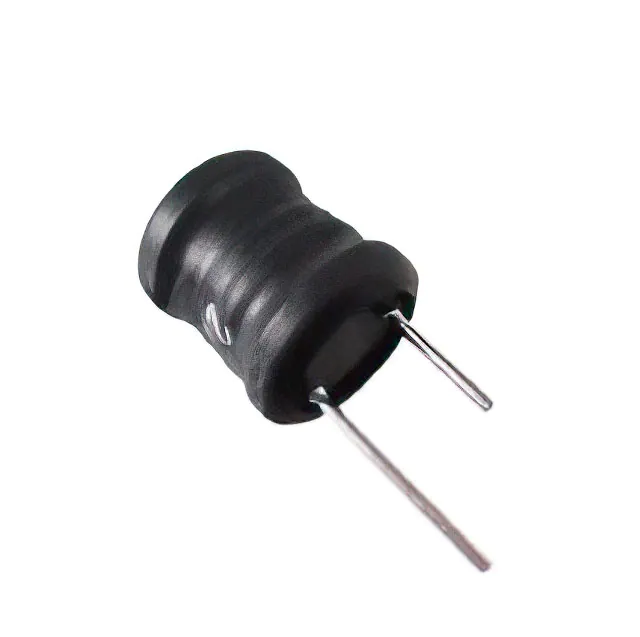

CTRL5480F-5-221K18000UH RADIAL FIXED INDUCTR |
2,275 | 4.03 |
|
- |
CTRL5480F-5 | Radial, Vertical Cylinder | Bulk | Active | - | - | 220 µH | ±10% | 2.6 A | 1.3A | Unshielded | 147mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.626" Dia (15.90mm) | 0.701" (17.80mm) |
|

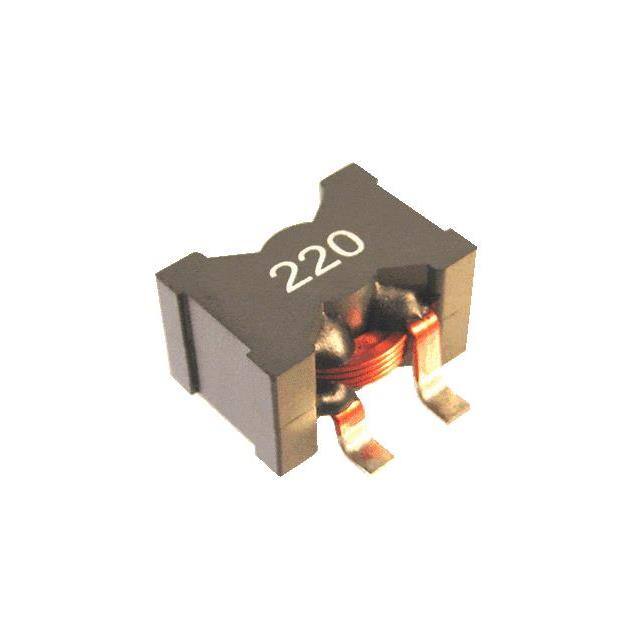

CTHFW2014F-220MSMD SHLDED POWER INDUCTOR |
3,509 | 4.11 |
|
Datasheet |
CTHFW2014F | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 16 A | 13A | Shielded | 9.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.807" W (22.50mm x 20.50mm) | 0.571" (14.50mm) |
|
CTDR1F-270K27UH RADIAL DRUM CORE INDUCTOR |
1,698 | 4.56 |
|
Datasheet |
CTDR1F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 27 µH | ±10% | - | 4.5A | Unshielded | 30mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.669" Dia (17.00mm) | 0.866" (22.00mm) |
|

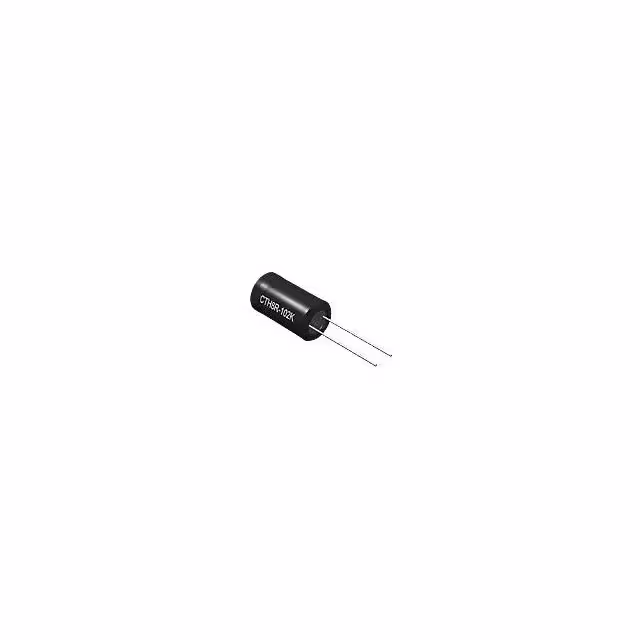

CTH8RF-102K1000UH RADIAL PWR LINE INDUCTOR |
3,246 | 4.70 |
|
Datasheet |
CTH8RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 800 mA | 870mA | Unshielded | 840mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.469" Dia (11.90mm) | 0.917" (23.30mm) |
|
|
CTH8RF-561K560UH RADIAL PWR LINE INDUCTOR |
4,702 | 4.70 |
|
Datasheet |
CTH8RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 560 µH | ±10% | 1 A | 1.2A | Unshielded | 420mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.469" Dia (11.90mm) | 0.917" (23.30mm) |
|

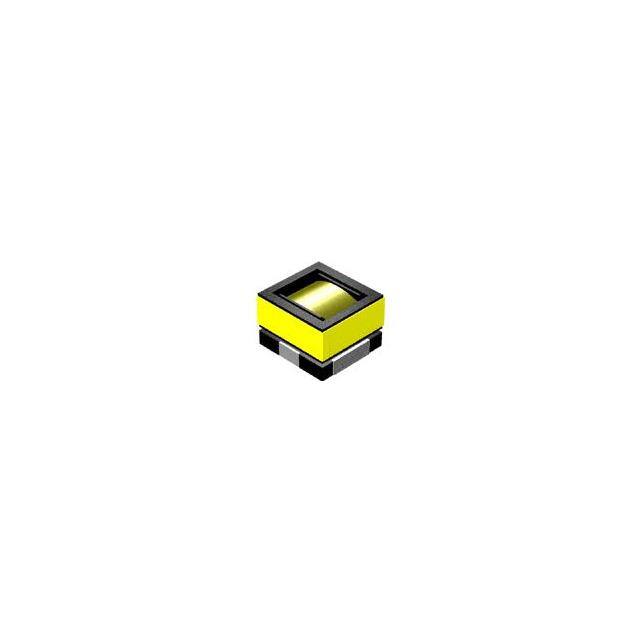

CTEPH149F-2R4M2.40UH SMD SHLDED POWER INDUCTOR |
3,141 | 4.86 |
|
Datasheet |
CTEPH149F | 3-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 2.4 µH | ±20% | - | 15A | Shielded | 2.35mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 3-SMD | 0.591" L x 0.579" W (15.00mm x 14.70mm) | 0.386" (9.80mm) |
|
CTS4F-182K1800UH XIALSHIELDED INDUCTOR |
2,202 | 4.90 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 1.8 mH | ±10% | 111 mA | 30mA | Shielded | 19Ohm Max | 70 @ 250kHz | 2.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-221J220UH XIALSHIELDED INDUCTOR |
3,252 | 4.90 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 220 µH | ±5% | 251 mA | 80mA | Shielded | 3.5Ohm Max | 65 @ 790kHz | 9.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-332K3300UH XIALSHIELDED INDUCTOR |
3,302 | 4.90 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±10% | 85 mA | 22mA | Shielded | 33Ohm Max | 70 @ 250kHz | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-560J56UH XIALSHIELDED INDUCTOR |
1,550 | 4.90 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 56 µH | ±5% | 380 mA | 160mA | Shielded | 1.6Ohm Max | 55 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
