Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616BZER1R0MA1IHLP-1616BZ-A1 1 20% ER E3 |
3,795 | 1.29 |
|
Datasheet |
IHLP-1616BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 3.75 A | 8.5A | Shielded | 37mOhm Max | - | 90MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
MHE06034R7M-10HIGH CURRENT LOW DCR POWER INDUC |
3,768 | 1.67 |
|
Datasheet |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 6.7 A | 11.3A | Shielded | 29.3mOhm Max | - | 21MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
IHLP1616BZER1R0M51FIXED IND 1UH 6.2 A 27.4 MOHM HI |
2,797 | 1.29 |
|
Datasheet |
IHLP-1616BZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 6.2 A | 4.8A | Shielded | 27.4mOhm Max | - | 63MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZERR47M51FIXED IND 0.47UH 9.3 A 13.1 MOHM |
2,540 | 1.29 |
|
Datasheet |
IHLP-1616BZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 9.3 A | 6.9A | Shielded | 13.1mOhm Max | - | 103MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
ASPI-0403S-152M-TFIXED IND 1.5MH 120MA 4.2OHM SMD |
2,496 | 1.25 |
|
Datasheet |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 mH | ±20% | 120 mA | - | Shielded | 4.2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
ASPI-0403S-471M-TFIXED IND 470UH 190MA 1.8OHM SMD |
2,475 | 1.25 |
|
Datasheet |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 190 mA | - | Shielded | 1.8Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
ASPI-0403S-4R7M-TFIXED IND 4.7UH 1.4A 60 MOHM SMD |
2,430 | 1.25 |
|
Datasheet |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.4 A | - | Shielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
EXLA1V0605-1R5-RIND MOLDED SHLD 1.5UH 17.0A |
2,077 | 0.00 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 17 A | 14.5A | Shielded | 6.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
SPM6550T-150M-HZFIXED IND 15UH 3.6A 86.35MOHM SM |
1,888 | 2.19 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 3.6 A | 2.8A | Shielded | 86.35mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
AMXLA-Q1040-470M-TIND 47UH 3.4A 167M |
794 | 2.01 |
|
Datasheet |
AMXLA-Q1040 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 47 µH | ±20% | 3.4 A | 4A | Shielded | 167mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRU1048A-221YFIXED IND 220UH 800MA 455MOHM SM |
5,329 | 1.17 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 800 mA | 700mA | Shielded | 455mOhm Max | 20 @ 796kHz | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
LCDND3030KKT4R7MMFIXED IND 4.7UH 1.15A 345MOHM SM |
3,995 | 0.57 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 1.15 A | 1.7A | Unshielded | 345mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRU1048A-560YFIXED IND 56UH 1.6A 145 MOHM SMD |
3,000 | 0.66 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 1.6 A | 1.4A | Shielded | 145mOhm Max | 26 @ 2.52MHz | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
SDR1806-5R6MLFIXED IND 5.6UH 6.4A 15 MOHM SMD |
2,979 | 1.28 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 6.4 A | 12.8A | Unshielded | 15mOhm Max | 23 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
SRU1048A-100YFIXED IND 10UH 4.5A 25 MOHM SMD |
2,696 | 1.28 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.5 A | 3.7A | Shielded | 25mOhm Max | 26 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048A-330YFIXED IND 33UH 2.1A 84 MOHM SMD |
2,242 | 1.28 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.1 A | 1.7A | Shielded | 84mOhm Max | 24 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048A-151YFIXED IND 150UH 1A 305 MOHM SMD |
1,790 | 1.28 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1 A | 800mA | Shielded | 305mOhm Max | 24 @ 796kHz | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
744918190FIXED IND 90NH 3.5A 15 MOHM SMD |
1,418 | 1.23 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 90 nH | ±5% | 3.5 A | - | Unshielded | 15mOhm Max | 100 @ 50MHz | 1.14GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
744766001FIXED IND 100NH 450MA 440MOHM SM |
995 | 1.07 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 450 mA | - | Unshielded | 440mOhm Max | 28 @ 25.2MHz | 780MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|

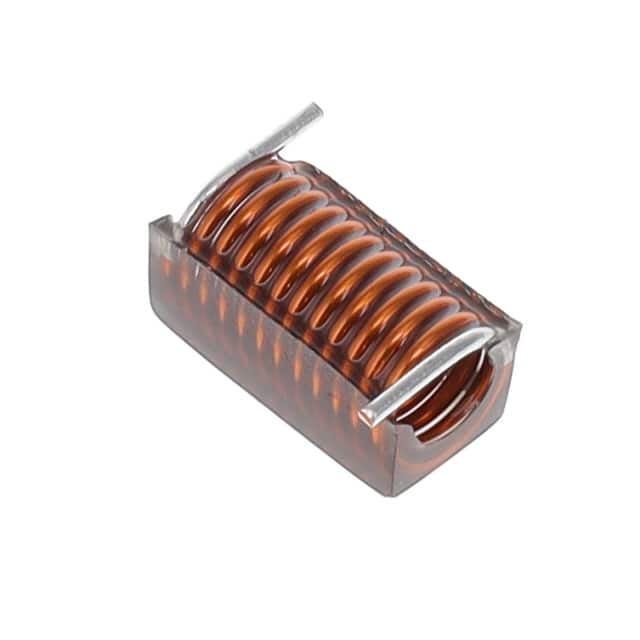

744918217FIXED IND 169NH 3A 25 MOHM SMD |
750 | 1.23 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 169 nH | ±5% | 3 A | - | Unshielded | 25mOhm Max | 100 @ 50MHz | 875MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
