Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NS12575T101MNVFIXED IND 100UH 2.01A 132MOHM SM |
1,491 | 1.79 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.01 A | 2.64A | Shielded | 132mOhm Max | - | 3.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
FPT705-300-RFIXED IND 300NH 13A 0.65MOHM SMD |
1,302 | 1.77 |
|
Datasheet |
FLAT-PAC, FPT705 | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±12% | 13 A | 17A | Unshielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.268" W (7.50mm x 6.80mm) | 0.211" (5.35mm) |
|
744065150FIXED IND 15UH 2.2A 90 MOHM SMD |
983 | 1.23 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.2 A | 2.25A | Shielded | 90mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
NS12575T100MNVFIXED IND 10UH 5.55A 18.72 MOHM |
978 | 1.79 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.55 A | 7.65A | Shielded | 18.72mOhm Max | - | 21.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
MWSA1206S-6R8MTFIXED IND 6.8UH 12A 13.5MOHM SMD |
966 | 1.81 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 12 A | 19A | Shielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|
|
FPT705-170-RFIXED IND 170NH 13A 0.65MOHM SMD |
777 | 1.77 |
|
Datasheet |
FLAT-PAC, FPT705 | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 170 nH | ±12% | 13 A | 31A | Unshielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.268" W (7.50mm x 6.80mm) | 0.211" (5.35mm) |
|
|
744065121FIXED IND 120UH 900MA 560MOHM SM |
544 | 1.76 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±30% | 900 mA | 850mA | Shielded | 560mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
HCMA1104-R20-RFIXED IND 200NH 32A 0.72MOHM SMD |
540 | 1.80 |
|
Datasheet |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 32 A | 45A | Shielded | 0.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
|
HCMA1104-R36-RFIXED IND 360NH 30A 1.2 MOHM SMD |
489 | 1.80 |
|
Datasheet |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 360 nH | ±20% | 30 A | 42A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
MWLA1004S-R47MTFIXED IND 0.47UH 1.5MOHM 43000MA |
486 | 1.81 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 28 A | 43A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWLA1004S-R45MTFIXED IND 0.45UH 1.5MOHM 45000MA |
486 | 1.81 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 450 nH | ±20% | 29 A | 45A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
744065560FIXED IND 56UH 1.25A 270MOHM SMD |
471 | 1.87 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 1.25 A | 1.1A | Shielded | 270mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
FPT705-270-RFIXED IND 270NH 13A 0.65MOHM SMD |
388 | 1.77 |
|
Datasheet |
FLAT-PAC, FPT705 | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±12% | 13 A | 19A | Unshielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.268" W (7.50mm x 6.80mm) | 0.211" (5.35mm) |
|
AL12A08N0GTRFIXED IND 8NH 4A 2.6 MOHM SMD |
376 | 1.84 |
|
Datasheet |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±2% | 4 A | - | Unshielded | 2.6mOhm Max | 140 @ 150MHz | 5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
744774218FIXED IND 180UH 420MA 1.38OHM SM |
4,327 | 1.88 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 420 mA | 500mA | Unshielded | 1.38Ohm Max | - | 5.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
784774182FIXED IND 82UH 600MA 600MOHM SMD |
4,143 | 1.76 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 600 mA | 720mA | Unshielded | 600mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

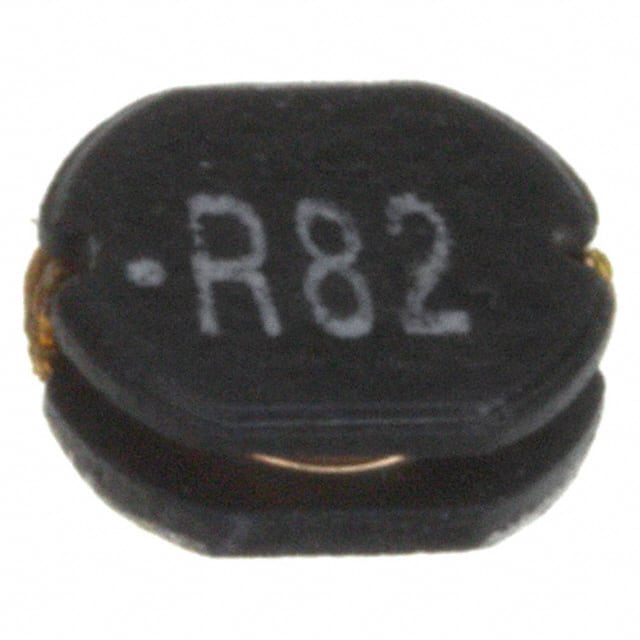

74477450082FIXED IND 820NH 5.4A 14 MOHM SMD |
3,035 | 1.88 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 5.4 A | 5.8A | Unshielded | 14mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
|
784774115FIXED IND 15UH 1.53A 140MOHM SMD |
2,988 | 1.76 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.53 A | 1.9A | Unshielded | 140mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744774139FIXED IND 39UH 940MA 320MOHM SMD |
2,355 | 1.76 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 940 mA | 1.1A | Unshielded | 320mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
PA2607.121NLTFIXED IND 115NH 41A 0.29MOHM SMD |
1,980 | 1.86 |
|
Datasheet |
PA2607NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 115 nH | ±15% | 41 A | 94A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.291" (7.40mm) |
