Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)

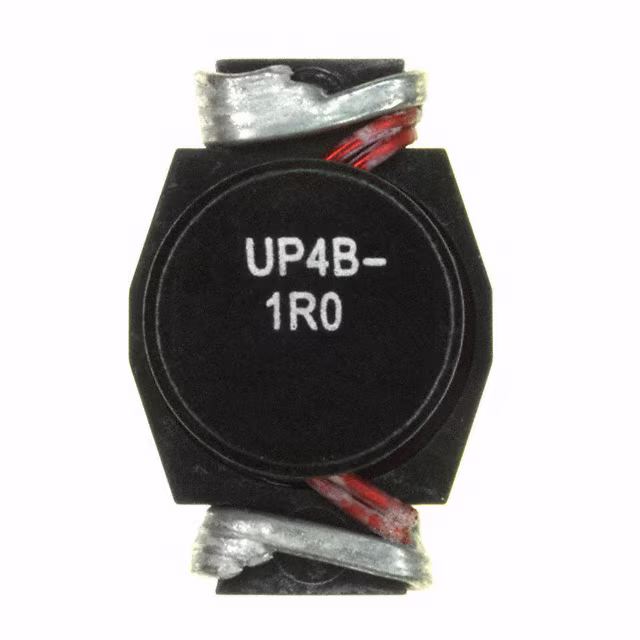

UP4B-1R0-R FIXED IND 1UH 17.3A 2.3 MOHM SMD Eaton - Electronics Division	248	3.25	RFQ	Datasheet	UNI-PAC™	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1 µH	±20%	17.3 A	37.3A	Unshielded	2.3mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.870" L x 0.591" W (22.10mm x 15.00mm)	0.310" (7.87mm)
DRA127-4R7-R FIXED IND 4.7UH 8.14A 9.4MOHM SM Eaton - Electronics Division	229	3.28	RFQ	Datasheet	DRA	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	4.7 µH	±20%	8.14 A	16.5A	Shielded	9.4mOhm	-	-	AEC-Q200	-40°C ~ 165°C	100 kHz	-	Surface Mount	-	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
PM2110-820K-RC FIXED IND 82UH 5.6A 29 MOHM SMD Bourns Inc.	179	3.36	RFQ	Datasheet	PM2110	Nonstandard	Bulk	Active	Toroidal	Iron	82 µH	±10%	5.6 A	-	Unshielded	29mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.620" (15.75mm)
1025-76K FIXED IND 220UH 52MA 21 OHM TH Delevan	7,114	2.71	RFQ	Datasheet	Military, MIL-PRF-M15305, MS75085	Axial	Tape & Reel (TR)	Active	-	Ferrite	220 µH	±10%	52 mA	-	Unshielded	21Ohm Max	30 @ 790kHz	9MHz	-	-55°C ~ 105°C	790 kHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
P1330R-473K FIXED IND 47UH 467MA 792MOHM SMD Delevan	5,500	3.22	RFQ	Datasheet	P1330R	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	47 µH	±10%	467 mA	246mA	Unshielded	792mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Surface Mount	-	0.313" L x 0.115" W (7.94mm x 2.92mm)	0.145" (3.68mm)
P1330R-223K FIXED IND 22UH 694MA 384MOHM SMD Delevan	629	3.22	RFQ	Datasheet	P1330R	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	22 µH	±10%	694 mA	348mA	Unshielded	384mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Surface Mount	-	0.313" L x 0.115" W (7.94mm x 2.92mm)	0.145" (3.68mm)

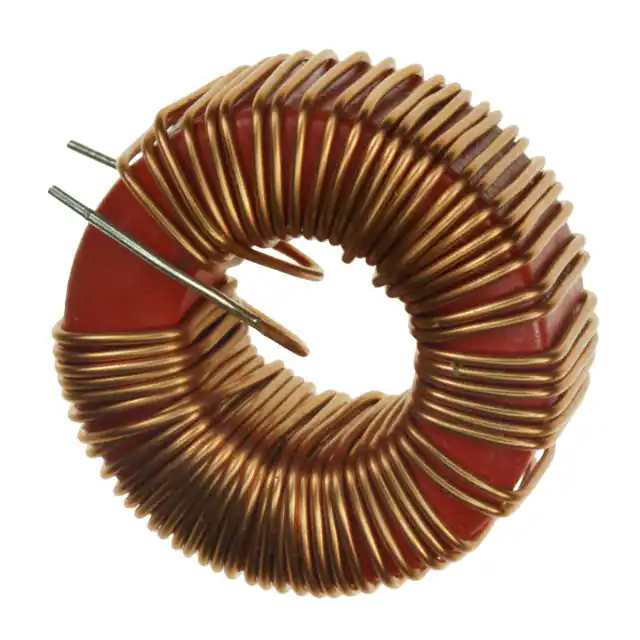

744103 FIXED IND 109UH 1.3A 300 MOHM TH Würth Elektronik	120	3.41	RFQ	Datasheet	WE-SI	Radial, Vertical (Open)	Bulk	Active	Toroidal	Ferrite	109 µH	±20%	1.3 A	1A	Unshielded	300mOhm Max	-	9.2MHz	-	-40°C ~ 105°C	10 kHz	-	Through Hole	-	0.591" Dia x 0.315" W (15.00mm x 8.00mm)	-
PA2050.233NL FIXED IND 23UH 8A 13.7 MOHM SMD Pulse Electronics	695	5.23	RFQ	Datasheet	PA2050NL	Nonstandard	Tray	Active	Wirewound	-	23 µH	±10%	8 A	9.8A	Shielded	13.7mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.875" L x 0.750" W (22.23mm x 19.05mm)	0.480" (12.20mm)
PG0077.202NLT FIXED IND 2UH 23A 2.9 MOHM SMD Pulse Electronics	1,909	3.09	RFQ	Datasheet	PG0077NL	Nonstandard	Tape & Reel (TR)	Active	-	-	2 µH	±20%	23 A	24A	Unshielded	2.9mOhm Max	-	-	-	-40°C ~ 95°C	100 kHz	-	Surface Mount	-	0.551" L x 0.512" W (14.00mm x 13.00mm)	0.256" (6.50mm)
744355019 FIXED IND 190NH 29A 0.5 MOHM SMD Würth Elektronik	395	3.27	RFQ	Datasheet	WE-HCI	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	190 nH	±20%	29 A	60A	Shielded	0.5mOhm	-	225MHz	AEC-Q200	-40°C ~ 155°C	100 kHz	-	Surface Mount	1350	0.512" L x 0.504" W (13.00mm x 12.80mm)	0.197" (5.00mm)
7843321000 WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik	197	3.48	RFQ	Datasheet	WE-CHSA	Nonstandard	Tape & Reel (TR)	Active	-	-	10 µH	±20%	7.8 A	10.8A	Shielded	20.35mOhm Max	-	30MHz	AEC-Q200	-55°C ~ 150°C	100 kHz	-	Surface Mount	-	0.480" L x 0.480" W (12.20mm x 12.20mm)	0.474" (12.05mm)
7843320100 FIXED IND 1UH 22.5A 2.4MOHM SMD Würth Elektronik	178	3.27	RFQ	Datasheet	WE-CHSA	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1 µH	±20%	22.5 A	33.7A	Shielded	2.4mOhm Max	-	81MHz	AEC-Q200	-55°C ~ 150°C	100 kHz	-	Surface Mount	1212	0.480" L x 0.480" W (12.20mm x 12.20mm)	0.474" (12.05mm)
7843331000 WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik	156	3.48	RFQ	Datasheet	WE-CHSA	Nonstandard	Tape & Reel (TR)	Active	-	-	10 µH	±20%	6.7 A	10.7A	Shielded	25.8mOhm Max	-	30MHz	AEC-Q200	-55°C ~ 150°C	100 kHz	-	Surface Mount	-	0.417" L x 0.417" W (10.60mm x 10.60mm)	0.445" (11.30mm)
7843321200 FIXED IND 12UH 7.1A 21.5MOHM SMD Würth Elektronik	139	3.48	RFQ	Datasheet	WE-CHSA	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	12 µH	±20%	7.1 A	10.3A	Shielded	21.5mOhm Max	-	28MHz	AEC-Q200	-55°C ~ 150°C	100 kHz	-	Surface Mount	1212	0.480" L x 0.480" W (12.20mm x 12.20mm)	0.474" (12.05mm)
7843331800 WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik	126	3.48	RFQ	Datasheet	WE-CHSA	Nonstandard	Tape & Reel (TR)	Active	-	-	18 µH	±20%	5.1 A	8.5A	Shielded	41.1mOhm Max	-	23MHz	AEC-Q200	-55°C ~ 150°C	100 kHz	-	Surface Mount	-	0.417" L x 0.417" W (10.60mm x 10.60mm)	0.445" (11.30mm)
7843320680 FIXED IND 6.8UH 9.8A 11.9MOHM SM Würth Elektronik	105	3.27	RFQ	Datasheet	WE-CHSA	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	6.8 µH	±20%	9.8 A	13A	Shielded	11.9mOhm Max	-	34MHz	AEC-Q200	-55°C ~ 150°C	100 kHz	-	Surface Mount	1212	0.480" L x 0.480" W (12.20mm x 12.20mm)	0.474" (12.05mm)
PA2729.383NL FIXED IND 38.3UH 6.5A 19.7 MOHM Pulse Electronics	1,040	3.56	RFQ	Datasheet	PA2729.XXXNL	Nonstandard	Tray	Active	Wirewound	-	38.3 µH	±15%	6.5 A	7.8A	Shielded	19.7mOhm Max	-	-	-	-55°C ~ 130°C	-	-	Surface Mount	-	0.875" L x 0.750" W (22.23mm x 19.05mm)	0.480" (12.20mm)
PA2729.243NL FIXED IND 24.5UH 8.1A 12.5 MOHM Pulse Electronics	975	3.56	RFQ	Datasheet	PA2729.XXXNL	Nonstandard	Tray	Active	Wirewound	-	24.5 µH	±15%	8.1 A	9.8A	Shielded	12.5mOhm	-	-	-	-55°C ~ 130°C	-	-	Surface Mount	-	0.875" L x 0.750" W (22.23mm x 19.05mm)	0.480" (12.20mm)
PA2729.173NL FIXED IND 17.1UH 9.9A 9.1MOHM SM Pulse Electronics	636	3.56	RFQ	Datasheet	PA2729.XXXNL	Nonstandard	Tray	Active	Wirewound	-	17.1 µH	±15%	9.9 A	11.7A	Shielded	9.1mOhm Max	-	-	-	-55°C ~ 130°C	-	-	Surface Mount	-	0.875" L x 0.750" W (22.23mm x 19.05mm)	0.480" (12.20mm)
PG0077.401NLT FIXED IND 450NH 45A 0.8 MOHM SMD Pulse Electronics	555	3.43	RFQ	Datasheet	PG0077NL	Nonstandard	Tape & Reel (TR)	Active	-	-	450 nH	±20%	45 A	48A	Unshielded	0.8mOhm Max	-	-	-	-40°C ~ 95°C	100 kHz	-	Surface Mount	-	0.551" L x 0.512" W (14.00mm x 13.00mm)	0.256" (6.50mm)

Total 147749 Record«Prev 1... 970 971 972 973974975 976 977...7388 Next»
