Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1305-8R2-RFIXED IND 8.2UH 7.3A 20.1MOHM SM |
2,582 | 5.02 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 7.3 A | 13A | Shielded | 20.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-330-RFIXED IND 33UH 4A 85.5 MOHM SMD |
393 | 5.02 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 4 A | 7A | Shielded | 85.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-3R3-RFIXED IND 3.3UH 12A 7.7MOHM SMD |
206 | 5.02 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 12 A | 16A | Shielded | 7.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-4R7-RFIXED IND 4.7UH 9.3A 12.7MOHM SM |
168 | 5.02 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 9.3 A | 15A | Shielded | 12.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
PM5433.103NLTFIXED IND 10UH 16A 9.6 MOHM SMD |
806 | 5.34 |
|
Datasheet |
PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 16 A | - | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
IHSM4825ER180LFIXED IND 18UH 1.9A 119 MOHM SMD |
707 | 4.98 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±15% | 1.9 A | 1.1A | Unshielded | 119mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
ASPIAIG-Q1010-4R7M-TFIXED IND 4.7UH 24A 5.7MOHM SMD |
408 | 5.70 |
|
Datasheet |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 24 A | 21.4A | Shielded | 5.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1010-2R2M-TFIXED IND 2.2UH 32A 2.8MOHM SMD |
377 | 5.70 |
|
Datasheet |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 32 A | 29A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|

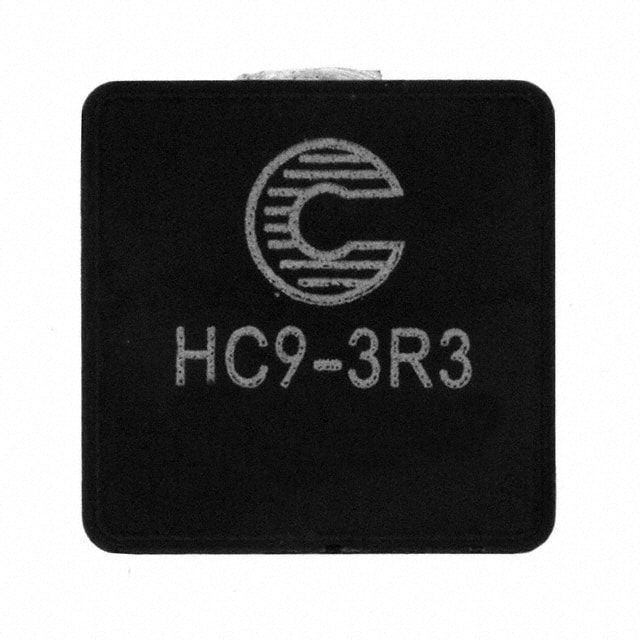

HC9-3R3-RFIXED IND 3.3UH 14.3A 4.87 MOHM |
948 | 3.45 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±15% | 14.3 A | 22A | Unshielded | 4.87mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
S1812-683KFIXED IND 68UH 215MA 4.3 OHM SMD |
2,098 | 4.59 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 215 mA | - | Shielded | 4.3Ohm Max | 50 @ 2.5MHz | 7.6MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-822KFIXED IND 8.2UH 372MA 1.44OHM SM |
2,066 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±10% | 372 mA | - | Shielded | 1.44Ohm Max | 40 @ 7.9MHz | 30MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-474KFIXED IND 470UH 91MA 24 OHM SMD |
682 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 91 mA | - | Shielded | 24Ohm Max | 40 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IHSM5832ER100LFIXED IND 10UH 4.3A 53 MOHM SMD |
126 | 5.29 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±15% | 4.3 A | 1.8A | Unshielded | 53mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
SPD74R-105MFIXED IND 1MH 280MA 6 OHM SMD |
1,169 | 4.61 |
|
Datasheet |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 280 mA | 280mA | Shielded | 6Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SPD74R-104MFIXED IND 100UH 860MA 610MOHM SM |
685 | 4.61 |
|
Datasheet |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 860 mA | 860mA | Shielded | 610mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SPD74R-153MFIXED IND 15UH 2.4A 81 MOHM SMD |
360 | 4.61 |
|
Datasheet |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.4A | Shielded | 81mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
PE-51516NLFIXED IND 98UH 6A 48 MOHM TH |
391 | 8.08 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 98 µH | - | 6 A | - | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
IHD3EB681LFIXED IND 680UH 1A 570 MOHM TH |
134 | 5.01 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±15% | 1 A | 670mA | Unshielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
AMPLA1707S-150MTFIXED IND 15UH 12.5A 20.5MOHM SM |
373 | 5.70 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 15 µH | ±20% | 12.5 A | 27A | Shielded | 20.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
MIL1812-821KFIXED IND 820NH 354MA 1.6OHM SMD |
1,642 | 4.74 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±10% | 354 mA | - | Unshielded | 1.6Ohm Max | 30 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
