Pressure Sensors, Transducers - Industrial
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

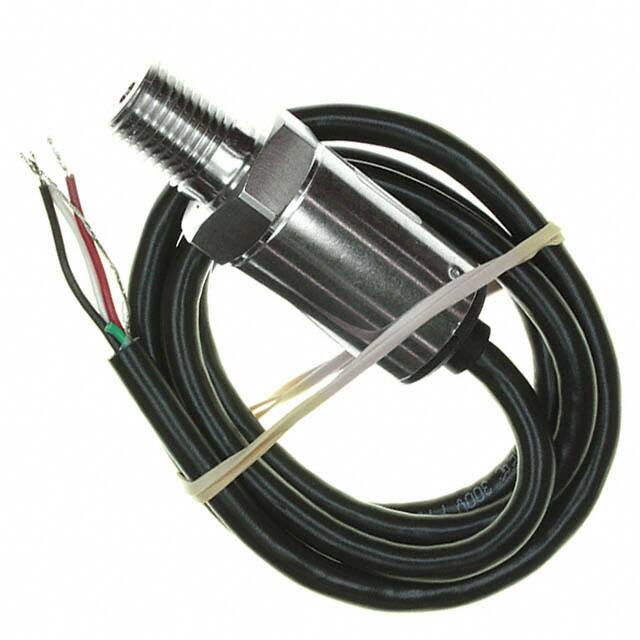

P51-500-A-A-I36-4.5OVP-000-000SENSOR 500PSIA 1/4NPT 4.5V |
3,416 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

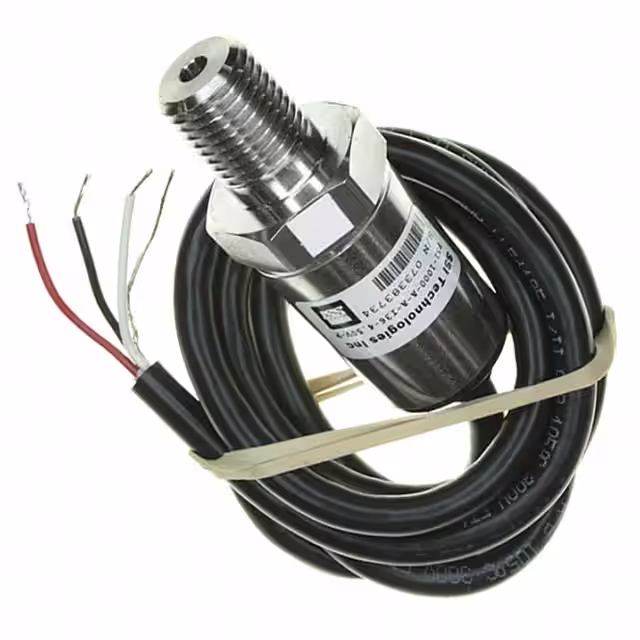

P51-1000-A-A-I36-4.5OVP-000-000SENSOR 1000PSIA 1/4NPT 4.5V |
1,694 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

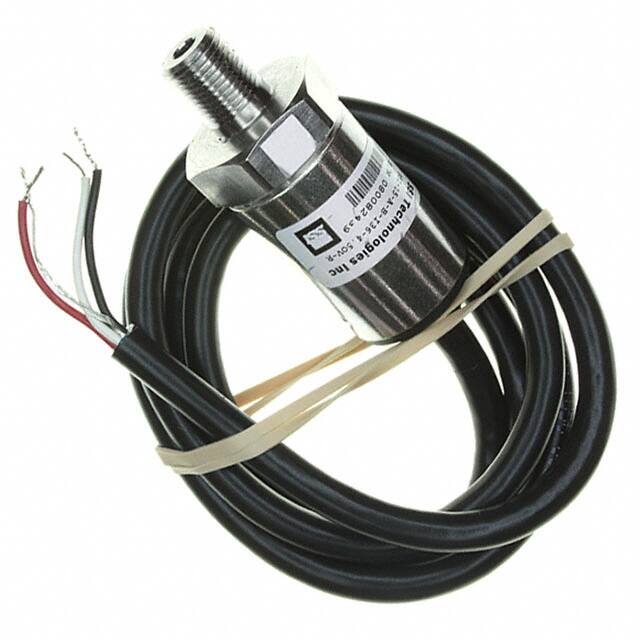

P51-15-A-UB-I36-4.5OVP-000-000SENSOR 15PSIA 1/8NPT 4.5V |
1,224 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Female - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-1000-A-B-I36-4.5OVP-000-000SENSOR 1000PSIA 1/8NPT 4.5V |
4,035 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Absolute | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-50-S-A-I36-4.5OVP-000-000SENSOR 50PSIS 1/4NPT 4.5V OVP |
3,507 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

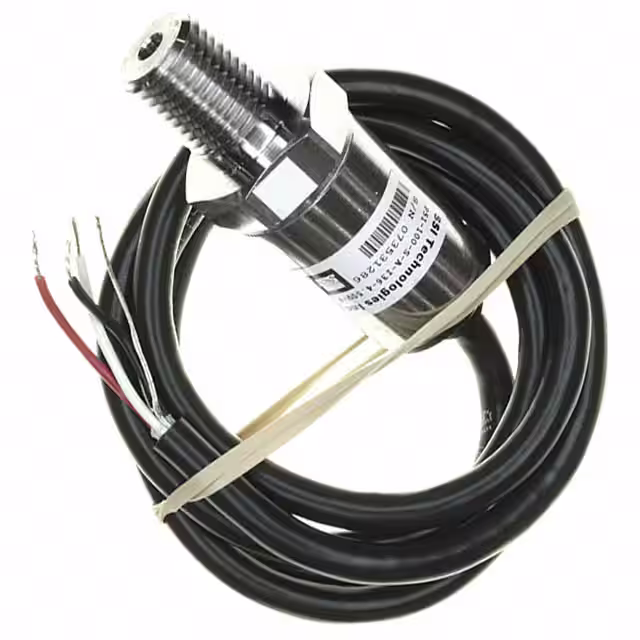

P51-100-S-A-I36-4.5OVP-000-000SENSOR 100PSIS 1/4NPT 4.5V OVP |
4,429 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

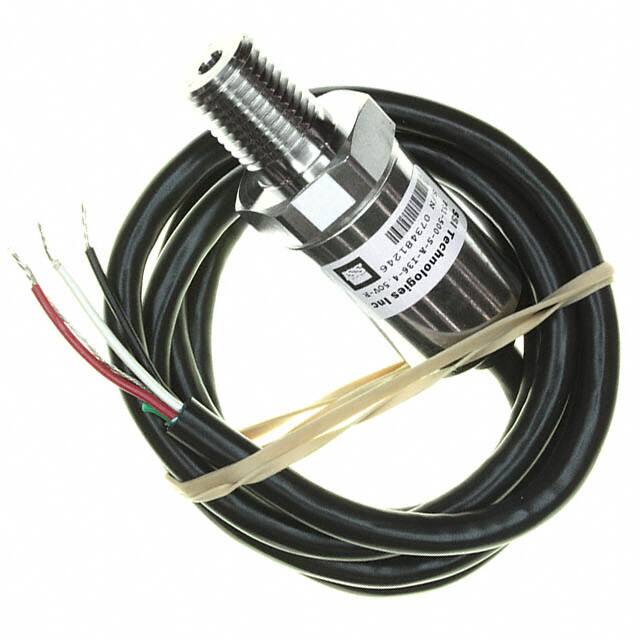

P51-500-S-A-I36-4.5OVP-000-000SENSOR 500PSIS 1/4NPT 4.5V OVP |
2,623 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-1000-S-A-I36-4.5OVP-000-000SENSOR 1000PSIS 1/4NPT 4.5V OVP |
2,829 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

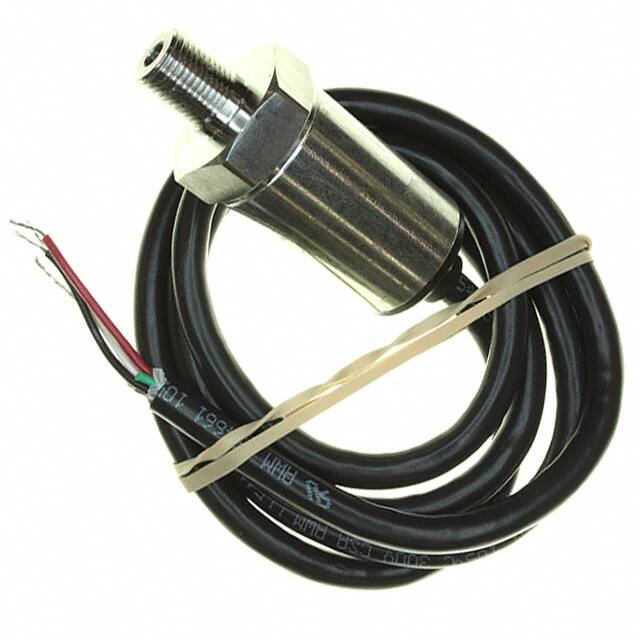

P51-50-S-B-I36-4.5OVP-000-000SENSOR 50PSIS 1/8NPT 4.5V OVP |
1,278 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

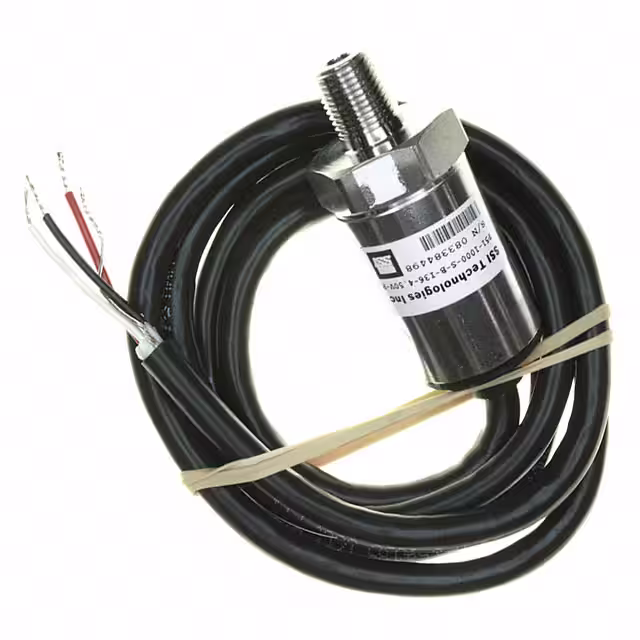

P51-1000-S-B-I36-4.5OVP-000-000SENSOR 1000PSIS 1/8NPT 4.5V OVP |
4,902 | 94.98 |
|
Datasheet |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Sealed Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
PX2JG1XX016BSCHXHEAVY DUTY PRESSURE TRANSDUCER |
3,677 | 0.00 |
|
Datasheet |
PX2 | Cylinder | Bulk | Obsolete | Industrial Automation | Sealed Gauge | 232.06PSI (1600kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Connector | 754.2PSI (5200kPa) | -40°C ~ 125°C | - |
|
|
9013FHG33J52M1PRESSURE SWITCH 575VAC 1HP F +OP |
2,678 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FHG49J68X1PRESSURE SWITCH 575VAC 1HP F +OP |
1,362 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FHG52J59M1PRESSURE SWITCH 575VAC 1HP F +OP |
1,775 | 0.00 |
|
Datasheet |
9013FH | Module | Bulk | Active | - | Differential | 100PSI ~ 200.01PSI (689.5kPa ~ 1379kPa) | DPST-NC | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
9013FHG19J27X1PRESSURE SWITCH 575VAC 1HP F +OP |
3,790 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FHG52J52M1PRESSURE SWITCH 575VAC 1HP F +OP |
4,624 | 0.00 |
|
Datasheet |
9013FH | Module | Bulk | Active | - | Differential | 100PSI ~ 200.01PSI (689.5kPa ~ 1379kPa) | DPST-NC | - | ±3% | - | Female - 1/4" (6.35mm) NPS | Threaded | - | Screw Terminal | 219.99PSI (1516.8kPa) | -30°C ~ 70°C | - |
|
|
9013FHG12J52X1PRESSURE SWITCH 575VAC 1HP F +OP |
2,751 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FHG12J55X1PRESSURE SWITCH 575VAC 1HP F +OP |
2,885 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9013FHG3S128J27XPRESSURE SWITCH 600VAC 12A F SPE |
1,171 | 0.00 |
|
Datasheet |
9013FH | Module | Bulk | Active | - | Differential | 40PSI ~ 100PSI (275.8kPa ~ 689.5kPa) | DPST | - | - | - | Female - 3/8" (9.53mm) NPS | Threaded | - | Screw Terminal | 220PSI (1516.84kPa) | - | - |
|
|
9013FHG19J52X1PRESSURE SWITCH 575VAC 1HP F +OP |
4,202 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
