Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX14803AEWZ+TIC SW SPST-NOX16 48OHM 110WLP |
4,644 | 34.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 200V | ±160V | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 110-WLP (5.4x5.8) |
|
MAX359MJE/883BIC SWITCH SP4TX2 1.8KOHM 16CDIP |
2,901 | 36.09 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 1.8kOhm | - | - | ±4.5V ~ 18V | 500ns, 500ns | - | - | - | 5µA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
HI9P0546-9Z96IC MUX 16:1 1.8KOHM 28SOIC |
3,575 | 50.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
HI9P0547-9Z96IC MUX DUAL 8:1 1.8KOHM 28SOIC |
4,173 | 49.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 2 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns | - | - | 10pF, 30pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
MAX3997ETM+TIC MULTIPLEXER 4CH 48TQFN |
1,139 | 36.84 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DG200AAK/883BIC SWITCH SPST-NCX2 70OHM 16CDIP |
4,177 | 40.08 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 2 | 70Ohm | - | - | ±4.5V ~ 18V | 1µs, 500ns | - | 10pC | 9pF, 9pF | 2nA | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
MAX14803CCM+TCP3IC SW SPST-NOX16 48OHM 48LQFP |
4,470 | 43.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 250V | ±160V | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|

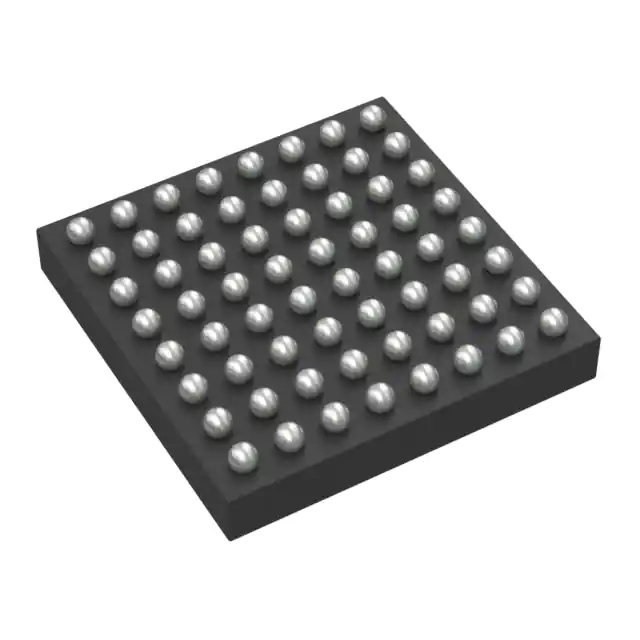

MAX4968BEXB+TIC SW SPST-NOX16 34OHM 64CTBGA |
4,820 | 50.81 |
|
- |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 34Ohm | 1.02Ohm | 10V ~ 12.5V | - | 5µs, 3.5µs | 30MHz | 150pC | 8pF | - | -69dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 64-CTBGA (7x7) |
|
|
MAX4968CEXB+TIC SW SPST-NOX16 34OHM 64CTBGA |
1,690 | 50.67 |
|
- |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 34Ohm | 1.02Ohm | 10V ~ 12.5V | - | 5µs, 3.5µs | 30MHz | 150pC | 8pF | - | -69dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 64-CTBGA (7x7) |
|
|
MAX14803CCM+CP3IC SW SPST-NOX16 48OHM 48LQFP |
4,992 | 43.62 |
|
Datasheet |
- | Tray | Active | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 250V | ±160V | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
MAX329MWE/PR3+TIC SWITCH SP4TX2 2.5KOHM 16SOIC |
2,888 | 46.29 |
|
- |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 2.5kOhm | 50Ohm | 10V ~ 30V | ±5V ~ 18V | 1µs, 700ns | - | 2pC | 1.8pF, 4pF | 10pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX328MWE/PR3+TIC MUX 8:1 2.5KOHM 16SOIC |
2,464 | 46.29 |
|
- |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 2.5kOhm | 50Ohm | 10V ~ 30V | ±5V ~ 18V | 1µs, 700ns | - | 2pC | 1.8pF, 8pF | 10pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG411HSAKIC SW SPST-NCX4 35OHM 16CERDIP |
2,656 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 35Ohm | - | 13V ~ 44V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
DG411HSAK-E3IC SW SPST-NCX4 35OHM 16CERDIP |
4,889 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 35Ohm | - | 13V ~ 44V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
DG412HSAKIC SW SPST-NOX4 35OHM 16CERDIP |
3,477 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 35Ohm | - | 13V ~ 44V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
DG412HSAK-E3IC SW SPST-NOX4 35OHM 16CERDIP |
1,721 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 35Ohm | - | 13V ~ 44V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
DG413HSAKIC SW SPST-NO/NCX4 35OHM 16SOIC |
1,171 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 13V ~ 44V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG413HSAK-E3IC SW SPST-NO/NCX4 35OHM 16SOIC |
3,696 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 13V ~ 44V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG417BAKIC SW SPST-NCX1 35OHM 8CERDIP |
1,966 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 35Ohm | - | 13V ~ 36V | ±7V ~ 22V | 62ns, 53ns | - | 38pC | 12pF, 12pF | 250pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
DG417BAK-E3IC SW SPST-NCX1 35OHM 8CERDIP |
1,741 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 35Ohm | - | 13V ~ 36V | ±7V ~ 22V | 62ns, 53ns | - | 38pC | 12pF, 12pF | 250pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
