Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74HC4066ADR2GIC SWITCH SPST-NOX4 70OHM 14SOIC |
2,755 | 0.86 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 70Ohm | 15Ohm | 2V ~ 12V | - | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|
NX3L4357GM,115IC SWITCH SP3TX1 750MOHM 10XQFN |
1,017 | 1.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 750mOhm | 90mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
FSA5157P6XIC SWITCH SPDT X 1 360MOHM SC88 |
4,014 | 0.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 360mOhm (Typ) | 40mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 80MHz | 6pC | 21pF | 10nA | -75dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
TMUX1072DGSRIC SWITCH SPDT X 2 18OHM 10VSSOP |
5,059 | 1.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 18Ohm | 70mOhm | 2.3V ~ 5.5V | - | 250µs, 10µs | 1.2GHz | - | 4pF, 4pF | 185µA | -90dB @ 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 10-VSSOP |
|
MC74VHC4053DTR2GIC SWITCH SPDTX3 100OHM 16TSSOP |
7,919 | 0.68 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 120MHz | - | 50pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUXHS221NKGTIC SWITCH DPDT X 1 8OHM 10UQFN |
4,047 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | DPDT | 2:1 | 1 | 8Ohm | 500mOhm (Max) | 3V ~ 3.6V | - | 16µs, 500ns | 3.3GHz | - | - | 2µA | -32dB @ 240MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
MC74HC4051ADR2GIC MUX 8:1 100OHM 16SOIC |
26,936 | 1.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 80MHz | - | 130pF | 200nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|

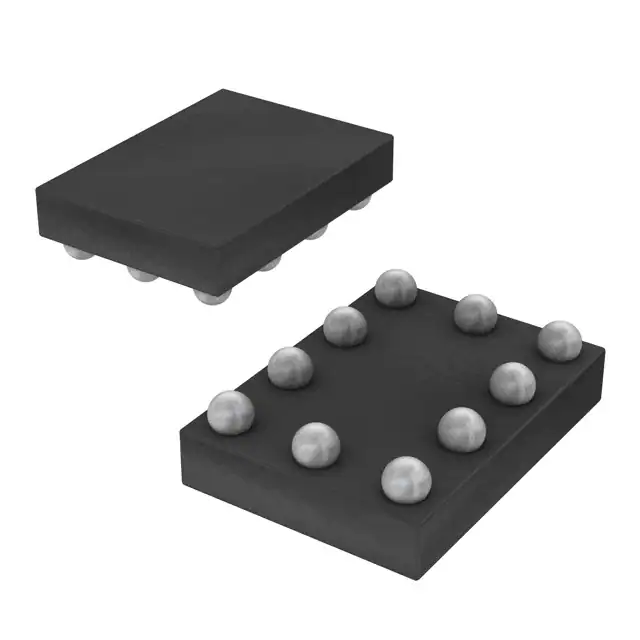

TS5A22362YZPRIC SWITCH SPDTX2 740MOHM 10DSBGA |
1,987 | 1.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DSBGA |
|
|
MC74HC4051ADGIC MUX 8:1 100OHM 16SOIC |
1,872 | 0.62 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 80MHz | - | 130pF | 200nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TMUX1208QRSVRQ1IC MUX 8:1 5OHM 16UQFN |
41,903 | 1.87 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 5Ohm (Typ) | 150mOhm | 1.08V ~ 5.5V | - | 14ns (Typ), 11ns | 65MHz | -8pC | 13pF, 76pF | 75nA | -62dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-UQFN (2.6x1.8) |
|
DG2523DN-T1-GE4IC SWITCH DPDT X 2 550MOHM 16QFN |
2,967 | 1.41 |
|
Datasheet |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.8V ~ 5.5V | - | 60µs, 1µs | 310MHz | -19pC | - | 1nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
74HC4067BQ-Q100JIC MUX 16:1 120OHM 24DHVQFN |
1,116 | 1.54 |
|
Datasheet |
74HC | Tape & Reel (TR) | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 45ns, 45ns | 100MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-DHVQFN (5.5x3.5) |
|
HCF4051YM013TRIC MUX 8:1 280OHM 16SO |
121,000 | 1.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 280Ohm | 5Ohm | 3V ~ 20V | - | - | 60MHz | - | 0.2pF, 5pF | 100nA | -40dB @ 3MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
|
NX3L4051HRZIC MUX 8:1 900MOHM 16HXQFN |
2,154 | 0.69 |
|
- |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 900mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HXQFN (3x3) |
|
TC74HC4052APFIC SWITCH SP4T X 2 100OHM 16DIP |
858 | 0.74 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 5Ohm | 2V ~ 6V | ±2V ~ 6V | 18ns, 29ns (Typ) | 140MHz | - | 2pF, 40pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-DIP |
|
BU4S66G2-TRIC SWITCH SPST-NOX1 280OHM 5SSOP |
22,925 | 0.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 280Ohm | - | 3V ~ 18V | - | - | - | - | 10pF | 300nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SSOP |
|
DG447DV-T1-E3IC SWITCH SPST-NCX1 25OHM 6TSOP |
14,496 | 1.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 25Ohm | - | 7V ~ 36V | ±4.5V ~ 20V | 130ns, 95ns | - | 10pC | 19pF, 8pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
DG442LEDY-T1-GE3IC SWITCH SPST-NOX4 26OHM 16SOIC |
11,604 | 1.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 26Ohm | 100mOhm | 3V ~ 16V | ±3V ~ 8V | 60ns, 35ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG441LEDY-T1-GE3IC SWITCH SPST-NCX4 26OHM 16SOIC |
2,661 | 1.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 26Ohm | 100mOhm | 3V ~ 16V | ±3V ~ 8V | 60ns, 35ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC14053BDR2GIC SWITCH SPDT X 3 280OHM 16SOIC |
12,422 | 0.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
