Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG413LDQ-E3IC SW SPST-NO/NCX4 17OHM 16TSSOP |
1,517 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO/NC | 1:1 | 4 | 17Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 19ns, 12ns | 280MHz | 5pC | 5pF, 6pF | 250pA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MC74HCT4851ADGIC MUX 8:1 400OHM 16SOIC |
4,880 | 1.00 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | - | 4.5V ~ 5.5V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MC74HCT4851ADTGIC MUX 8:1 400OHM 16TSSOP |
2,848 | 1.00 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | - | 4.5V ~ 5.5V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

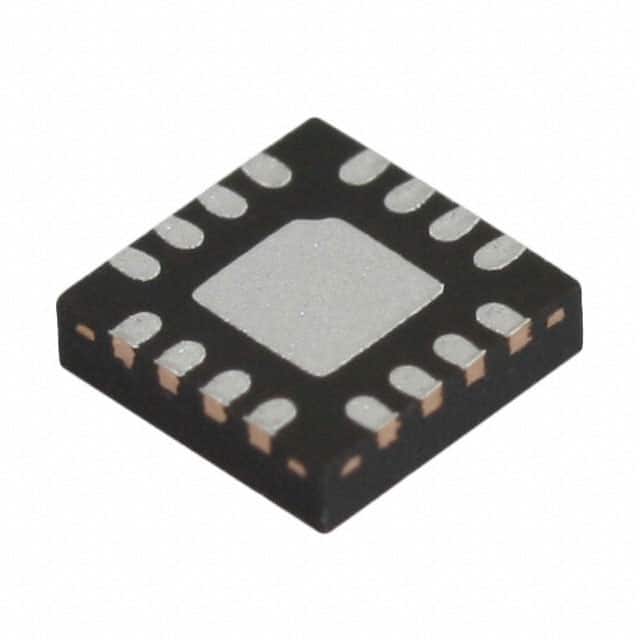

AS1752V-TIC SW SPST-NCX4 900MOHM 16TQFN |
2,601 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 22ns, 14ns | - | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
NX3L2467HR,115IC SWITCH DPDTX2 750MOHM 16HXQFN |
3,463 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | DPDT | 2:1 | 2 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HXQFN (3x3) |
|
NX3L2G384GD,125IC SW SPST-NCX2 750MOHM 8XSON |
4,514 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 24ns, 7ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT996-2 (2x3) |
|
NX3L2T384GT,115IC SW SPST-NCX2 750MOHM 8XSON |
3,178 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 40ns, 15ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
|
NX3L4051HR,115IC MUX 8:1 750MOHM 16HXQFN |
1,350 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | - | 8:1 | 1 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HXQFN (3x3) |
|
NX3V1T66GW,125IC SW SPST-NOX1 450MOHM 5TSSOP |
4,216 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 450mOhm | - | 1.4V ~ 4.3V | - | 28ns, 20ns | 25MHz | 12pC | 70pF | 10nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-TSSOP |
|
ISL54504IHZ-TIC SWITCH SPST-NOX1 2.5OHM 6SOT |
4,029 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 2.5Ohm | - | 1.8V ~ 5.5V | - | 25ns, 15ns | 250MHz | 24pC | 7pF | 25nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
ISL54062IRTZ-TIC SWITCH SPDTX2 550MOHM 10TDFN |
2,500 | 1.04 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm (Typ) | 15mOhm | 1.8V ~ 6.5V | - | 35ns, 16ns | 60MHz | 170pC | 36pF | - | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54063IRTZ-TIC SW SPST-NOX2 550MOHM 10TDFN |
3,411 | 1.04 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 550mOhm (Typ) | 15mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | - | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54064IRTZ-TIC SW SPST-NCX2 550MOHM 10TDFN |
4,557 | 1.04 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 550mOhm (Typ) | 15mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | - | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54066IRTZ-TIC SWITCH SPST-NOX2 1OHM 10TDFN |
3,554 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 1Ohm | 5mOhm | 1.8V ~ 6.5V | - | 39ns, 27ns | 30MHz | 170pC | 33pF | - | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
ISL54051IHZ-TIC SWITCH SPST-NOX1 860MOHM 6SOT |
3,098 | 2.60 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 860mOhm (Typ) | - | 1.8V ~ 5.5V | - | 24ns, 10ns | 190MHz | 26pC | 16pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
|
ISL54052IHZ-TIC SWITCH SPST-NCX1 860MOHM 6SOT |
3,827 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 860mOhm (Typ) | - | 1.8V ~ 5.5V | - | 24ns, 10ns | 190MHz | 26pC | 16pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
|
ISL54054IHZ-TIC SWITCH SPST-NOX1 360MOHM 6SOT |
4,845 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 360mOhm (Typ) | - | 1.8V ~ 5.5V | - | 12ns, 12ns | 72MHz | 71pC | 30pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
ISL54063IRUZ-TIC SW SPST-NOX2 550MOHM 10UTQFN |
3,742 | 1.04 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 550mOhm (Typ) | 15mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | - | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54064IRUZ-TIC SW SPST-NCX2 550MOHM 10UTQFN |
3,175 | 1.04 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 550mOhm (Typ) | 15mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | - | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54066IRUZ-TIC SWITCH SPST-NOX2 1OHM 10UTQFN |
3,649 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 1Ohm | 5mOhm | 1.8V ~ 6.5V | - | 39ns, 27ns | 30MHz | 170pC | 33pF | - | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
