Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8273AB-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
4,331 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274AB1-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
2,152 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274AB4D-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
4,769 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB1-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
4,389 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB4D-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
2,636 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275ABD-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
3,016 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275AB-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
2,172 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275BBD-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
4,812 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI8275BB-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
4,545 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI8275DBD-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
3,287 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI8275DB-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
1,803 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI8275GBD-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
2,154 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|
|
SI8275GB-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
4,360 | 6.12 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|

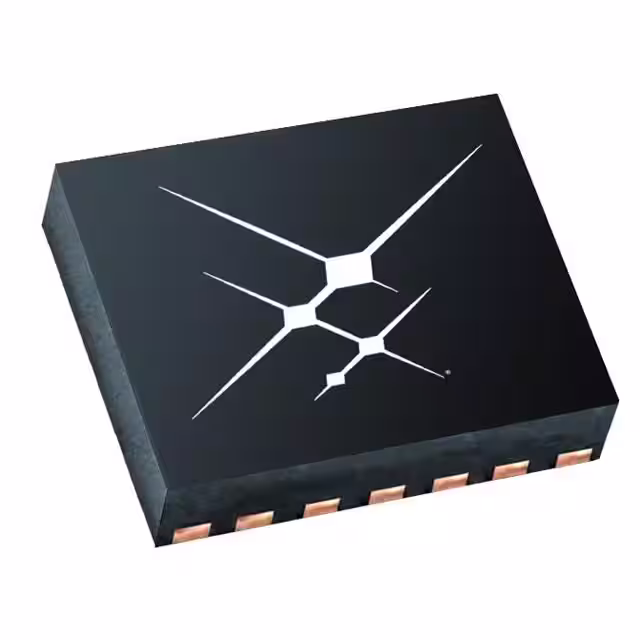

SI8273GB-IM1DGTL ISO 2.5KV 1CH GT DVR 14DFN |
2,340 | 3.84 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-DFN (5x5) | CQC, CSA, UL, VDE |
|
SI823H9CD-AS4RDGTL ISO 5KV 1CH GATE DVR 8SOIC |
1,622 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H9BD-AS4RDGTL ISO 5KV 1CH GATE DVR 8SOIC |
4,090 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H9AD-AS4RDGTL ISO 5KV 1CH GATE DVR 8SOIC |
2,582 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
SI8220CD-D-ISDGTL ISO 5KV 1CH GATE DVR 16SOIC |
3,643 | 3.86 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 30kV/µs (Typ) | 60ns, 40ns | - | 20ns, 20ns (Max) | 1.5A, 2.5A | 2.5A | 2.5V (Max) | 30 mA | 12.2V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8220DD-D-ISDGTL ISO 5KV 1CH GATE DVR 16SOIC |
1,469 | 3.86 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 30kV/µs (Typ) | 60ns, 40ns | - | 20ns, 20ns (Max) | 1.5A, 2.5A | 2.5A | 2.5V (Max) | 30 mA | 14.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
UCC21520AQDWQ1DGTL ISO 5.7KV 2CH GT DVR 16SOIC |
3,418 | 4.24 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 6.5V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
