Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8275BB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,806 | 4.70 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8275DB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,223 | 4.70 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
SI8238BB-D-YS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,698 | 0.00 |
|
- |
Si823Hx | 16-SOIC (0.154", 3.90mm Width) | Tube | Not For New Designs | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8233BB-D-YS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
4,823 | 0.00 |
|
- |
Si823Hx | 16-SOIC (0.154", 3.90mm Width) | Tube | Not For New Designs | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI82521BD-AS3RDGTL ISO 5KV 1CH GATE DVR 14SOIC |
2,019 | 0.00 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82521AD-AS3RDGTL ISO 5KV 1CH GATE DVR 14SOIC |
2,628 | 0.00 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82520BD-AS3RDGTL ISO 5KV 1CH GATE DVR 14SOIC |
2,084 | 0.00 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82521CD-AS3RDGTL ISO 5KV 1CH GATE DVR 14SOIC |
1,534 | 0.00 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82520AD-AS3RDGTL ISO 5KV 1CH GATE DVR 14SOIC |
4,421 | 0.00 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82520CD-AS3RDGTL ISO 5KV 1CH GATE DVR 14SOIC |
4,501 | 0.00 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A, 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI8234BB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
4,245 | 4.72 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H7BB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,720 | 5.65 |
|
Datasheet |
Si823Hx | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 7V ~ 8.2V | - | - | -40°C ~ 125°C (TA) | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H4CB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
3,865 | 5.65 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 125kV/µs | 30ns, 58ns | 5ns | 12ns, 12ns | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
ACPL-3130-500EOPTOISO 3.75KV 1CH GT DVR 8DIP |
2,165 | 4.34 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
ISO5851QDWQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
2,233 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5700Vrms | 100kV/µs | 110ns, 110ns | - | 20ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, TUV, UL, VDE |
|
1ED020I12FTXUMA1DGT ISO 4.5KV 1CH GT DVR DSO16 |
3,670 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 20ns | 2A, 2A | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|

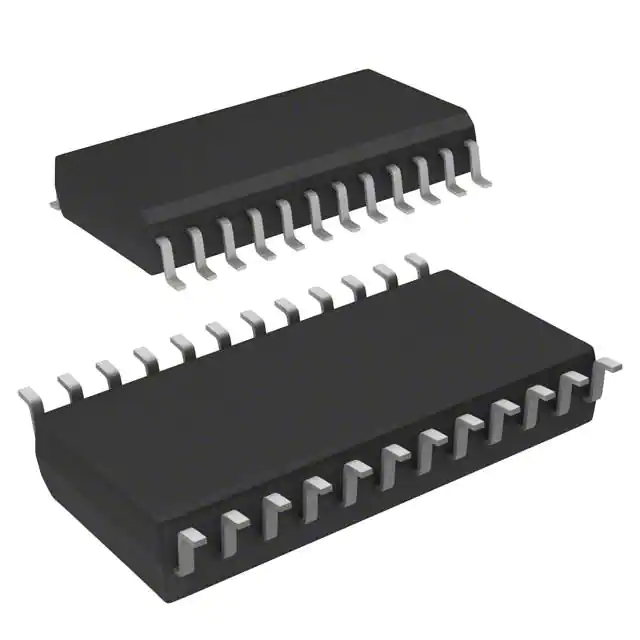

STGAP1ASDGTL ISO 2.5KV 1CH GATE DVR 24SO |
2,649 | 6.95 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | - |
|
|
PS9905-Y-F3-AXOPTOISO 7.5KV 1CH GT DVR 8LSDIP |
1,237 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Optical Coupling | 1 | 7500Vrms | 25kV/µs | 150ns, 150ns | 75ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP | CSA, SEMKO, UL |
|
|
SI8282DD-ISRDGTL ISO 5KV 1CH GATE DVR 20SOIC |
1,240 | 0.00 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 14V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC | CQC, CSA, UL, VDE |
|
|
SI8281ED-ISRDGTL ISO 5KV 1CH GATE DVR 20SOIC |
1,491 | 0.00 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 16V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC | CQC, CSA, UL, VDE |
