Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IX3180GSOPTOISO 3.75KV 1CH GATE DVR 8SMD |
1,798 | 0.00 |
|
- |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
|
IX3180GSTROPTOISO 3.75KV 1CH GATE DVR 8SMD |
1,750 | 0.00 |
|
- |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UR |
|
IX3180GOPTOISO 3.75KV 1CH GATE DVR 8DIP |
2,357 | 0.00 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.35V | 20 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
|
EL3120OPTOISO 5KV 1CH GATE DVR 8DIP |
1,533 | 1.26 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 300ns, 300ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.4V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | cUL, DEMKO, FIMKO, NEMKO, SEMKO |
|
TLP2451A(F)OPTOISO 3.75KV 1CH GATE DVR 8SO |
3,597 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | CSA, cUL, UL |
|

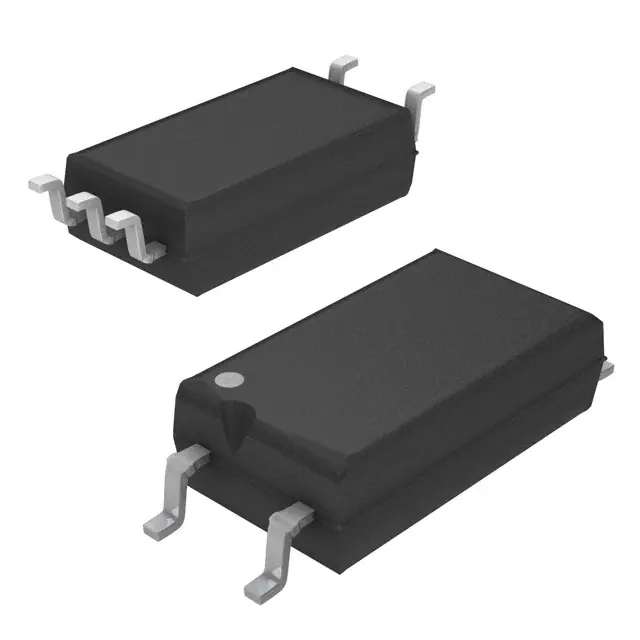

VOL3120-X001TOPTOISO 5.3KV 1CH GATE DVR 5LSOP |
4,387 | 0.91 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5300Vrms | 48kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.36V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 100°C | Surface Mount | 5-LSOP | CQC, cUR, UR, VDE |
|

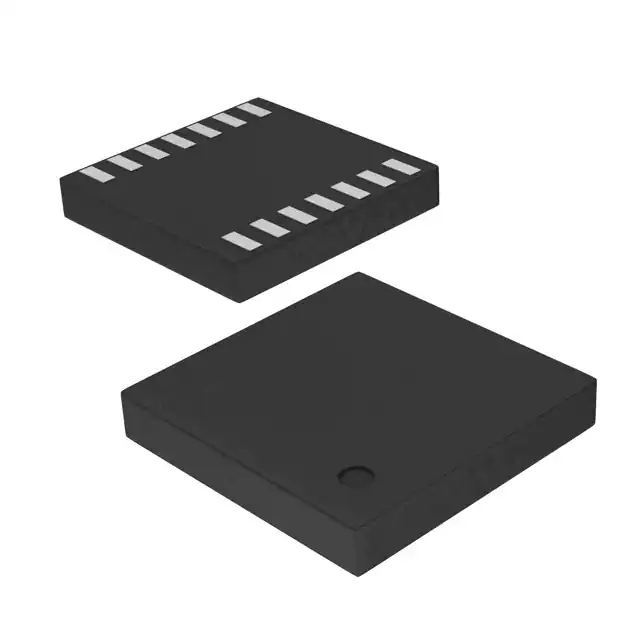

SI8274AB1-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
2,145 | 0.00 |
|
Datasheet |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB1-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
4,564 | 0.00 |
|
Datasheet |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB4D-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
3,385 | 0.00 |
|
Datasheet |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275AB-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
2,233 | 0.00 |
|
Datasheet |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|

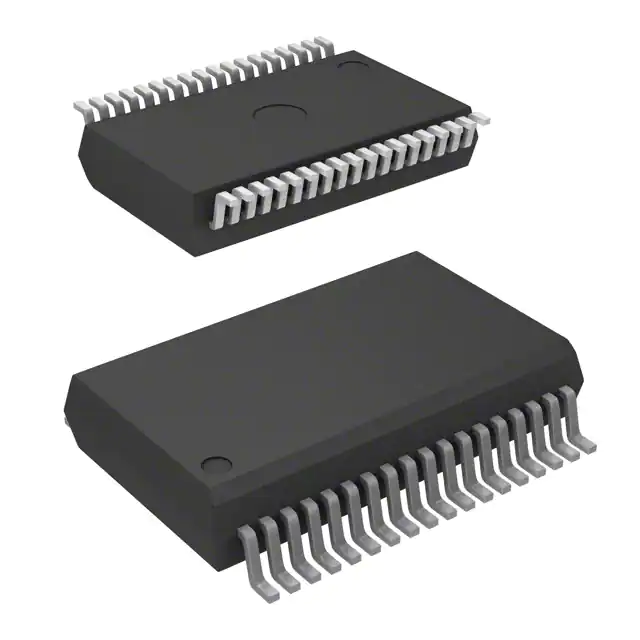

1EDI2001ASXUMA2DGT ISO 3.75KV 1CH GT DVR DSO36 |
4,013 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 3750Vrms | - | - | - | 30ns, 60ns | 1A, 1A | - | - | - | 13V ~ 18V | Automotive | AEC-Q100 | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-36-63 | - |
|

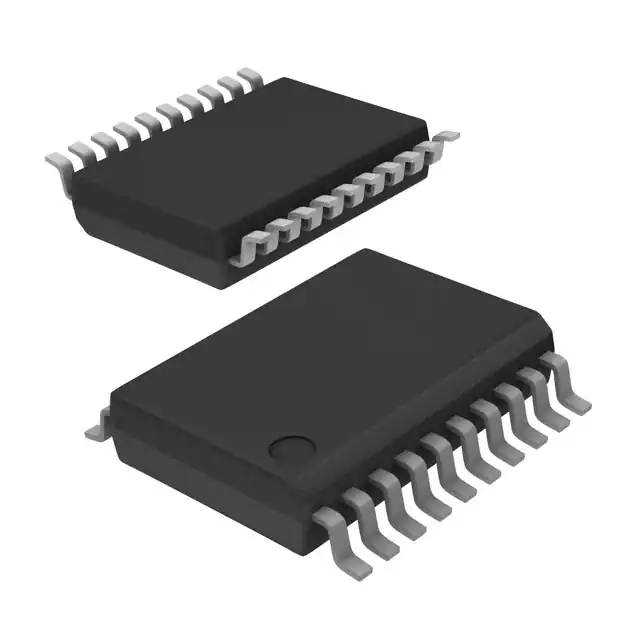

BM60210FV-CE2DIGITAL ISO 1CH GATE DVR 20SSOP |
4,363 | 0.00 |
|
Datasheet |
- | 20-SSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | 100kV/µs | 75ns, 75ns | - | 50ns, 50ns | 3A, 3A | 5A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SSOP-BW | - |
|
|
5962-1223601HEAOPTOISO 1.5KV 1CH GT DVR 16CDIP |
4,780 | 0.00 |
|
Datasheet |
- | 16-CDIP (0.300", 7.62mm) | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 16-CDIP | - |
|
|
VOL3120TOPTOISO 5.3KV 1CH GATE DVR 5LSOP |
1,810 | 0.88 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5300Vrms | 48kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.36V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 100°C | Surface Mount | 5-LSOP | CQC, cUR, UR |
|
|
BM60016FV-CE2DGTL ISO 2.5KV 1CH GT DVR 10SSOP |
1,711 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 75ns, 75ns | - | 50ns, 50ns | 3A, 3A | 5A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP | - |
|
|
BM60055FV-CE2DGTL ISO 2.5KV 1CH GT DVR 28SSOP |
2,126 | 0.00 |
|
Datasheet |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 250ns, 250ns | - | 30ns, 30ns | - | 5A | - | - | 9V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 28-SSOP | - |
|

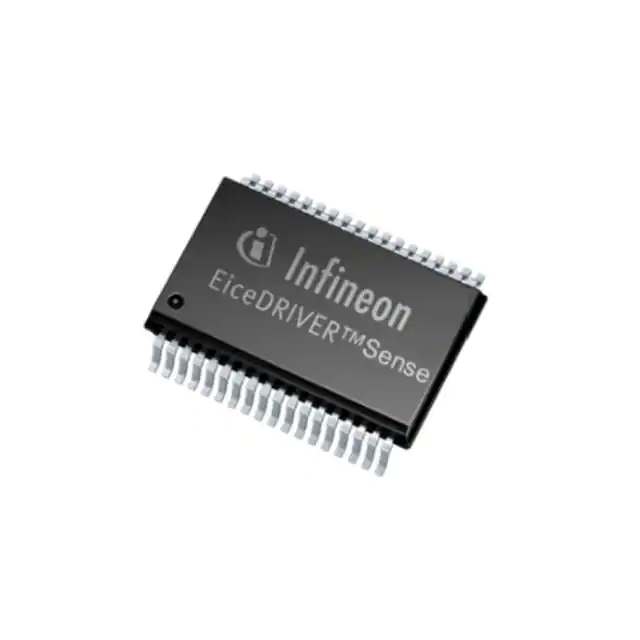

1EDI2015ASXUMA1DIGITAL ISO 1CH GT DVR DSO36-63 |
4,496 | 0.00 |
|
- |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | - | - | - | - | - | - | Automotive | AEC-Q100 | - | Surface Mount | PG-DSO-36-63 | - |
|
|
SI8236BB-D-IMRDIGITAL ISO 2CH GATE DVR 14LGA |
3,104 | 0.00 |
|
Datasheet |
- | 14-VFLGA | Tube | Obsolete | Capacitive Coupling | 2 | - | - | - | - | - | - | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8236BB-D-IMDIGITAL ISO 2CH GATE DVR 14LGA |
1,030 | 0.00 |
|
Datasheet |
- | 14-VFLGA | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | - | - | - | - | - | - | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|

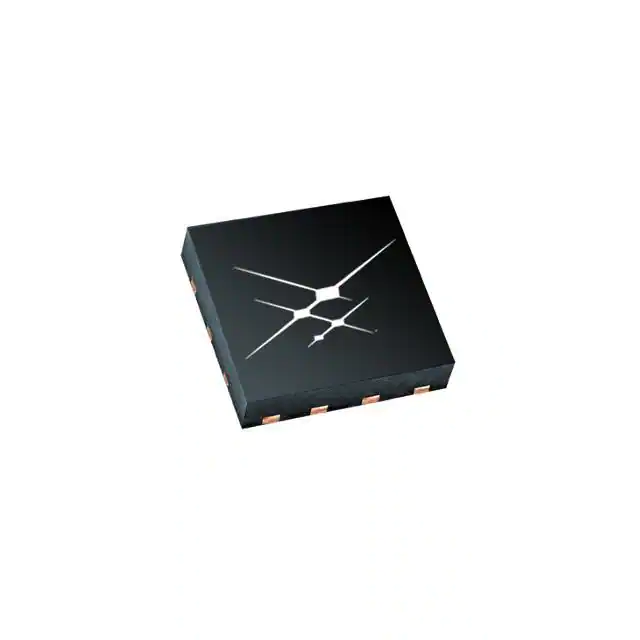

SI8233AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
2,840 | 3.05 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
