Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-3180-300EOPTOISO 3.75KV 1CH GT DVR 8DIP |
6,162 | 4.47 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|

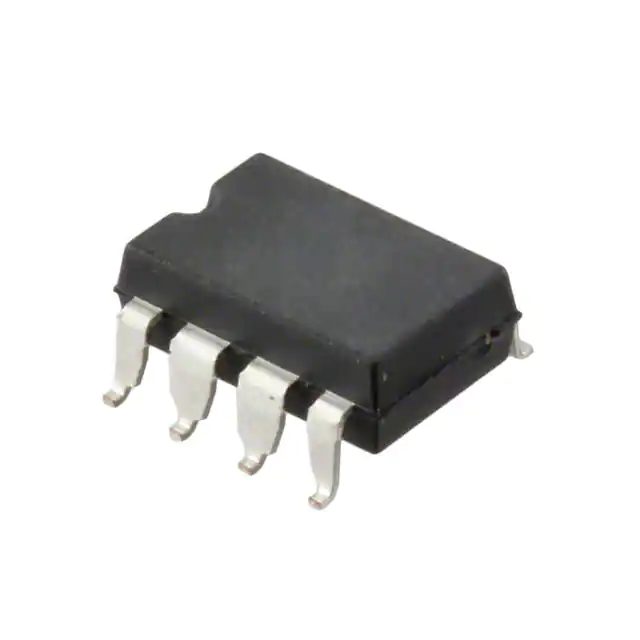

FDA217SOPTOISO 3.75KV 2CH GATE DVR 8SMD |
20,855 | 4.52 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 2 | 3750Vrms | - | 2ms, 0.5ms | - | - | - | - | 1.26V | 5 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD | EN, IEC, TUV |
|
|
HCNW3120-500EOPTOISO 5KV 1CH GATE DVR 8DIP GW |
13,200 | 4.54 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
|
HCNW3120-300EOPTOISO 5KV 1CH GATE DVR 8DIP GW |
4,857 | 4.54 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
SI8220BB-D-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
2,318 | 3.62 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 2500Vrms | 30kV/µs (Typ) | 60ns, 40ns | - | 20ns, 20ns (Max) | 1.5A, 2.5A | 2.5A | 2.5V (Max) | 30 mA | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8220DB-D-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
5,721 | 3.62 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 2500Vrms | 30kV/µs (Typ) | 60ns, 40ns | - | 20ns, 20ns (Max) | 1.5A, 2.5A | 2.5A | 2.5V (Max) | 30 mA | 14.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
ACPL-K33T-500EOPTOISO 5KV 1CH GATE DVR 8SO |
6,916 | 5.88 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 120ns | 40ns | 15ns, 15ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched | CSA, UR |
|

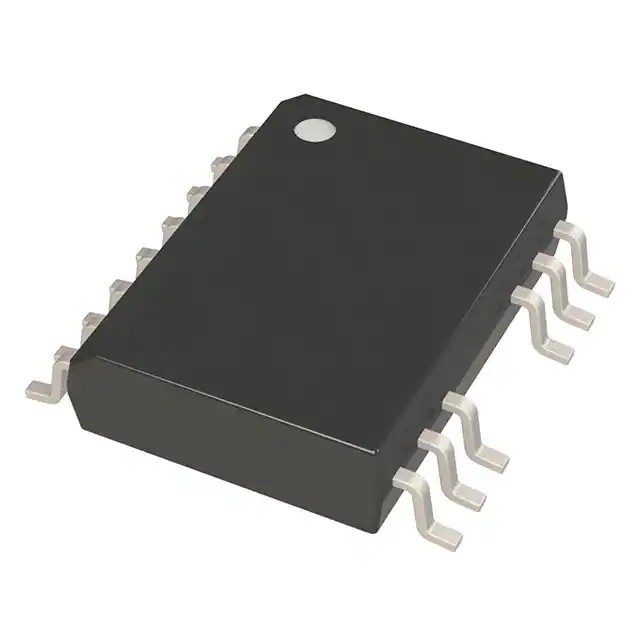

UCC21320QDWKRQ1DGT ISO 3.75KV 2CH GT DVR 14SOIC |
2,082 | 5.57 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3750Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | 4A, 6A | - | - | 9.2V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, UL, VDE |
|
ISO5852SDWRDGTL ISO 5.7KV 1CH GT DVR 16SOIC |
1,687 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 100kV/µs | 110ns, 110ns | - | 18ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
HCPL-3120OPTOISO 3.75KV 1CH GATE DVR 8DIP |
1,095 | 4.93 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, UR |
|
|
SI8271GB-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
2,441 | 3.93 |
|
Datasheet |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
1ED3431MC12MXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
1,494 | 6.39 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200V/ns | 270ns, 262ns | - | 15ns, 15ns | 3A, 3A | 3A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|
1ED3461MU12MXUMA1DIGITAL ISO 1CH GT DVR DSO16-28 |
1,970 | 6.52 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 15ns, 15ns | - | 6A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|
|
ISO5452DWRDGTL ISO 5.7KV 1CH GT DVR 16SOIC |
2,743 | 5.88 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 50kV/µs | 110ns, 110ns | - | 18ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
TPSI3052DWZRDGTL ISO 3KV 1CH GATE DVR 8SOIC |
1,464 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100V/ns | - | - | - | 1.5A, 3A | 1.5A, 3A | - | 37 mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | UL, VDE |
|
ACPL-W346-500EOPTOISO 5KV 1CH GATE DRIVER 6SO |
3,409 | 5.34 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
SI8274GB1-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
9,558 | 5.53 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
1ED3461MC12MXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
1,165 | 6.72 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200V/ns | 270ns, 262ns | - | 15ns, 15ns | 6A, 6A | 6A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|
|
SI8238BB-D-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
12,664 | 5.53 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8233BB-D-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
7,636 | 5.53 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
