Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SID1181KQDGT ISO 5KV 1CH GT DVR ESOP-R16B |
2,017 | 8.47 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 340ns, 330ns | - | 465ns, 460ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | CSA, UL, VDE |
|
SI823H1BB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
141 | 6.56 |
|
Datasheet |
Si823Hx | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 7V ~ 8.2V | - | - | -40°C ~ 125°C (TA) | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H2BB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
139 | 6.56 |
|
Datasheet |
Si823Hx | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 7V ~ 8.2V | - | - | -40°C ~ 125°C (TA) | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
ADUM3221WBRZDGTL ISO 2.5KV 2CH GT DVR 8SOIC |
3,929 | 3.95 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 7.6V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|

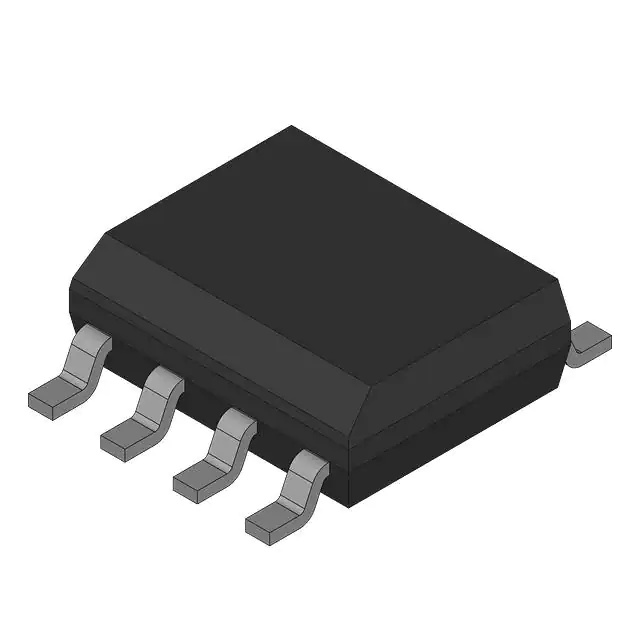

ADUM3220WARZDGTL ISO 2.5KV 2CH GT DVR 8SOIC |
4,123 | 3.95 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
SID1132KQ-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B |
1,000 | 8.71 |
|
- |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 450ns, 450ns | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
|
SID1132KQDGT ISO 5KV 1CH GT DVR ESOP-R16B |
220 | 8.71 |
|
- |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 450ns, 450ns | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
NCV57253DWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC |
947 | 7.13 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 80ns, 80ns | 20ns | 12ns, 10ns | 6.5A, 3.5A, 6.5A, 3.5A | 6.5A, 3.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
ADUM4121-1CRIZDGTL ISO 5KV 1CH GATE DVR 8SOIC |
1,441 | 7.24 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
SI8284BC-ISRDGTL ISO 5KV 1CH GATE DVR 24SOIC |
1,250 | 8.78 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 2.8V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
ADUM4223WBRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
5,124 | 9.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM4223WCRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
2,583 | 1.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 11.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
SI823H3BD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC |
196 | 7.19 |
|
Datasheet |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 116ns, 116ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
ADUM4122ARIZDGTL ISO 5KV 1CH GATE DVR 8SOIC |
154 | 7.85 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 40ns, 48ns | 30ns | 17ns, 17ns | 3A, 3A | 2A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CQC, CSA, UL, VDE |
|
|
ADUM4122CRIZDGTL ISO 5KV 1CH GATE DVR 8SOIC |
123 | 7.85 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 40ns, 48ns | 30ns | 17ns, 17ns | 3A, 3A | 2A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CQC, CSA, UL, VDE |
|
|
SID1182KQ-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B |
970 | 0.00 |
|
- |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 150ns, 150ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
|
SID1182KQDGT ISO 5KV 1CH GT DVR ESOP-R16B |
143 | 392.00 |
|
- |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 150ns, 150ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
|
ADUM4136BRWZ-RLDGTL ISO 5KV 1CH GATE DVR 16SOIC |
859 | 7.09 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 100kV/µs | 68ns, 68ns | - | 16ns, 16ns | - | 4A | - | - | 12V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM4224WARWZ-RLDGTL ISO 5KV 2CH GATE DVR 16SOIC |
1,917 | 8.10 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5000Vrms | 25kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
ADUM4224WARWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
171 | 8.10 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 25kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
