Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1ED3121MC12HXUMA1DIGITAL ISO 8KV 1CH GT DVR DSO8 |
2,192 | 3.35 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 8000Vpk | 200kV/µs | 100ns, 100ns | - | 30ns, 30ns (Max) | 5.5A, 5.5A | 5.5A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8 | UL, VDE |
|
1ED3122MU12HXUMA1DGT ISO 1.2KV 1CH GT DVR DSO8-66 |
2,103 | 3.44 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1200Vrms | 200kV/µs | - | - | 15ns, 15ns | 5.5A, 5.5A | 10A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL |
|
HCPL-3140-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
3,745 | 2.86 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, UR |
|
|
1ED3122MC12HXUMA1DGTL ISO 8KV 1CH GT DVR DSO8-66 |
215 | 3.64 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 8000Vpk | 200kV/µs | 100ns, 100ns | - | 30ns, 30ns (Max) | 10A, 9A | 10A, 9A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL, VDE |
|
|
SI8752AB-ISRDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
907 | 3.17 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 2500Vrms | 20kV/µs | - | - | - | - | - | - | - | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
UCC5390ECQDWVRQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC |
665 | 3.32 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 120kV/µs | 60ns, 60ns | 20ns | 10ns, 10ns | 17A, 17A | 10A | - | - | 13.2V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
ACPL-P340-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
2,392 | 3.15 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
1ED3124MU12HXUMA1DGT ISO 1.2KV 1CH GT DVR DSO8-66 |
1,476 | 3.80 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1200Vrms | 200kV/µs | - | - | 15ns, 15ns | 5.5A, 5.5A | 14A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL |
|
|
1ED3123MU12HXUMA1DGT ISO 1.2KV 1CH GT DVR DSO8-66 |
952 | 3.80 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1200Vrms | 200kV/µs | - | - | 15ns, 15ns | 5.5A, 5.5A | 14A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL |
|
|
ACPL-P302-000EOPTOISO 3.75KV 1CH GATE DVR 6SO |
5,379 | 3.19 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO | CSA, UR |
|
UCC21551CQDWKRQ1UCC21551CQDWKRQ1 |
1,839 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 6ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 13.5V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
FOD8342OPTOISO 5KV 1CH GATE DVR 6SOP |
1,016 | 3.40 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UR |
|
|
ACPL-P340-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
12,018 | 3.84 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
1ED3124MC12HXUMA1DIGITAL ISO 8KV 1CH GT DVR DSO8 |
425 | 4.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 8000Vpk | 200kV/µs | 100ns, 100ns | - | 30ns, 30ns (Max) | 13.5A, 14A | 13.5A, 14A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8 | UL, VDE |
|
|
ACPL-P314-000EOPTOISO 3.75KV 1CH GATE DVR 6SO |
3,544 | 3.39 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO | CSA, UR |
|
|
1ED3322MC12NXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
1,085 | 6.16 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 300kV/µs | 84ns, 92ns | - | 15ns, 15ns | 6A, 8.5A | 9A, 9A | - | - | 40V | - | - | -40°C ~ 125°C (TA) | Surface Mount | PG-DSO-16-40 | UL |
|
|
1ED3323MC12NXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
1,026 | 5.79 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 300kV/µs | 84ns, 92ns | - | 15ns, 15ns | 6A, 8.5A | 9A, 9A | - | - | 40V | - | - | -40°C ~ 125°C (TA) | Surface Mount | PG-DSO-16-40 | UL |
|

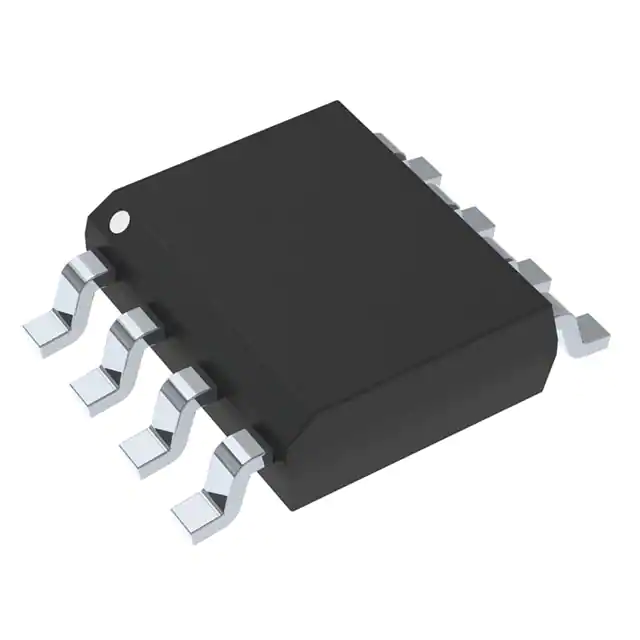

NCD57080CDR2GDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
4,120 | 5.10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 85ns, 85ns | - | 13ns, 13ns | 8A, 8A | 8A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | - |
|
SI8261AAC-C-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
19,911 | 3.06 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 400mA, 600mA | 600mA | 2.8V (Max) | 30 mA | 6.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
ACPL-P341-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
3,147 | 3.48 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 2.5A, 2.5A | 3A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
