LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-11-27-95-36-TS31-F4-3SMOOTH WHITE SERIES |
3,066 | 0.00 |
|
Datasheet |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1615lm (Typ) | 450mA | 85°C | 33.5V | 107 lm/W | 900mA | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.70mm Dia | Flat |
|
|
BXEB-L1190U-30G3000-C-C3LED MOD EB SER WH LNR STR 3000K |
3,021 | 8.33 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4390lm (Typ) | 700mA | 25°C | 38.2V | 164 lm/W | 1.7A | 90 | 120° | With Connector | 1190.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
BXEB-L1190U-27G3000-C-C3LED MOD EB SER WH LNR STRP 2700K |
4,909 | 8.33 |
|
- |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4160lm (Typ) | 700mA | 25°C | 38.2V | 155 lm/W | 1.7A | 90 | 120° | With Connector | 1190.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
CGM-22-35-80-54-TC60-F7-3CGM-22-35-80-54-TC60-F7-3 |
2,480 | 0.00 |
|
Datasheet |
CGM-22 Gen6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 13940lm (Typ) | 1.6A | 85°C | 50.4V | 173 lm/W | 3.6A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CXA2520-0000-000N00Q430FLED COB XLAMP WARM WHT SQU 3000K |
4,676 | 8.82 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0UN427FLED COB XLAMP WARM WHT SQU 2700K |
2,942 | 7.50 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 550mA | 85°C | 36V | 89 lm/W | 1.25A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0UP230FLED COB XLAMP WARM WHT SQU 3000K |
3,681 | 7.50 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 550mA | 85°C | 36V | 96 lm/W | 1.25A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0YN427GLED COB XLAMP WARM WHT SQU 2700K |
4,577 | 7.50 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 550mA | 85°C | 36V | 89 lm/W | 1.25A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0YP230GLED COB XLAMP WARM WHT SQ 3000K |
2,846 | 7.50 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 550mA | 85°C | 36V | 96 lm/W | 1.25A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0YP435GLED COB XLAMP WARM WHT SQU 3500K |
3,498 | 7.50 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 550mA | 85°C | 36V | 103 lm/W | 1.25A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|

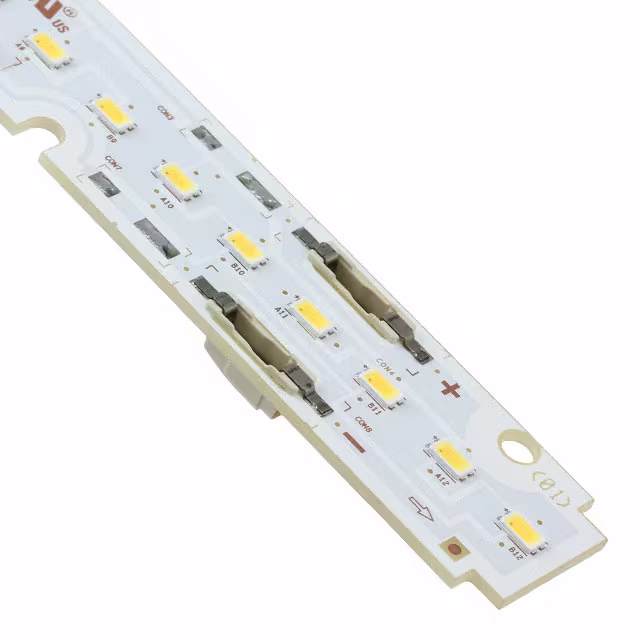

SI-B8V07228LWWLED MOD LT-S282L LNR STRP 3000K |
3,955 | 9.18 |
|
Datasheet |
LT-S282L | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1080lm (Typ) | 200mA | 50°C | 35.2V | 153 lm/W | 360mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 7.40mm | - | Flat |
|
|
CMB1840-0000-000N0Z0A40HLED COB XLAMP NEUT WHT SQU 4000K |
4,279 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4505lm | 1.1A | 85°C | 34.4V | 119 lm/W | 2.4A | 95 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
CMB1840-0000-000N0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
4,531 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4481lm | 1.1A | 85°C | 34.4V | 118 lm/W | 2.4A | 95 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
CMB1840-0000-000N0Z0A27HLED COB XLAMP WARM WHT SQU 2700K |
4,820 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4142lm | 1.1A | 85°C | 34.4V | 109 lm/W | 2.4A | 95 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
CXA2540-0000-000N0HV450FLED COB XLAMP COOL WHT SQU 5000K |
1,507 | 7.53 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0HV240FLED COB XLAMP NEUT WHT SQU 4000K |
4,075 | 7.53 |
|
Datasheet |
XLamp® CXA2540 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.1A | 85°C | 37V | 108 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N00V440FLED COB XLAMP NEUT WHT SQU 4000K |
2,853 | 7.53 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0HV457FLED COB XLAMP COOL WHT SQU 5700K |
1,043 | 7.53 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0HV465FLED COB XLAMP COOL WHT SQU 6500K |
3,655 | 7.53 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
SI-B8V463B20WWLED MOD V GEN3 WH LNR STR 3000K |
2,148 | 15.22 |
|
Datasheet |
V Gen3 | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 7570lm (Typ) | 1.01A | 65°C | 45V | 166 lm/W | 2.02A | 80 | 118° | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
