LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2530-0000-000N0YQ435FLED COB XLAMP WARM WHT SQU 3500K |
3,291 | 8.98 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 800mA | 85°C | 37V | 79 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2530-0000-000N0YR20E6LED COB XLAMP WARM WHT SQ 3500K |
3,042 | 8.98 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 2510lm (2420lm ~ 2600lm) | 800mA | 85°C | 37V | 85 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
OV4ZGGGGLED MOD OPTIMAL IV GRN STARBRD |
4,339 | 0.00 |
|
Datasheet |
Optimal IV Star | Tube | Obsolete | LED Module | Green | - | 532nm | Starboard | 173lm (Typ) | 350mA | 25°C | 13.1V | 38 lm/W | 700mA | - | - | - | 21.00mm Dia | 5.00mm | - | Domed |
|
|
CMU2236-R040-000N0U0A27GLED COB XLAMP WARM WHT SQU 2700K |
3,569 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4530lm (Typ) | 990mA | 85°C | 33.7V | 137 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A57GLED COB XLAMP COOL WHT SQU 5700K |
3,829 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 4945lm (Typ) | 990mA | 85°C | 33.7V | 150 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A50GLED COB XLAMP COOL WHT SQU 5000K |
3,437 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4808lm (Typ) | 990mA | 85°C | 33.7V | 146 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
4,697 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4777lm (Typ) | 990mA | 85°C | 33.7V | 145 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
4,178 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4712lm (Typ) | 990mA | 85°C | 33.7V | 143 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,798 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4782lm (Typ) | 990mA | 85°C | 33.7V | 145 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A27HLED COB XLAMP WARM WHT SQU 2700K |
3,456 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3693lm | 800mA | 85°C | 35V | 132 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A35HLED COB XLAMP WARM WHT SQU 3500K |
2,887 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3199lm | 800mA | 85°C | 35V | 114 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A40HLED COB XLAMP NEUT WHT SQU 4000K |
3,068 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3922lm | 800mA | 85°C | 35V | 140 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A30HLED COB XLAMP WARM WHT SQU 3000K |
1,677 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3817lm | 800mA | 85°C | 35V | 136 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A30QLED COB XLAMP WARM WHT SQ 3000K |
2,184 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3817lm | 800mA | 85°C | 35V | 136 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A30ULED COB XLAMP WARM WHT SQ 3000K |
4,889 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3817lm | 800mA | 85°C | 35V | 136 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2530-0000-00PN0U0A31QLED COB XLAMP WARM WHT SQ 3100K |
4,893 | 0.00 |
|
Datasheet |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 3777lm | 800mA | 85°C | 35V | 135 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|

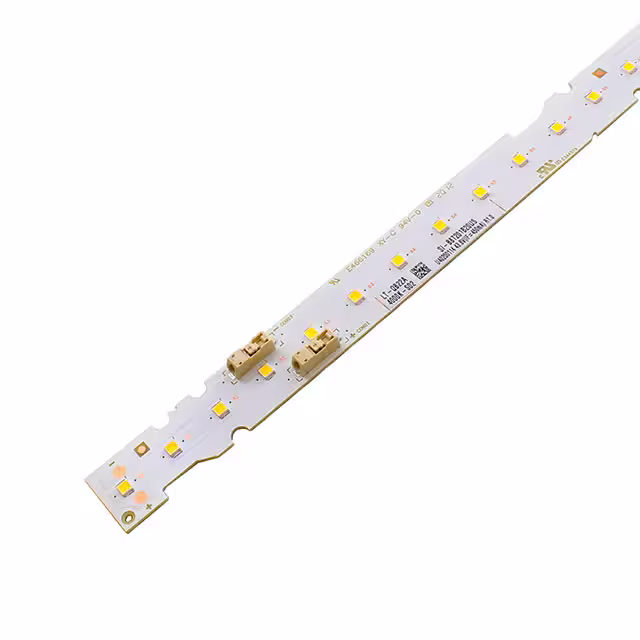

SI-B8T201B20USLED ENG LT-QB22A LNR STRP 4000K |
4,801 | 20.79 |
|
Datasheet |
LT-QB22A | Tray | Active | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | 4000lm (Typ) | 450mA | 40°C | 43.8V | 203 lm/W | - | 80 | - | - | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
|
L2C5-27951210F1500LED COB LUXEON WM WHT RECT 2700K |
4,324 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 3384lm (Typ) | 900mA | 85°C | 34V | 111 lm/W | 1.8A | 95 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 15.00mm Dia | Flat |
|
|
CMT1945-0000-000N0U0A35HLED COB XLAMP WARM WHT SQU 3500K |
2,218 | 0.00 |
|
Datasheet |
XLamp® CMT1945 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5047lm (Typ) | 1.2A | 85°C | 34.7V | 58 lm/W | 2.5A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
|
|
CMT1945-0000-000N0H0A30HLED COB XLAMP WARM WHT SQU 3000K |
1,118 | 0.00 |
|
Datasheet |
XLamp® CMT1945 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5710lm (Typ) | 1.2A | 85°C | 34.7V | 66 lm/W | 2.5A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
