LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLM-22-27-80-36-AC30-F4-3LED COB CLM-22 GEN3 WHT SQ 2700K |
4,019 | 17.34 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5440lm (Typ) | 1.1A | 85°C | 33.8V | 146 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-40-70-36-AC30-F4-3LED COB CLM-22 GEN3 WHT SQ 4000K |
1,504 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6435lm (Typ) | 1.1A | 85°C | 33.8V | 173 lm/W | 2.4A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|

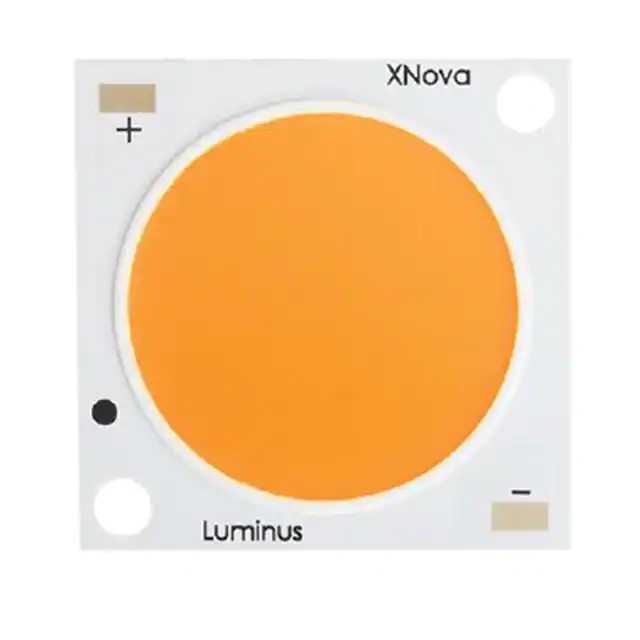

CLM-22-40-80-36-AC30-F4-3LED COB CLM-22 GEN3 WHT SQ 4000K |
2,465 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6000lm (Typ) | 1.1A | 85°C | 33.8V | 161 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-40-90-36-AC30-F4-3LED COB CLM-22 GEN3 WHT SQ 4000K |
2,813 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5205lm (Typ) | 1.1A | 85°C | 33.8V | 140 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-50-70-36-AC30-F4-5LED COB CLM-22 GEN3 WHT SQ 5000K |
1,669 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 6540lm (Typ) | 1.1A | 85°C | 33.8V | 176 lm/W | 2.4A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-50-80-36-AC30-F4-5LED COB CLM-22 GEN3 WHT SQ 5000K |
2,907 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 6040lm (Typ) | 1.1A | 85°C | 33.8V | 162 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-50-90-36-AC30-F4-5LED COB CLM-22 GEN3 WHT SQ 5000K |
4,531 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 5230lm (Typ) | 1.1A | 85°C | 33.8V | 141 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-65-70-36-AC30-F4-5LED COB CLM-22 GEN3 WHT SQ 6500K |
4,932 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 6550lm (Typ) | 1.1A | 85°C | 33.8V | 176 lm/W | 2.4A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CLM-22-65-80-36-AC30-F4-5LED COB CLM-22 GEN3 WHT SQ 6500K |
2,069 | 10.99 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 6020lm (Typ) | 1.1A | 85°C | 33.8V | 162 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CXM-22-50-70-36-AC10-F3-3LED COB CXM-22 GEN 2 WH SQ 5000K |
2,547 | 10.99 |
|
Datasheet |
CXM-22 Gen 2 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6825lm (Typ) | 1.28A | 85°C | 34V | 157 lm/W | 2.56A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-50-80-36-AC10-F3-3LED COB CXM-22 GEN 2 WH SQ 5000K |
1,530 | 10.99 |
|
Datasheet |
CXM-22 Gen 2 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6495lm (Typ) | 1.28A | 85°C | 34V | 149 lm/W | 2.56A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-65-70-36-AC10-F3-3LED COB CXM-22 GEN 2 WH SQ 6500K |
3,008 | 10.99 |
|
Datasheet |
CXM-22 Gen 2 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6800lm (Typ) | 1.28A | 85°C | 34V | 156 lm/W | 2.56A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-65-80-36-AC10-F3-3LED COB CXM-22 GEN 2 WH SQ 6500K |
1,450 | 10.99 |
|
Datasheet |
CXM-22 Gen 2 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6475lm (Typ) | 1.28A | 85°C | 34V | 149 lm/W | 2.56A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CMA1840-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,225 | 11.25 |
|
Datasheet |
XLamp® CMA1840 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5147lm (Typ) | 1.1A | 85°C | 34.7V | 135 lm/W | 1.26A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CMA1840-0000-00PN0U0A27GLED COB XLAMP WARM WHT SQU 2700K |
4,779 | 0.00 |
|
- |
XLamp® CMA1840 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 1.1A | 85°C | 34.7V | - | 2.3A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CMA1840-0000-00PN0U0A50GLED COB XLAMP COOL WHT SQU 5000K |
3,219 | 0.00 |
|
- |
XLamp® CMA1840 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | - | 1.1A | 85°C | 34.7V | - | 2.3A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CMA1840-0000-00PN0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
4,759 | 0.00 |
|
- |
XLamp® CMA1840 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | 1.1A | 85°C | 34.7V | - | 2.3A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CLM-22-50-95-36-AC40-F5-3GENERATION 4 STANDARD COB PRODUC |
1,140 | 0.00 |
|
Datasheet |
CLM-22 Gen4 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4715lm (Typ) | 1.05A | 85°C | 33.5V | 134 lm/W | 3.5A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CMU2236-0000-000N0Z0A35HLED COB XLAMP WARM WHT SQU 3000K |
2,423 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4410lm (Typ) | 990mA | 85°C | 33.7V | 132 lm/W | 2.64A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-0000-000N0Z0A27HLED COB XLAMP WARM WHT SQU 3000K |
3,697 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4076lm (Typ) | 990mA | 85°C | 33.7V | 122 lm/W | 2.64A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
