LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2540-0000-000N0UU440HLED COB XLAMP NEUT WHT SQU 4000K |
3,234 | 10.06 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.1A | 85°C | 37V | 101 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0UV250HLED COB XLAMP COOL WHT SQU 5000K |
3,230 | 10.06 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.1A | 85°C | 37V | 108 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YT427HLED COB XLAMP WARM WHT SQU 2700K |
1,447 | 10.06 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 37V | 88 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CMB1825-R096-00PN0Z0AL7CXLAMP CMB LED WHITE PRO9 |
4,546 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | - | - | - | Square | - | 700mA | 85°C | 34V | - | 1.8A | 95 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YT235FLED COB XLAMP WARM WHT SQU 3500K |
1,390 | 10.08 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 3320lm (3220lm ~ 3440lm) | 1.1A | 85°C | 37V | 82 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0YT435FLED COB XLAMP WARM WHT SQU 3500K |
4,312 | 10.08 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 37V | 87 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMU1532-R090-00PN0Z0A27HXLAMP CMU LED WHITE PRO9 |
4,391 | 0.00 |
|
Datasheet |
XLamp® CMU1532 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | - | 900mA | 85°C | 33.7V | - | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1532-R090-00PN0Z0A30HXLAMP CMU LED WHITE PRO9 |
4,018 | 0.00 |
|
Datasheet |
XLamp® CMU1532 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 900mA | 85°C | 33.7V | - | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1532-R090-00PN0Z0A40HXLAMP CMU LED WHITE PRO9 |
1,918 | 0.00 |
|
Datasheet |
XLamp® CMU1532 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | - | 900mA | 85°C | 33.7V | - | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1532-R090-00PN0Z0A35HXLAMP CMU LED WHITE PRO9 |
4,535 | 0.00 |
|
Datasheet |
XLamp® CMU1532 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | - | 900mA | 85°C | 33.7V | - | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|

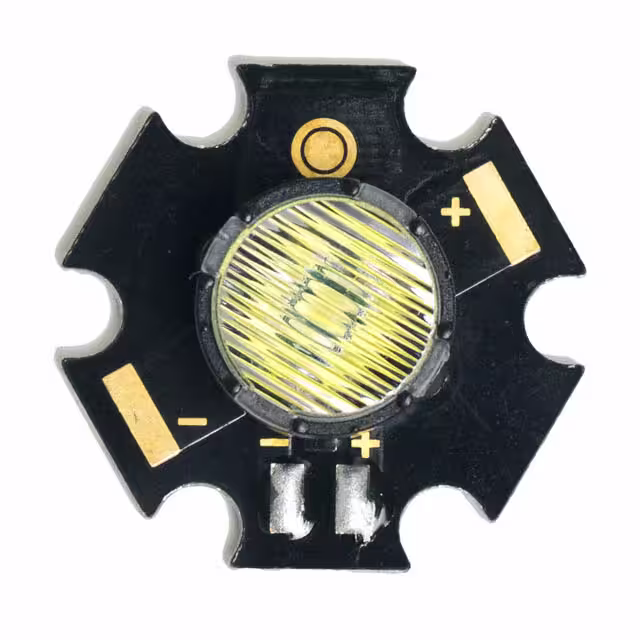

L2-PGW3-SLED MOD L2 XLAMP STARBRD 3100K |
3,921 | 0.00 |
|
Datasheet |
L2, XLamp® XP-G | Tray | Obsolete | LED Module | White, Warm | 3100K | - | Starboard | 80lm (Typ) | 350mA | 70°C | 2.95V | 77 lm/W | 1.5A | 80 | 45°, 25° | - | 19.90mm L x 19.90mm W | 8.70mm | - | Flat |
|
|
BXEB-TL-L0560Z-2765E2000-A-C3VESTA TL GEN 3 (2 SMD ROWS) LED |
1,003 | 0.00 |
|
Datasheet |
Vesta™ | Tray | Active | LED Module | White, Warm / White, Cool | 2700K, 6500K | - | Linear Light Strip | 3325lm (Typ) Warm White, 3652lm (Typ) Cool White | 1A | 25°C | 19.4V | 171 lm/W Warm White, 188 lm/W Cool White | 2A | 80 | 120° | With Connector | 560.00mm L x 31.00mm W | 5.60mm | - | Flat |
|
|
CXM-22-30-90-54-TC62-F7-3CXM-22-30-90-54-TC62-F7-3 |
4,253 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7890lm (Typ) | 1.05A | 85°C | 49.2V | 153 lm/W | 3.2A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-50-95-54-TC60-F7-3CXM-22-50-95-54-TC60-F7-3 |
1,256 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 7965lm (Typ) | 1.05A | 85°C | 49.2V | 154 lm/W | 3.2A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-40-95-54-TC60-F7-3CXM-22-40-95-54-TC60-F7-3 |
4,522 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 7595lm (Typ) | 1.05A | 85°C | 49.2V | 147 lm/W | 3.2A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-35-90-54-TC64-F7-3CXM-22-35-90-54-TC64-F7-3 |
1,842 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-22-27-95-54-TC60-F7-3CXM-22-27-95-54-TC60-F7-3 |
2,646 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 6540lm (Typ) | 1.05A | 85°C | 49.2V | 127 lm/W | 3.2A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-35-95-54-TC60-F7-3CXM-22-35-95-54-TC60-F7-3 |
2,702 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7205lm (Typ) | 1.05A | 85°C | 49.2V | 139 lm/W | 3.2A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-35-90-54-TC62-F7-3CXM-22-35-90-54-TC62-F7-3 |
4,575 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8085lm (Typ) | 1.05A | 85°C | 49.2V | 157 lm/W | 3.2A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-30-95-54-TC60-F7-3CXM-22-30-95-54-TC60-F7-3 |
1,770 | 0.00 |
|
Datasheet |
CXM-22 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6900lm (Typ) | 1.05A | 85°C | 49.2V | 134 lm/W | 3.2A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
