LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2236-R040-000N0U0A35HLED COB XLAMP WARM WHT SQU 3500K |
3,550 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4777lm (Typ) | 990mA | 85°C | 33.7V | 145 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
1,446 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 4575lm (Typ) | 990mA | 85°C | 33.7V | 139 lm/W | 2.64A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A31QLED COB XLAMP WARM WHT SQ 3100K |
3,581 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 4500lm (Typ) | 990mA | 85°C | 33.7V | 136 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A40HLED COB XLAMP NEUT WHT SQU 4000K |
4,569 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4782lm (Typ) | 990mA | 85°C | 33.7V | 145 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2236-R040-000N0U0A30QLED COB XLAMP WARM WHT SQ 3000K |
3,102 | 0.00 |
|
Datasheet |
XLamp® CMU2236 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4618lm (Typ) | 990mA | 85°C | 33.7V | 140 lm/W | 2.64A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXA2540-0000-000N0UT40E8LED COB XLAMP WARM WHT SQ 2700K |
4,801 | 10.80 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 37V | 87 lm/W | 2.1A | - | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N0UU20E7LED COB XLAMP WARM WHT SQ 3000K |
1,703 | 10.80 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | - | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N00V20E8LED COB XLAMP WARM WHT SQ 2700K |
1,112 | 10.80 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 4388lm (4230lm ~ 4545lm) | 1.1A | 85°C | 37V | 108 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2540-0000-000N00V40E6LED COB XLAMP WARM WHT SQ 3500K |
3,451 | 10.80 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA2530-0000-000N0YR227FLED COB XLAMP WARM WHT SQU 2700K |
4,919 | 10.80 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 800mA | 85°C | 37V | 85 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2530-0000-000N0YS235FLED COB XLAMP WARM WHT SQU 3500K |
1,242 | 10.80 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 2885lm (2990lm ~ 3200lm) | 800mA | 85°C | 37V | 97 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
SI-B8R14256HWWLED MOD LT-S562H LNR STRP 5000K |
2,456 | 13.91 |
|
Datasheet |
LT-S562H | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 300mA | 50°C | 46.9V | 163 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - | Flat |
|
SI-B8V14256SWWLED MOD LT-S562F LNR STRP 3000K |
3,554 | 13.91 |
|
Datasheet |
LT-S562F | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 800mA | 50°C | 17.6V | 155 lm/W | 1.44A | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - | Flat |
|
|
ML-010-07-0037MOD 120V 3"X3" 4W SQ 450LM |
1,402 | 0.00 |
|
Datasheet |
Magledium | - | Active | LED Engine | White, Warm | 3000K | - | Round | - | - | - | 120VAC | - | - | - | 120° | - | - | - | - | Flat |
|

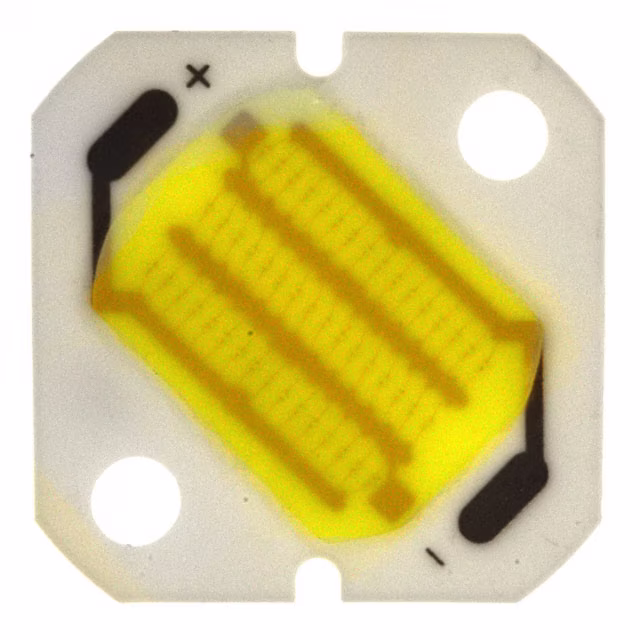

GW5BWF15L00LED MOD 7WATT ZENIGATA 5000K |
3,348 | 11.04 |
|
Datasheet |
- | Obsolete | LED Module | White, Cool | 5000K (4700K ~ 5300K) | - | Square | 540lm (Typ) | 640mA | 25°C | 10.2V | - | 700mA | - | - | - | 18.00mm L x 18.00mm W | 2.00mm | - | Flat | |
|

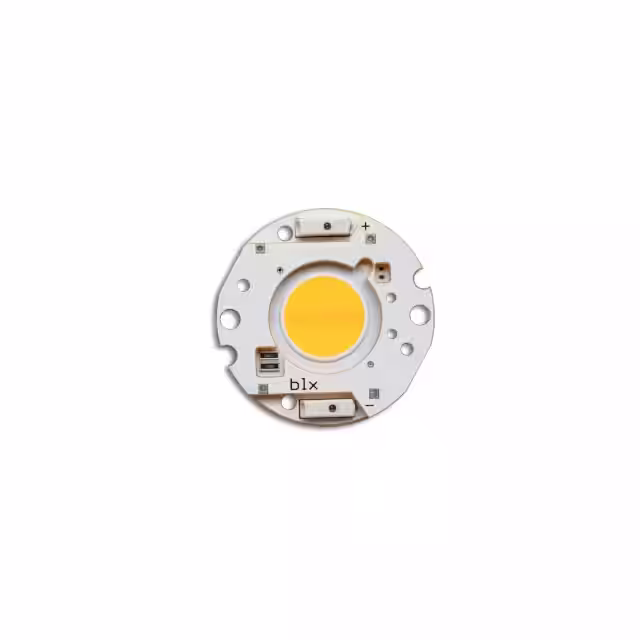

BXRV-DR-1830G-2000-A-13-S2LED COB VESTA SE WM WH RND 1800K |
3,534 | 0.00 |
|
Datasheet |
Vesta™ SE | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 2238lm (Typ) | 600mA | 25°C | 33.5V | 111 lm/W | 720mA | 90 | 110° | With Holder | 36.20mm Dia | 3.80mm | 14.00mm Dia | Flat |
|
|
SI-B8V901B20WWLED MODULES |
2,626 | 0.00 |
|
Datasheet |
K | Bulk | Last Time Buy | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 15591lm (14032lm ~ 17150lm) | 2A | 50°C | 45.1V | 173 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SI-B8T901B20WWLED MODULES |
1,529 | 0.00 |
|
Datasheet |
K | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 16223lm (14601lm ~ 17846lm) | 2A | 50°C | 45.1V | 180 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SI-B8U901B20WWLED MODULES |
2,766 | 0.00 |
|
Datasheet |
K | Bulk | Last Time Buy | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 15817lm (14235lm ~ 17398lm) | 2A | 50°C | 45.1V | 175 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SI-B8R901B20WWLED MODULES |
4,245 | 0.00 |
|
Datasheet |
K | Bulk | Last Time Buy | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 16494lm (14845lm ~ 18144lm) | 2A | 50°C | 45.1V | 183 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
